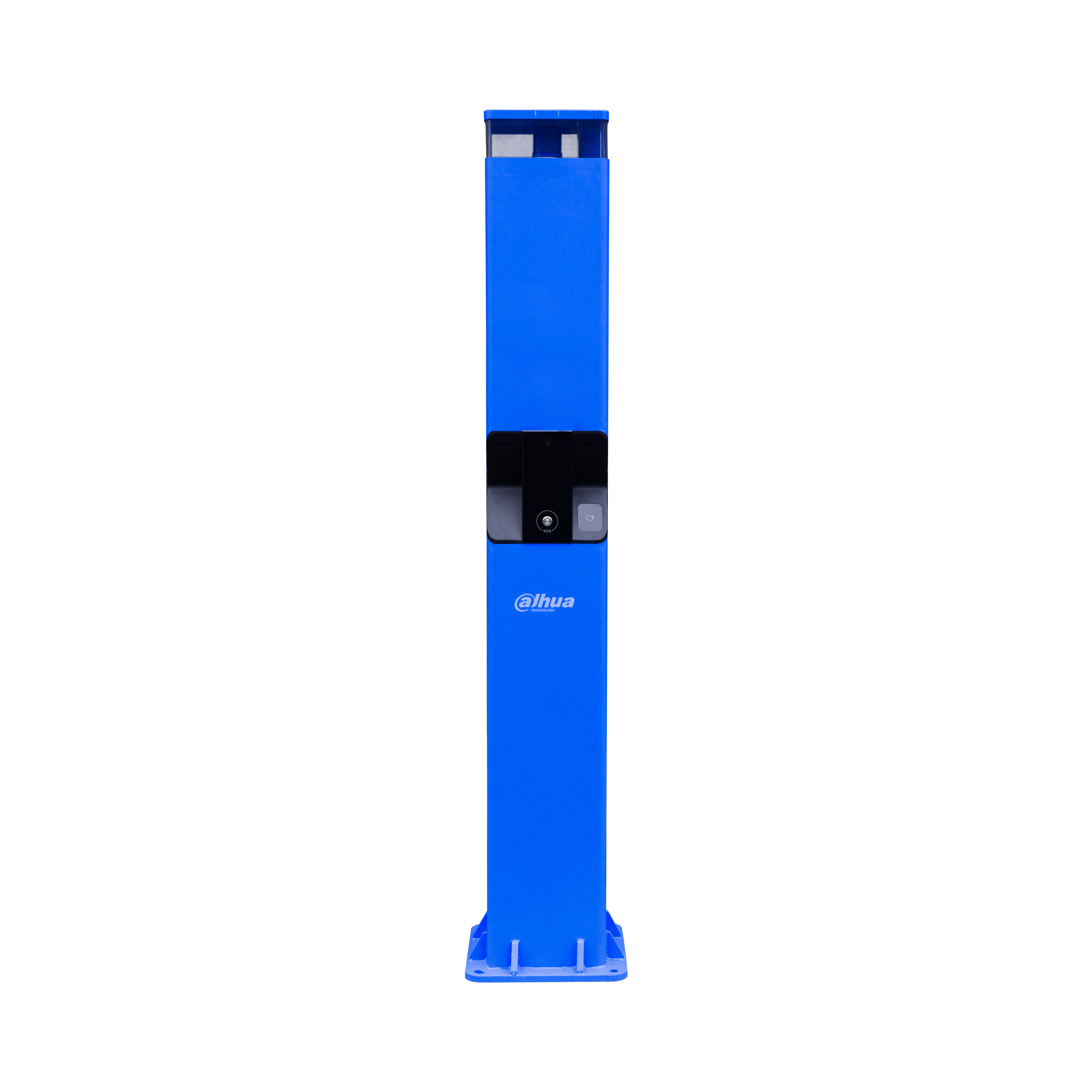

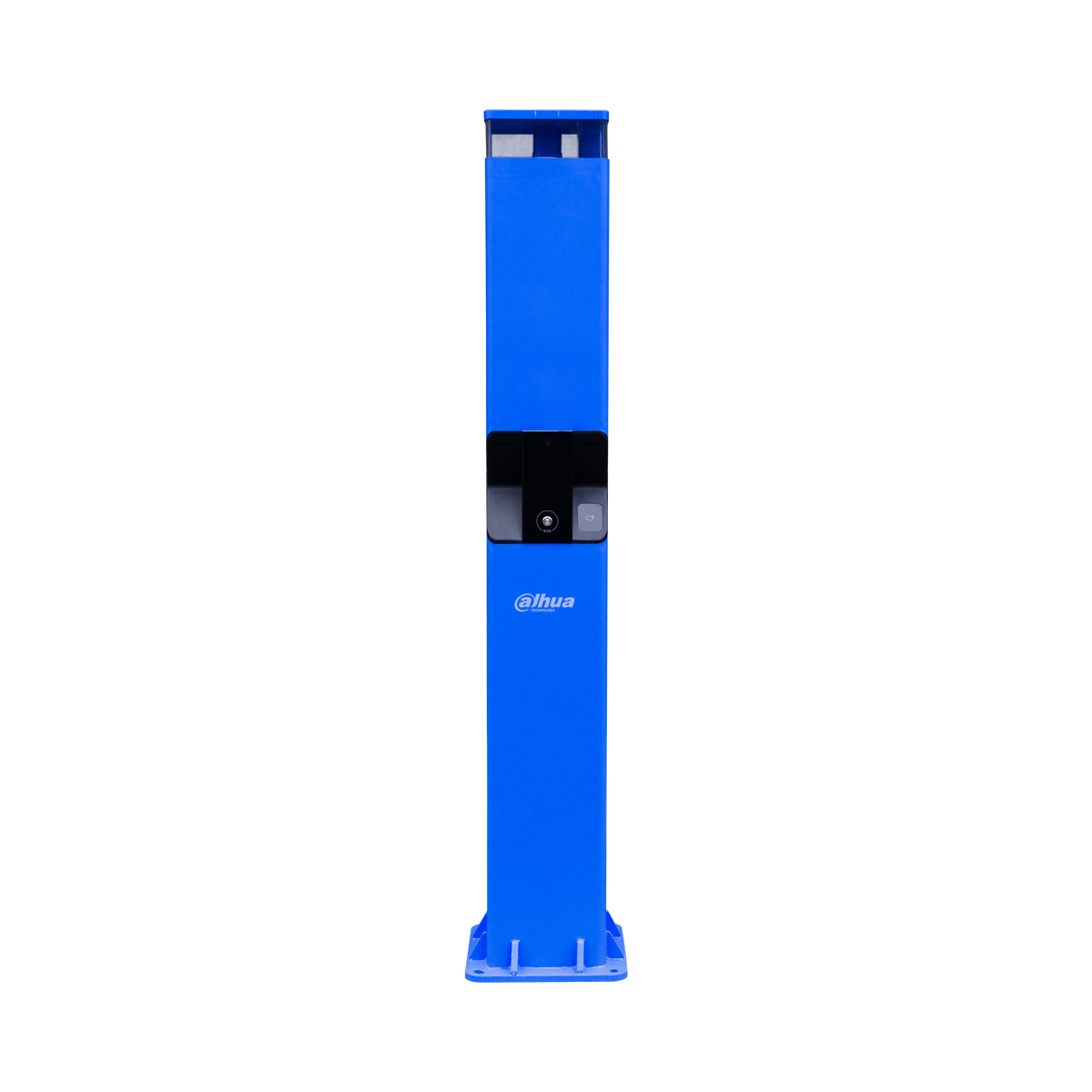

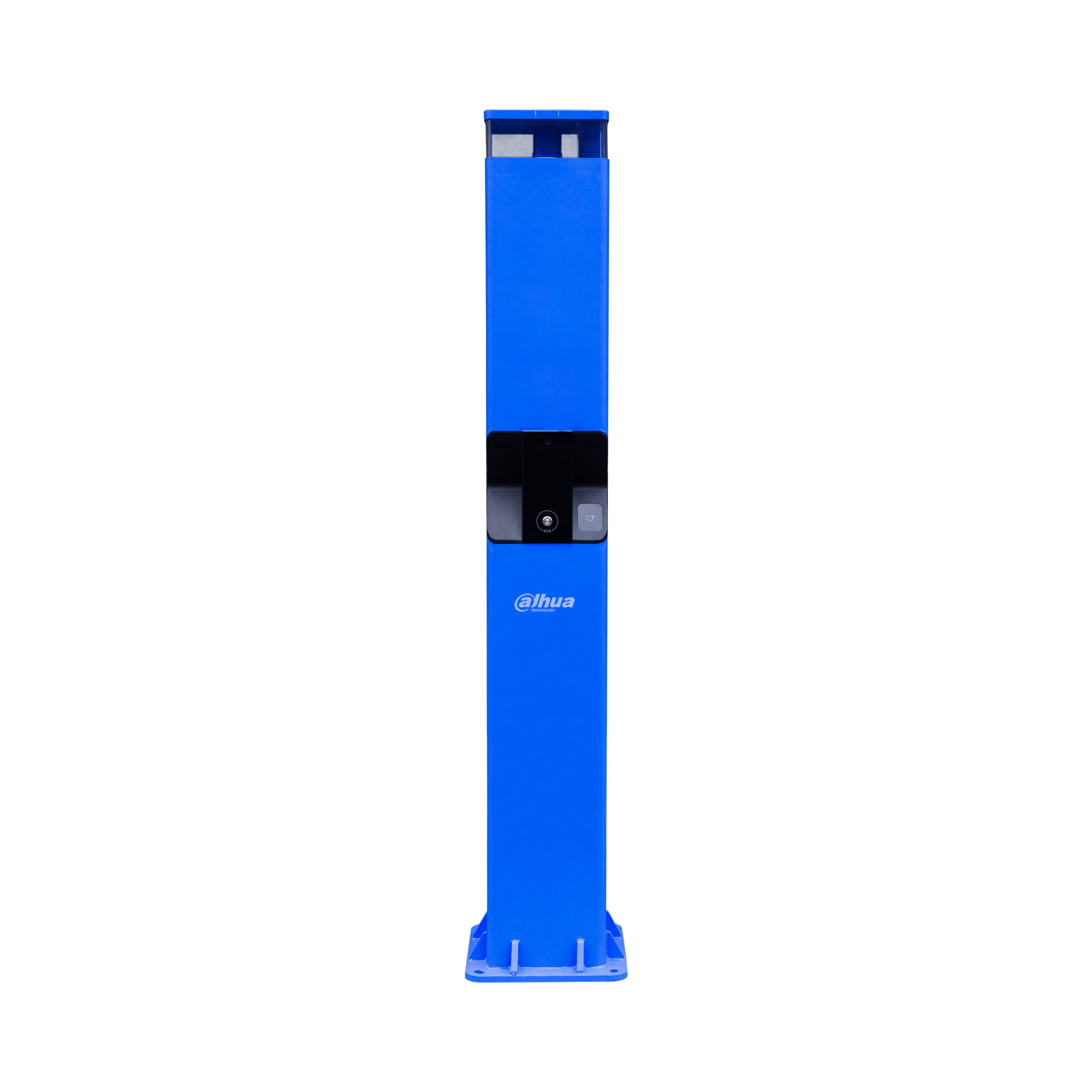

DAHUA VTA8311A Dahua Wired&Wireless Alarm Column

In stock
SKU: VTA8311A
Regular price $1,000,000.00

Estimated delivery date: 2024-04-02

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
  • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



VTA8311A

> With its 2-MP high-definition camera, the device supports video and snapshot linkage, and OSD overlay on the webpage.

> 30 W speakers and highly sensitive microphones are included.

> The 2 RJ-45 10/100 Mbps self-adaptive Ethernet ports allow alarms to be reported to 2 alarm receiving centers at the same time.

> Supports two-way voice talk and calling through the platform or management device to broadcast your voice.

> Supports being linked to alarm receiving centers. Similar to a landline telephone, the included PSTN module allows phone calls to be made.

> Supports accessing PTZ cameras, bullet cameras, and LEDs.


Product Data



Port

Alarm Input

2

Alarm Output

2

Network Port

2 × RJ–45 10/100 Mbps self-adaptive Ethernet port

Telephone Line

1 × PSTN

SIM Card Slot

Yes (4G is optional)

RS-232

1

RS-485

1 (supports accessing a dot-matrix display)

Auxiliary Power Output

1 × 12 V/1 A

SD Card Slot

1 × Micro SD card slot (maximum 256 GB)

Video & Audio

Video Compression

H.264/H.265

Audio Input

Supports 1 audio input channel with a maximum pickup distance of 5.0 m (16.40 ft)
Supports accessing an external pickup.

Audio Output

Supports 1 audio output channel with a maximum power of 30 W
Supports accessing an active speaker.

Audio Compression

G.711a/G.711U/PCM/G.726/AAC

Volume Control

Yes

Two-way Audio

Yes

Field of View

D: 105°
H: 88°
V: 44°

Resolution

704 × 480; 640 × 480; 1280 × 720; 1920 × 1080

Frame Rate

1–25 fps

Illumination Mode

IR illumination

Illumination Range

30 m (98.43 ft)

Day/Night Switch

Yes

Function

Indicator Light

2 function indicators (alarm and alarm button)

Button

1 × alarm button

External Accessories

Vertical pole

Phone Call

Yes

Video Linkage

Yes

Camera Video and Snapshot Linkage

Yes

OSD Overlay

Up to 5 lines can be added with 60 English letters in each line on webpage

Arm and Disarm

Arming/Disarming on webpage

Remote Update

Yes

Network Protocol

DHCP; UPNP; NTP

FTP Server

Yes

Tamper

2-channel door detector tamper alarm

Logs

Stores up to 10,000 logs, including alarm events and operation logs

Search for Remote Alarm Event

Yes

General

Language

English

Power Supply

110–240 VAC

Power Consumption

Idling: 20 W (without speakers)
Full load: 55 W

Operating Temperature

–30 °C to +65 °C (–22 °F to +149 °F)

Operating Humidity

93% & +40 °C (+104 °F)

Product Dimensions

2,410 mm × 340 mm × 330 mm (94.88" × 13.38" × 12.99")

Packaging Dimensions

2,667 mm × 615 mm × 715 mm (105.00" × 24.21" × 28.15")

Net Weight

95 kg (209.44 lb)

Gross Weight

110 kg (242.51 lb)

Installation

footing cage mount

Casing Material

Galvanized plate

Protection

IPX5
