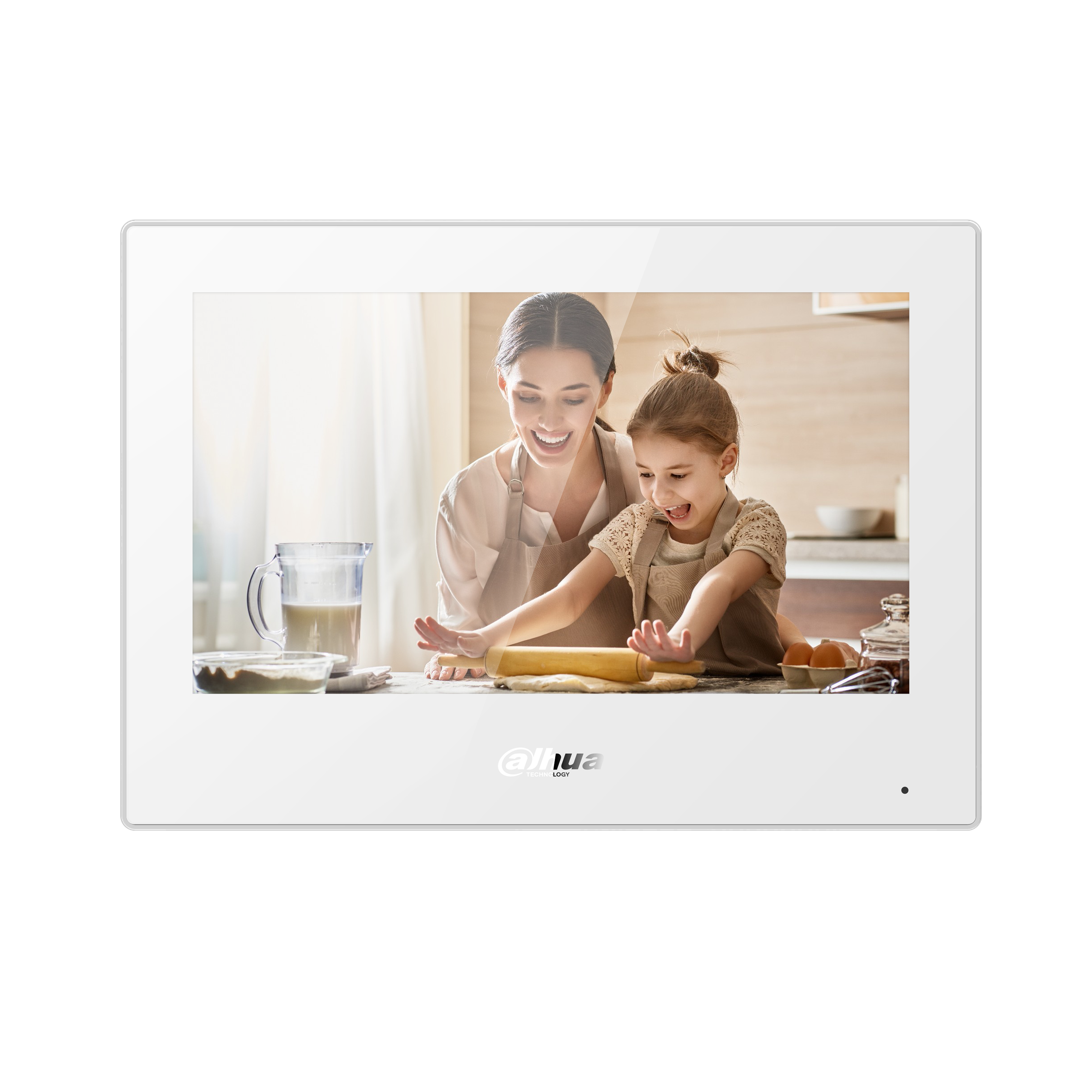

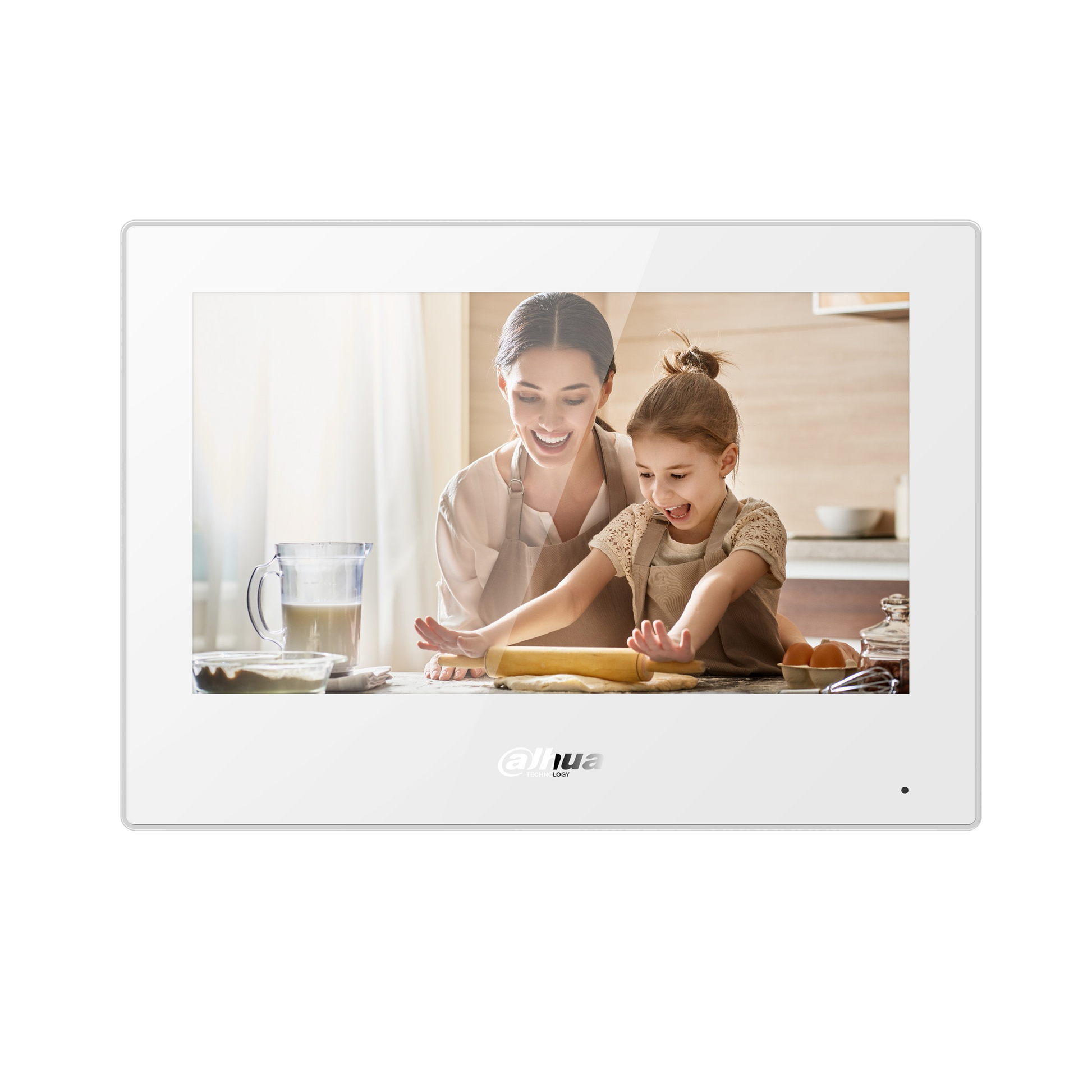

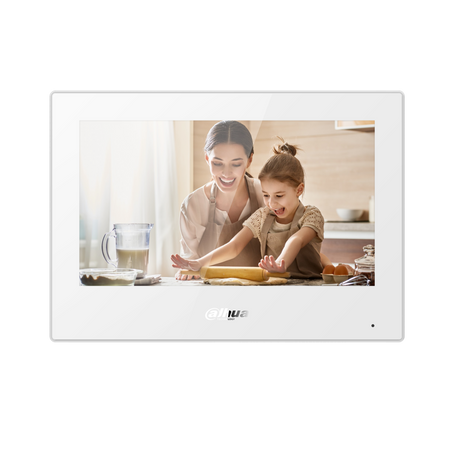

DAHUA VTH5321GB(W)-W Android 7-inch digital indoor monitor

In stock
SKU: VTH5321GB(W)-W
Regular price $1,000,000.00

Estimated delivery date: 2024-06-19

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
  • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



VTH5321GB(W)-W

Android IP Indoor Monitor

> Android 8.1

> More User-Friendly UI

> Ethernet and Wi-Fi

> 7" TFT Capacitive touch Screen,1024×600

> Quick configuration for villa system



Product Data

System

Main Processor

Embedded processor

Operating System

Android 8.1

Network Protocol

IPv4, TCP, SIP, UDP, RTSP

Basic

Screen Type

Capacitive screen

Display Screen

7 inch TFT LCD

Resolution

1024×600

Video Compression

H.264

Audio Compression

PCM

Audio Input

1 omnidirectional microphone

Audio Output

Built-in 1W speaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression/DNR

Audio Bit Rate

16KHz, 16Bit

Function

Communication Mode

Full digital

Information Release

Text announcements released by the management center can be viewed

Elevator Control

You can control the elevator through the indoor monitor

Leave Videos or Text Messages

Yes (SD card is needed)

DND Mode

Do not disturb period can be set.

Extension Number

Villa: 4 (Calls can be made among up to 3 indoor monitors when only Wi-Fi is connected.)
Apartment: 9

Wi-Fi

Yes

Wireless Standard

IEEE802.11b/802.11g/802.11n

Wireless Frequency Range

2.4GHz

Wireless Security-Encryption

64/128bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Storage

Micro SD storage, the maximum space is 256GB

Performance

Casing

PC+ABS

Port

RS-485

1

Alarm Input

8

Alarm Output

1

Power Output

1 12V/100mA

Door Bell

Yes, use alarm input port

Network

1 10M/100M Ethernet

Alarm

SOS

Yes

General

Color

White/Black

Power Supply

12V DC 1A
POE(802.3AF)

Installation

Surface mount

Certifications

CE
FCC

Accessory

Surface mount bracket, alarm ribbon cable, RS-485 cable, and power-supply pins are provided

Product Dimensions

189.6 mm × 134.6 mm × 26 mm (7.46"×5.30"×1.02")

Operating Temperature

–10°C to +55°C (+14°F to +131°F)

Operating Humidity

10%RH–95%RH (Non-condensing)

Operating Altitude

Less than 3,000 meters (9842.52 ft)

Power Consumption

≤1.5W (standby), ≤7W (working)

Net Weight

385 g (0.85 lb)

Gross Weight

490 g (1.08 lb)
