Home » DAHUA VTO7521G-S2 8 Inch Digital Outdoor Station

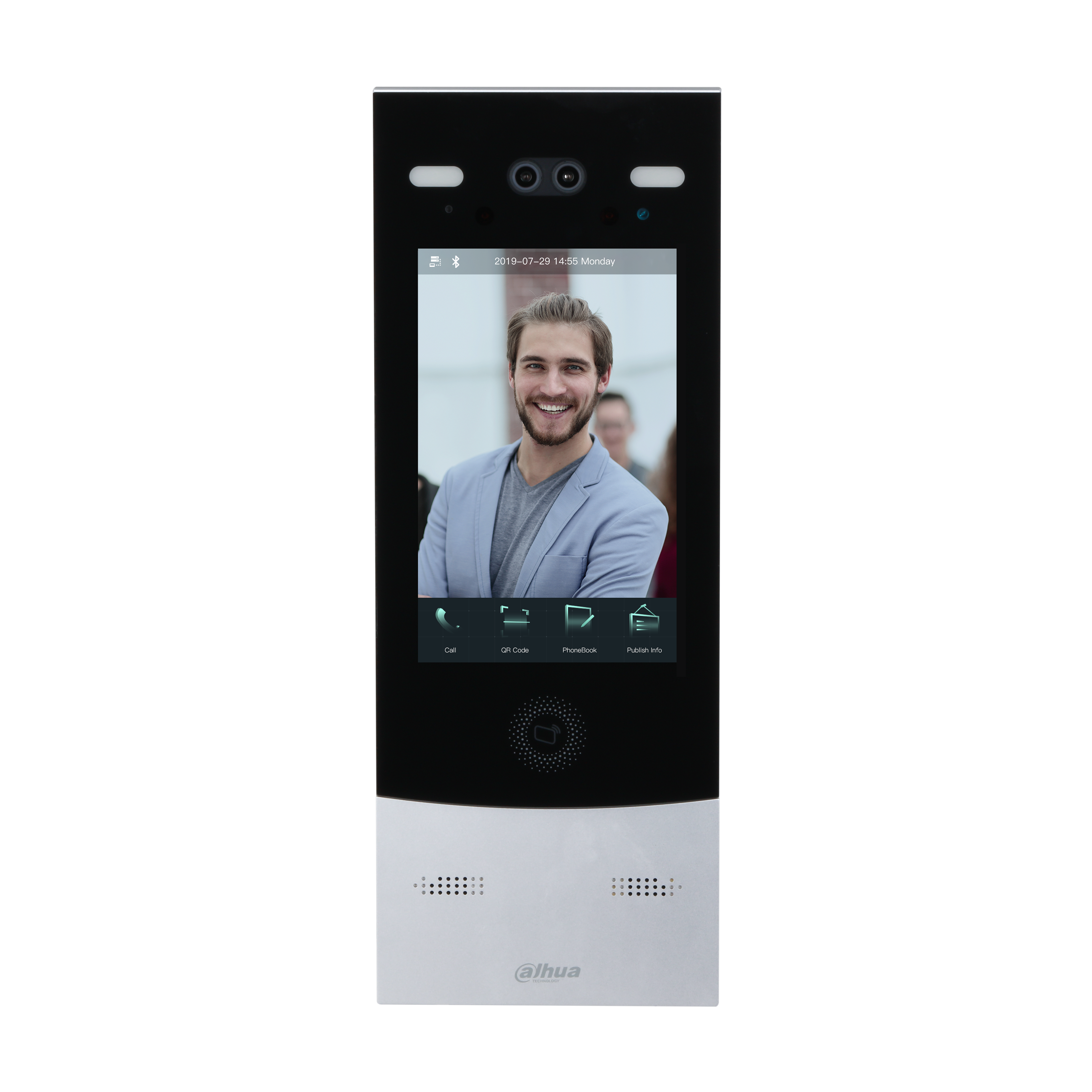

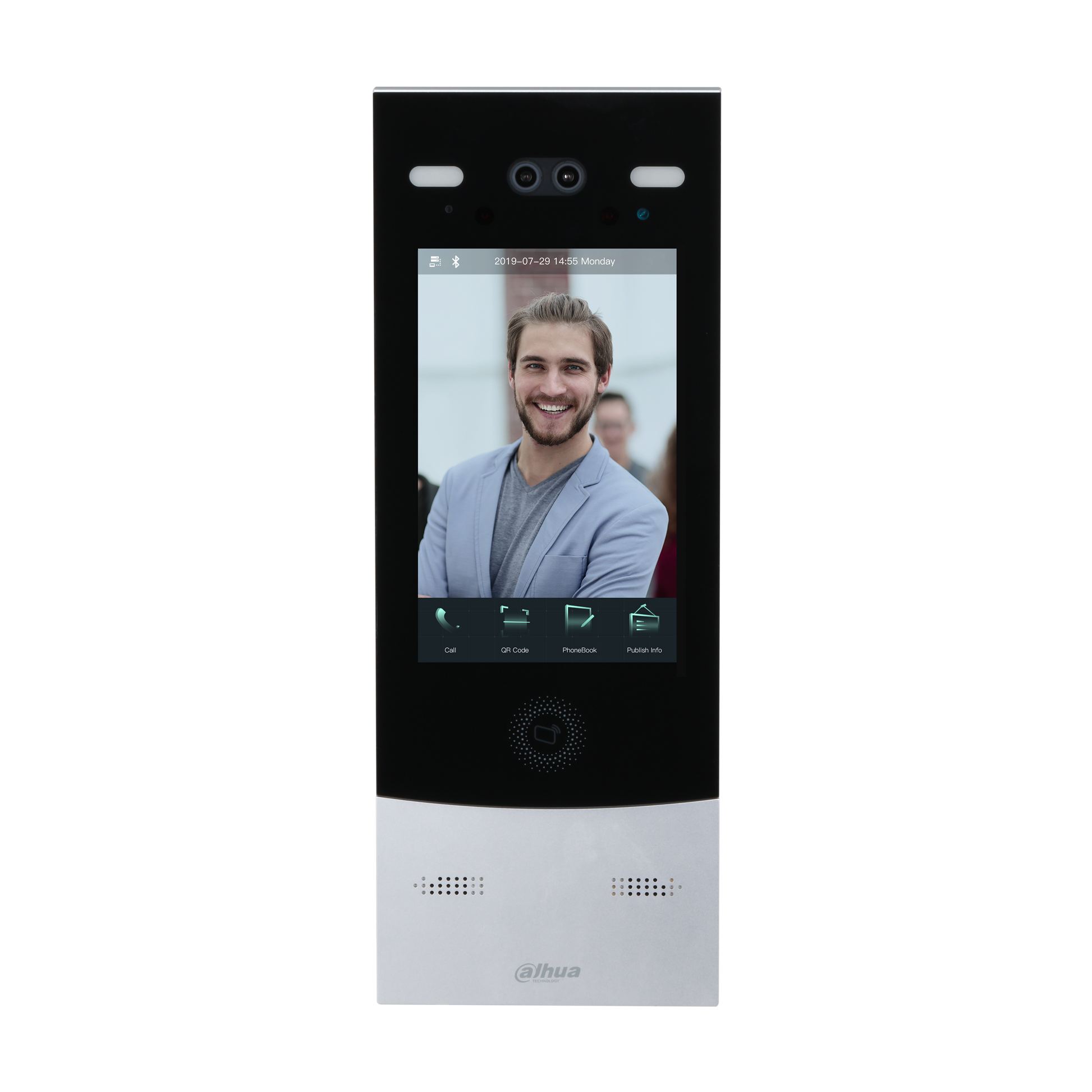

DAHUA VTO7521G 8 Inch Digital Outdoor Station
DAHUA VTO7521G 8 Inch Digital Outdoor Station
DAHUA

DAHUA VTO7521G-S2 8 Inch Digital Outdoor Station

In stock
SKU: VTO7521G
$1,000,000.00
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
    • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



VTO7521G-S2

IP Apartment Door Station

> Anodized aluminium alloy middle frame

> 8 inch capacitive touch screen and high definition IPS screen; resolution: 800 (H)×1280 (V)

> Password and card unlock

> Full duplex communication

> Outdoor stations can be managed through the platform; voice communication between mobile app and platform

> 2 MP low illuminance wide dynamic dual camera; white light fill light and IR fill light, fill light brightness can be adjusted

> Support duress alarm, tamper alarm, and fire alarm

> IK07; IP66 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)

> Surface mount and flush mount


Product Data

System

Main Processor

Embedded processor

Internet Protocol

IPv4, FTP, DNS, RTSP, RTP, TCP, UDP, SIP

Keyboard Type

Touch keyboard

Basic

Appearance

G serials

Display

High definition IPS screen

Screen Type

Capacitive touch screen

Resolution

800(H)×1280(V)

Camera

2 MP CMOS

WDR

120dB

Light Compensation

Auto white light fill light

Auto IR light fill light

Status Indicator

1, blue-operation status

Voice Prompt

Yes

Housing Material

AL+PC+ABS

Function

Unlock Mode

Remote/password/card unlock

Online Update

Yes

Full Duplex Communication

Yes

Snapshot When Unlocking Doors

Yes

Leave Photos and Messages

Yes

Web Configuration

Yes

Issue Card Locally

Yes

Auto-Registration

Yes

Performance

Card Capacity

10, 000

Port

RS-485

1

Wiegand

1

Ethernet

1 10M/100M/1000M Ethernet port

Alarm Output

2 (Dry contact)

Alarm Linkage

Yes

Power Output

1 DC 12V/100ma

Exit Button

1

Door Status Detection

1

Lock Control

1, normally on or off by default

Storage

Micro SD card (up to 64GB reserved for software )

Alarm

Tamper Alarm

Yes

Duress Alarm

Yes

Door Sensor Timeout

Yes

Regular

Ingress Protection

IP66 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)

Power Supply

Optional

Power Supply Mode

DC 12V/2A

Power Consumption

≤24.0W

Product Dimensions

389mm×145mm×43mm (15.31"×5.71"×1.69")

Packaging Dimensions

413mm×182mm×104mm (16.26"×7.17"×4.09")

Operating Temperature

-20°C to +60°C (-4°F to + 140°F)

Operating Humidity

10%RH–90%RH

Operating Altitude

86kPa to 106kPa

Gross Weight

1.91 kg (4.21 lb)

Accessory

Mount plate

Installation Method

Surface mount and flush mount

Operating Environment

Outdoor
