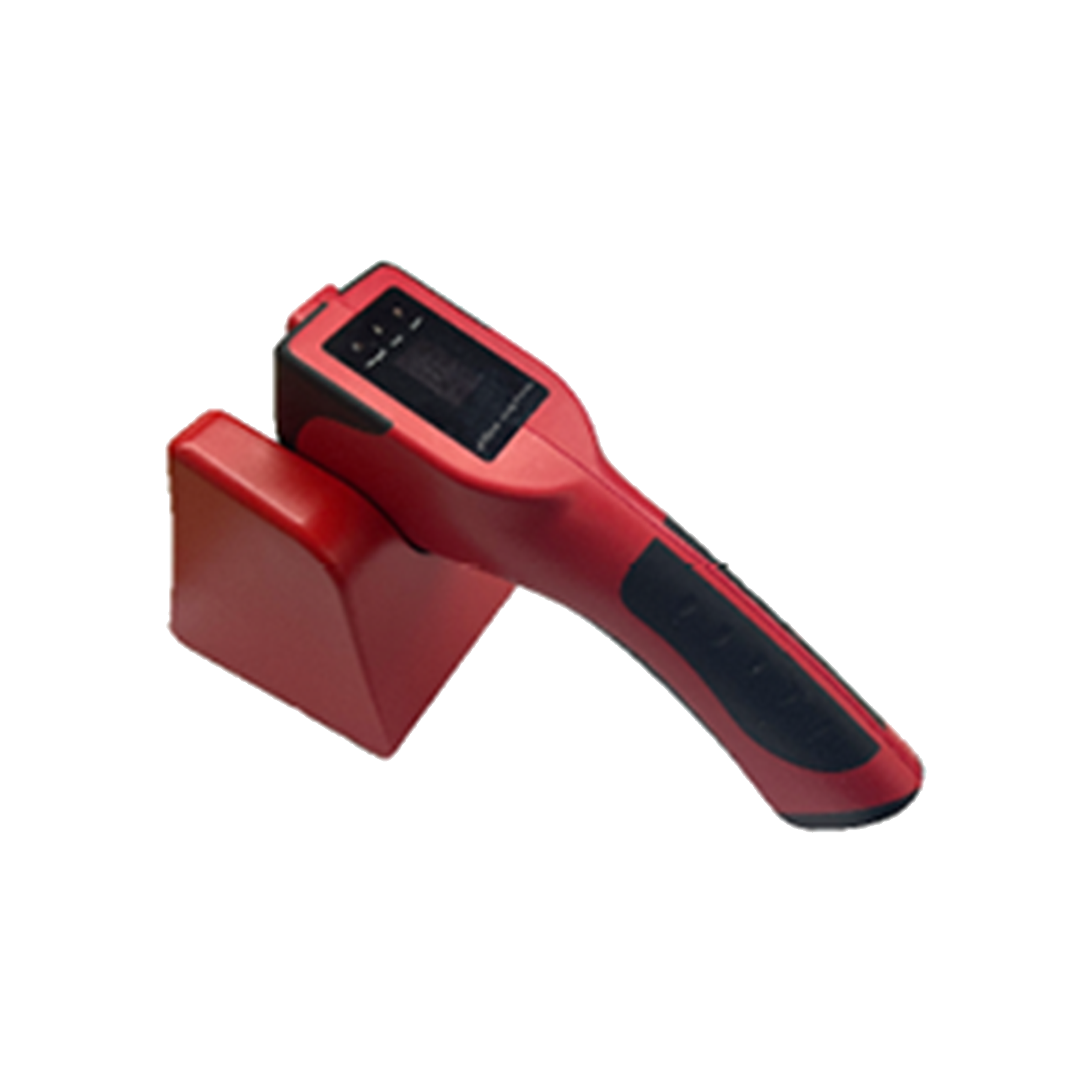

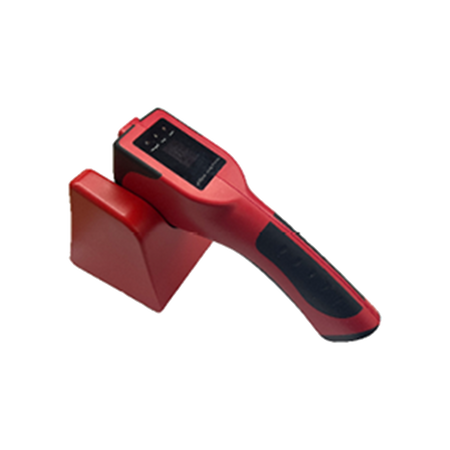

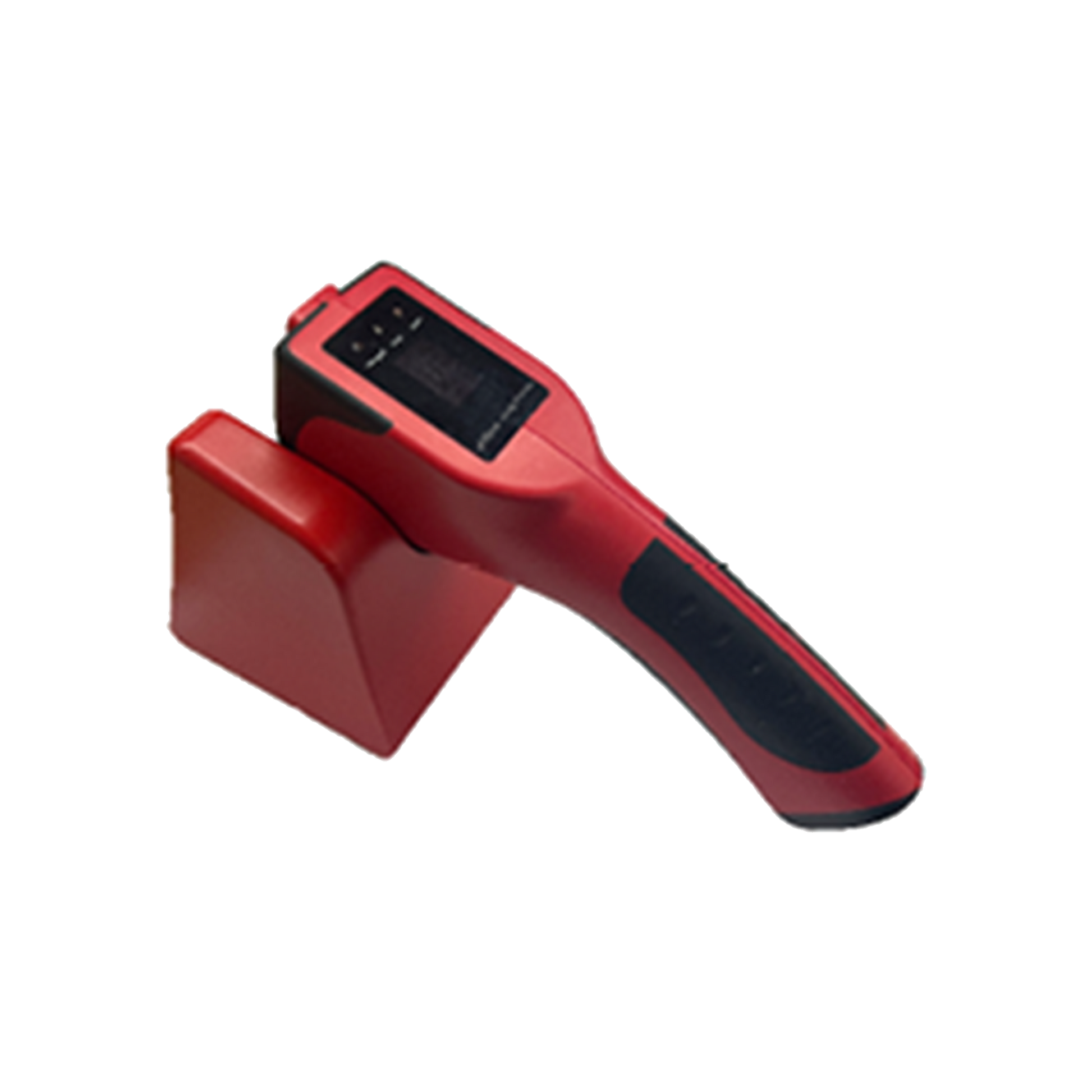

DAHUA XIS4000-L Handheld Bottled Liquid Scanner

In stock
SKU: XIS4000-L
Regular price $1,000,000.00

Estimated delivery date: 2024-04-02

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
  • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



XIS4000-L

Handheld Bottled Liquid Scanner

> Portable size, light weight and easy operation.
> High detection speed.
> Multi-lane speed measurement.
> Wide detection range.
> Unmatched safety performance and saves labor costs.



Product Data

System Parameters

Detection Principle

Differences of permittivity

Function Module

Detection of non-metal container

Alarm Method

Sound & light alarm, image alarm

Operation Method

LCD, button operation

Maintenance & Calibration

No need for maintenance and calibration during normal use, and the Device performs power-on self test.

Booting Time

≤2 s

Self-test Time

≤1 s

Storage

more than 10,000 detection records

Function Parameters

Detection Object

Flammable liquids in sealed container

Detectable Container Material

Plastic/Glass/Ceramic

Detection Speed

1–2 s for non-metal container

Detectable Container Size

Containers with liquid not less than 60 mm

Minimum Detection Volume

50 ml

False Alarm Rate

False alarm rate of pure water≤1%

Alarm Reset

Reset after alarm

Battery specifications

Two 1.5V AA battery or AA rechargeable battery not less than 1300mAh.

Port Parameters

Data Transmission Port

USB

Battery Holder

1

Detection Switch

1

General Parameters

Product Dimension

214 mm × 50 mm × 79 mm (8.43" × 1.97" × 3.11")

Product Color

Red and black

Package Dimension

430 mm × 285 mm × 150 mm (16.93" × 11.22" × 5.91")

Product Weight

0.2 kg ± 0.02 kg

Operating Temperature

–20 °C to 55 °C (–4 °F to 131°F)

Storage Temperature

–20 °C to 55 °C (–4 °F to 131°F)

Operating Humidity

<95% (RH), non-condensing

Storage Humidity

<95% (RH), non-condensing
