Home » DAHUA YJ104 Linear Beam Detector
DAHUA

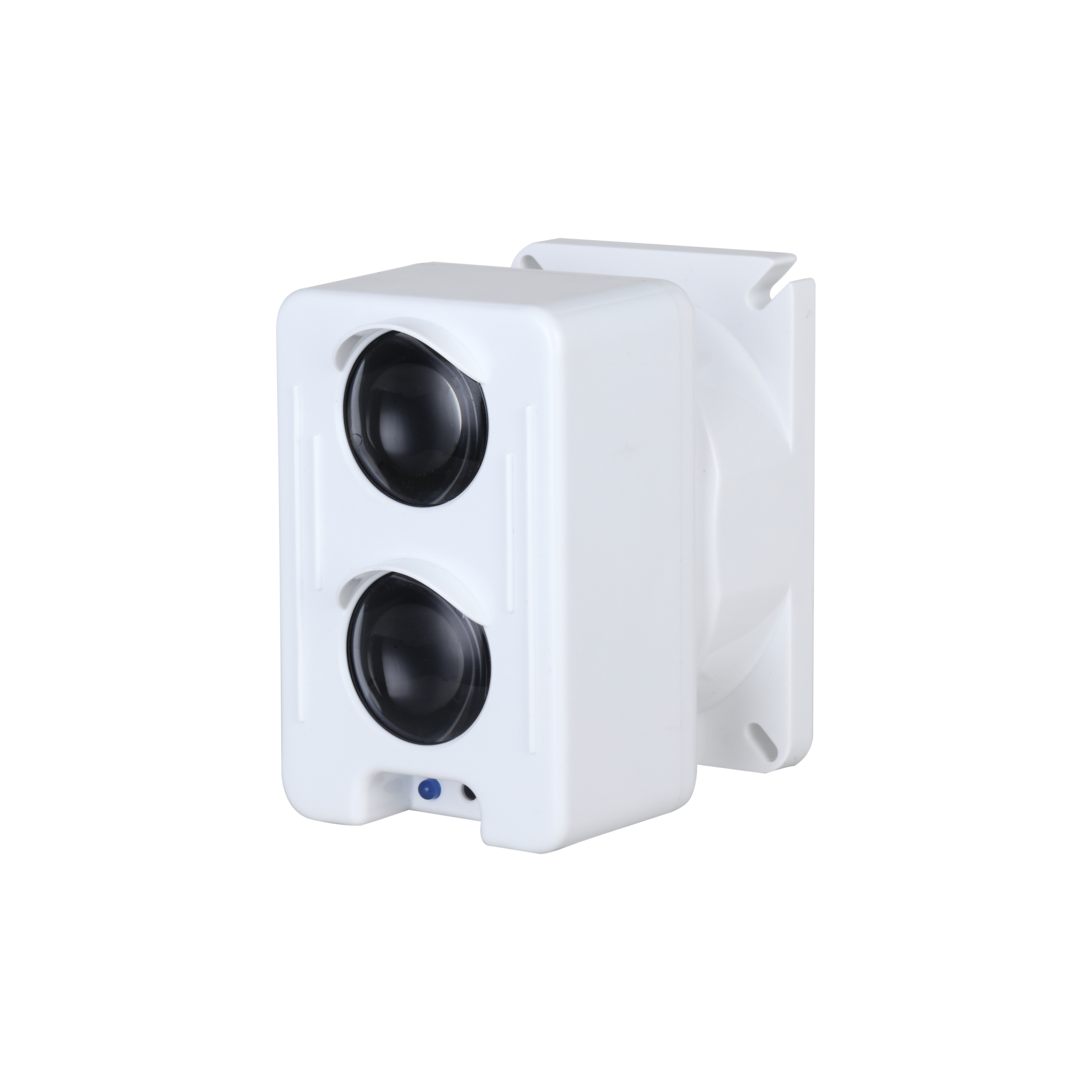

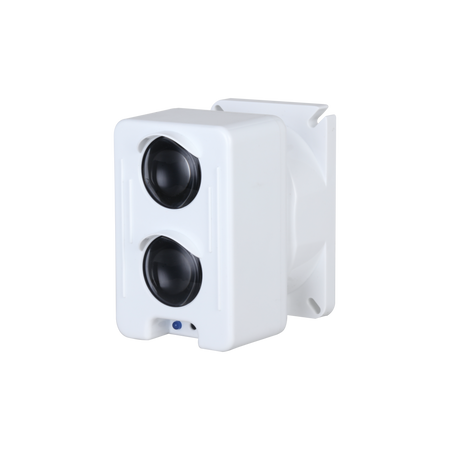

DAHUA YJ104 Linear Beam Detector

In stock
SKU: YJ104
$100,000.00

Estimated delivery date: 2024-06-18

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
    • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



DAHUA YJ104 Linear Beam Detector

Technical Specification

Working Voltage

24V (36V to 18V)

Working Current

30mA (25mA to 45mA)

Indicator Light

Standby: Blue indicator flashes once every 4 seconds

Alarm: Red indicator is steady on

Working Distance

5 m—100 m (16.40 ft—328.08 ft)

Alarm Sensitivity

1.8dB

Dimensions

78.5 mm × 123.0 mm × 115.0 mm (3.09"× 4.84" × 4.53")

Weight

0.3 kg (0.66 lb)

Operating Temperature

-35°C to +65°C (-31°F to +149°F)

Operating Humidity

≤ 95% RH (non condensing)

Adjustment Angle

About ±5° up and ±10° down

Installation Angle

<15° offset :±0.2 m/60 m
