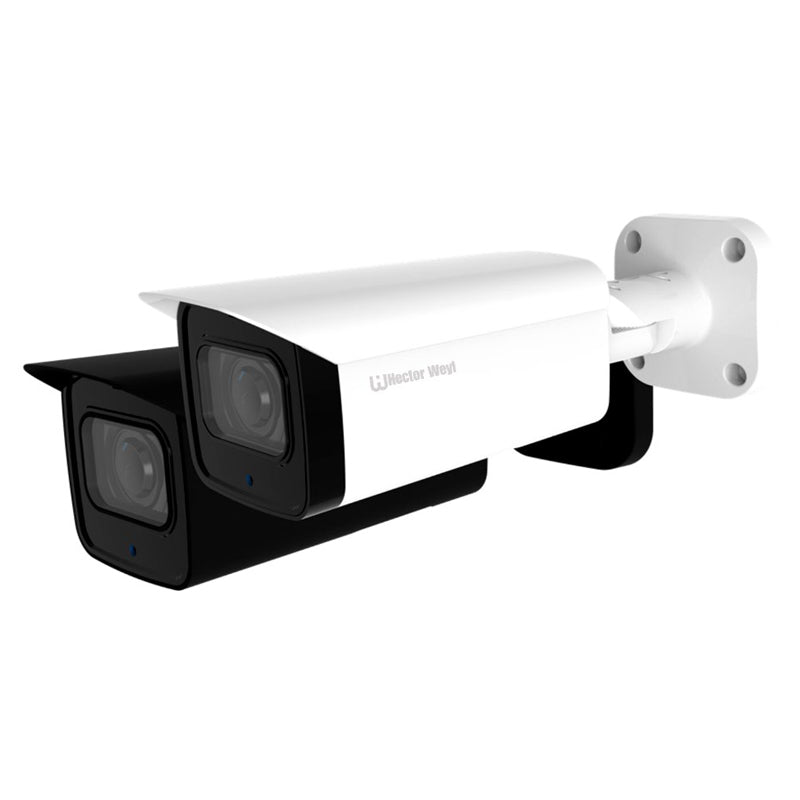

HW-IPC-F3511T-AS-FL 5MP TIOC Advanced Dual Light Fixed-Focal Bullet IntelliSight Network Camera
Couldn't load pickup availability
HW-IPC-F3511T-AS-FL 5MP TIOC Advanced Dual Light Fixed-Focal Bullet IntelliSight Network Camera
Unveiled by Hector Weyl, IntelliSight comprises an array of artificial intelligence products and solutions. These are underpinned by dedicated AI chips and cutting-edge deep learning algorithms, ensuring precise identification of humans and vehicles. This precision empowers users to swiftly respond to specific targets. Leveraging the innovative technologies of Hector Weyl, IntelliSight offers a suite of smart, user-friendly, and comprehensive offerings designed to meet a wide range of needs.
The Hector Weyl IntelliSight 3 Series Network Camera significantly reduces bandwidth and storage requirements, thanks to its AI-powered Coding technology. Fueled by sophisticated deep learning algorithms, this camera is equipped with smart features including perimeter protection, Active Motion Detection (AMD), and IntelliSearch, enhancing user-friendliness and accessibility. Additionally, the StarVu technology combined with a large aperture lens enables the camera to capture sharp, vibrant images even under suboptimal lighting conditions.
• 1/1.8” 8MP CMOS
• ICR,WDR(140dB),
• H.265/H.264/H.264H
• 8MP(1~25fps);
• 2.8mm fixed lens (3.6mm/6mm optional);
• Perimeter Protection: Intrusion, Tripwire( Support the Classification of Vehicle, Human and Non-motor),Face Detection,People Counting
• Video Metadata
• AMD
• Built in Mic&Speaker,
• Micro SD,
• IP67,
• DC12V, PoE;
|
Camera |
|
|
Image Sensor |
1/2.8” CMOS |
|
Max. Resolution |
5MP, 2880 (H) × 1620 (V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
|
Min. Illumination |
0.001Lux(Illuminator off); 0Lux (Illuminator on) |
|
S/N Ratio |
> 56 dB |
|
Illumination Distance |
Warm light distance 40 m, IR distance 50m, Red and Blue light |
|
Illuminator Control |
Auto; Manual |
|
Lens |
|
|
Lens Type |
Fixed-Focal |
|
Focal Length |
2.8mm/3.6mm |
|
Max. Aperture |
F1.6 |
|
Field of View |
2.8mm Horizontal: 111°,Vertical:59°,Diagonal:134° 3.6mm Horizontal: 90°,Vertical:48°,Diagonal: 108° |
|
Iris Type |
Auto |
|
Intelligence |
|
|
Smart Motion Detection |
Yes |
|
Perimeter Protection |
Intrusion,Tripwire(Support the classification of Vehicle, Human and Non-Motor) |
|
Face Detection |
Yes |
|
People Counting |
Yes |
|
Heat Map |
Yes |
|
Video Metadata |
NA |
|
AI Search |
Work together with NVR |
|
Video |
|
|
Compression |
H.264H; H.264M; H.264B; H.2650 |
|
Smart Compression |
H.264H+; H.264M+; H.264B+; H.265+ |
|
|
Main Stream: 5MP (1 fps–25/30 fps) |
|
Video Frame Rate |
Sub Stream: D1 (1 fps–25/30 fps) |
|
|
Third Stream: 720P (1 fps–25/30 fps) |
|
Stream Capability |
3 Streams |
|
Bit Rate Control |
CBR/VBR |
|
Video Bit Rate |
H.264: 3 Kbps–20480 Kbps |
|
H.265: 3 Kbps–20480 Kbps |
|
|
Day/Night |
Color/B/W |
|
BLC |
Yes |
|
HLC |
Yes |
|
WDR |
120 dB |
|
White Balance |
Yes |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D NR |
|
Motion Detection |
OFF/ON (4 Areas, rectangular) |
|
Image Rotation |
180° |
|
Mirror |
Yes |
|
Privacy Masking |
4 Areas |
|
Audio |
|
|
Built-in Mic |
Yes |
|
Built-in Speaker |
Yes |
|
Two-way talk |
Yes |
|
Audio Compression |
G.711a; G.711Mu; G.726; G.726ASF |
|
Alarm |
|
|
Arming/Disarming |
Yes |
|
Sound Alarm |
Yes |
|
Light Alarm |
Red and Blue LED light |
|
Alarm Event |
Disconnection; IP Conflict; No SD Card; Capacity Warning; SD Card Error |
|
Network |
|
|
Network |
RJ-45 (10/100 Base-T) |
|
SDK and API |
Yes |
|
Network Protocol |
TCP/IP;UDP;HTTP;IGMP;ICMP;DHCP;RTP/RTSP;DNS;DDNS;FTP;NTP;PPPOE;UPNP;SMTP |
|
Interoperability |
ONVIF; CGI; P2P |
|
User/Host |
20 (Total bandwidth: 80 M) |
|
Storage |
FTP; Micro SD card (support max. 256 G/FAT32) |
|
Browser |
IE: IE8 and later; Chrome; Firefox |
|
Management Software |
PC Software(HSS), APP(HMSS) |
|
Mobile Client |
IOS; Android |
|
Port |
|
|
Audio Input |
1 channel (optional) |
|
Audio Output |
1 channel (optional) |
|
Alarm Input |
1 channel (optional) |
|
Alarm Output |
1 channel (optional) |
|
Power |
|
|
Power Supply |
12V DC (±30%)/PoE (802.3af) |
|
Power Consumption |
Basic: 2.8 W; Max. 5.5W |
|
Environment |
|
|
Operating Conditions |
–30°C to +60°C (–22°F to +140°F)/Less than 95% RH |
|
Storage Conditions |
–40°C to +60°C (–40°F to +140°F) |
|
Protection Grade |
IP67 |
|
Structure |
|
|
Casing |
Metal |
|
Dimensions |
224 mm × 77mm × 76mm |
|
Net Weight |
760g |
• Rating Surge Voltage: 6KV(10/700μs)
