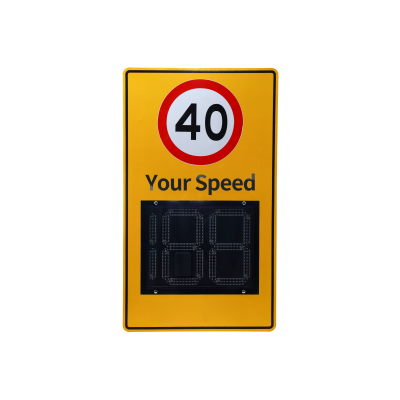

ITACS-024SA-JB Radar Speed Sign
> Speed measurement range: 5km/h–199km/h
> Speed measurement distance: 20m–100m (65.62ft–328.08ft)
> Lane coverage: 4 lanes at most
> Display mode: Two-color LED display. Red numbers for overspeed, and green numbers for normal speed. Up to 3 digits can be displayed, and the largest number can be displayed is 199
> Power consumption: Radar: <5W; LED display: <40W
Basic |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Speed Measurement Range |
5km/h–199km/h |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Speed Measurement Distance |
20m–100m (65.62ft–328.08ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lane Coverage |
4 lanes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Speed Measurement Accuracy |
–4km/h to 0km/h |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Transmission Frequency |
24.15±0.045GHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Response Time |
≤ 33ms |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Transmission Power |
20dBm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Antenna Beamwidth |
Horizontal: ±8.5° (–3dB); vertical: ±2.8° (–3dB) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
LED Display Drive Mode |
Serial |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Display Mode |
Two-color LED display: Red numbers for overspeed and green numbers for normal speed. Up to 3 digits can be displayed, and the largest number can be displayed is 199. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Button |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pushbutton |
2 buttons for setting speed limit value |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-232 |
1 (reserved for outputting vehicle speed information) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
Entire device: 220V AC/0.2A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Radar: <5W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
-40°C to +65°C (-40°F to +149°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%–90% (no condensation) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions |
LED display: 734mm×570mm×106.5mm (28.9''×22.4''×4.2'') (L×W×H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
25.0kg (55.1lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross weight |
26.0kg (57.3lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Side-mounted on pole (using hoops). Mounting height: 1.5m–3m (4.9ft–9.8ft) |
