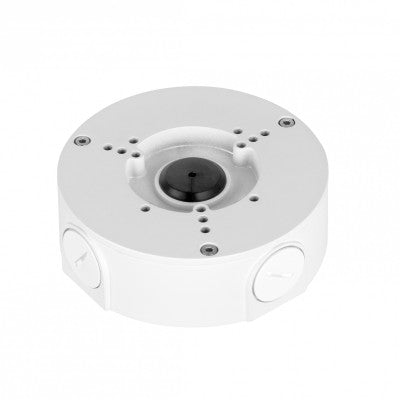

PFA130-E Water-proof Junction Box
> Built of aluminum alloy.
> IP66 rated.
> Suitable for a variety of cameras and is elegant.
Date Sheet
|
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Aluminum alloy |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
Φ124.3 mm × 41.0 mm (Φ4.89" × 1.61") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
White |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
0.34 kg (0.75 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.40 kg (0.88 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Load Bearing |
3.0 kg (6.61 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Junction mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Screw Thread Type |
G3/4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Applicable Model |
Please see "Camera Accessories Selection" |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
146 mm × 65 mm × 147 mm (5.75" × 2.56" × 5.79") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP66 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
<90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
10%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Anti-corrosion Level |
Basic Protection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
