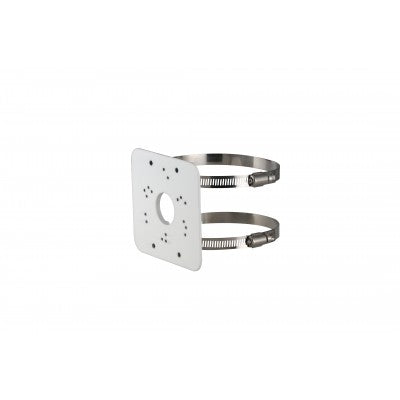

PFA152-E Pole Mount Bracket
> Made from aluminum alloy and SUS 304.
> Suitable for a variety of cameras and is elegant.
> Designed for multiple types of poles that are 80 mm-150 mm wide.
> Suitable for a variety of cameras and is elegant.
> Designed for multiple types of poles that are 80 mm-150 mm wide.
DATA SHEET
|
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Aluminum alloy; Hoop: SUS304 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
125.6 mm × 114.0 mm × 20.0 mm (4.94" × 4.49" × 0.79") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
White |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
0.26 kg (0.57 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.36 kg (0.79 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Load bearing |
3.0 kg (6.61 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Pole mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pole Diameter |
Φ80 mm–150 mm (Φ3.15"–5.91") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
146.0 mm × 65.0 mm × 147.0 mm (5.75" × 2.56" × 5.79") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Applicable Model |
Please see "Camera Accessories Selection" |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
< 90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
10%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Anti-corrosion Level |
Basic Protection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
