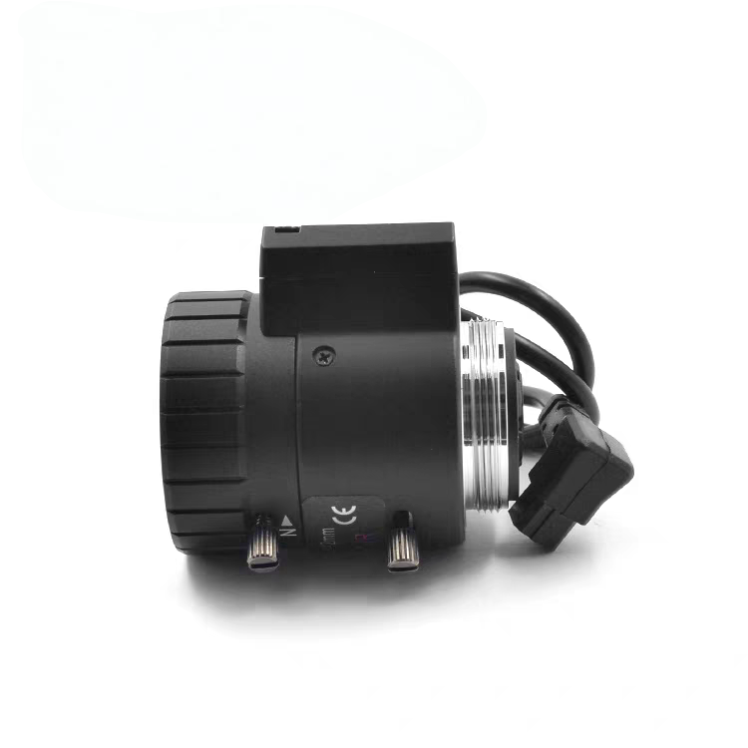

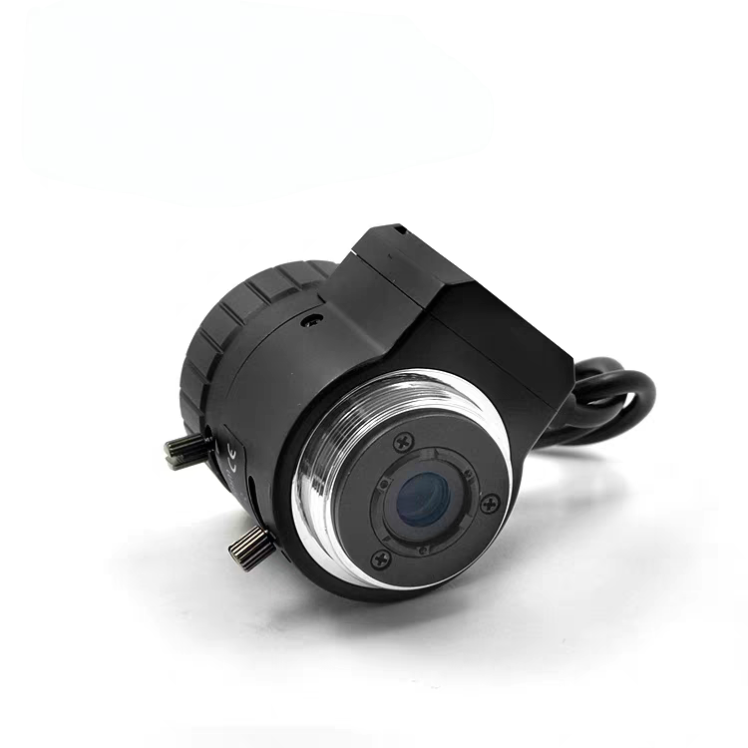

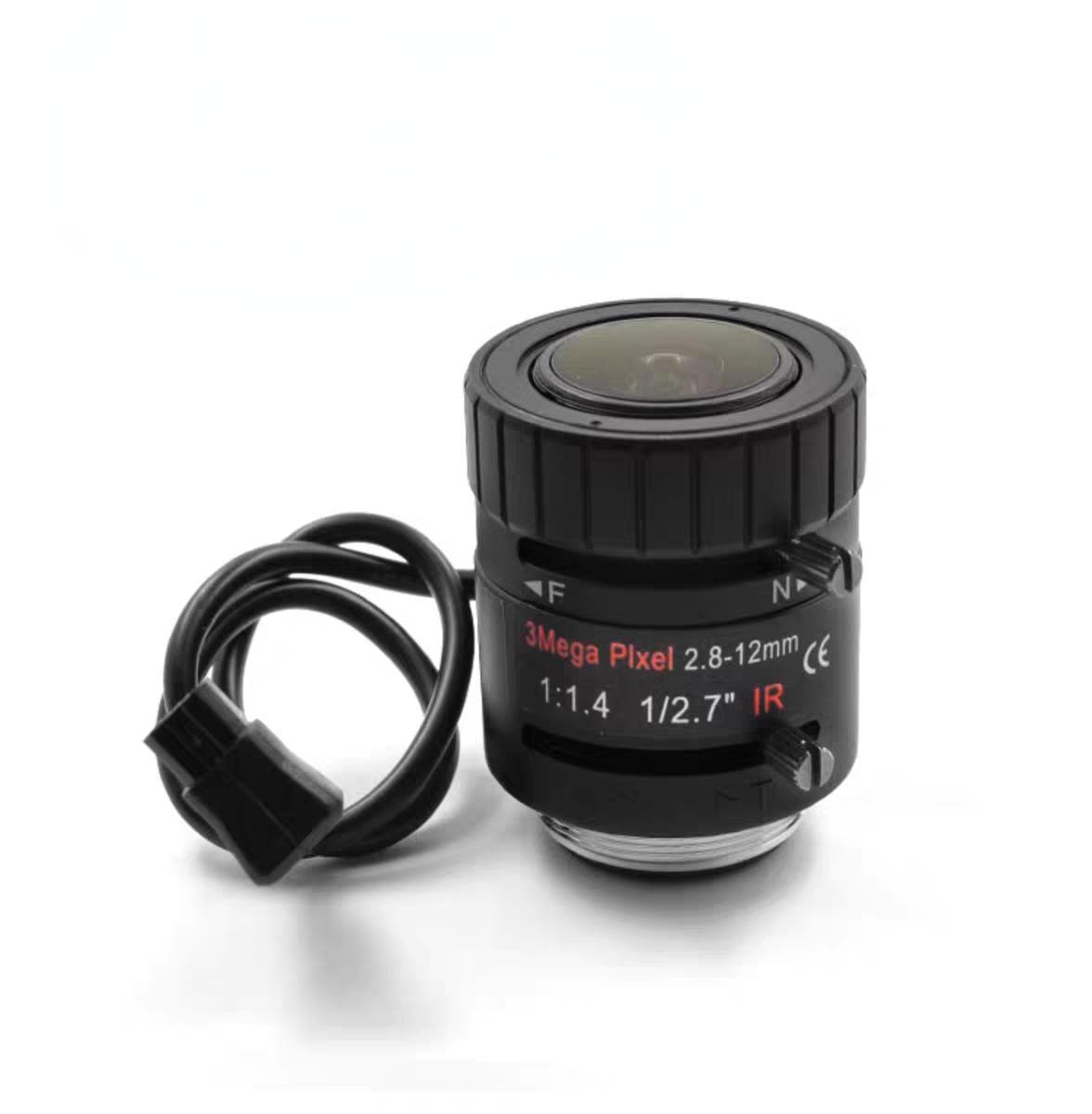

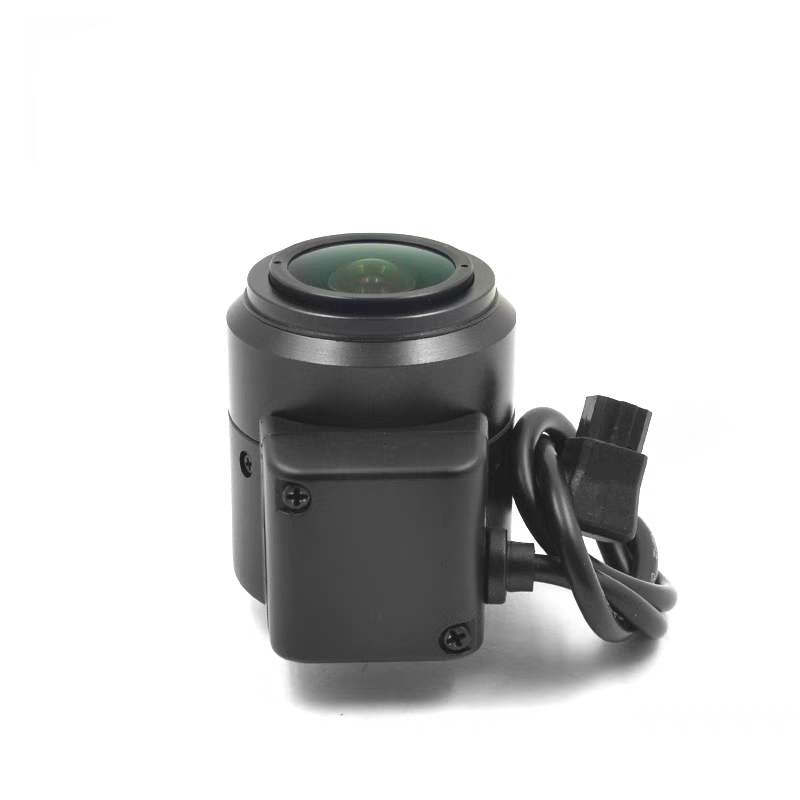

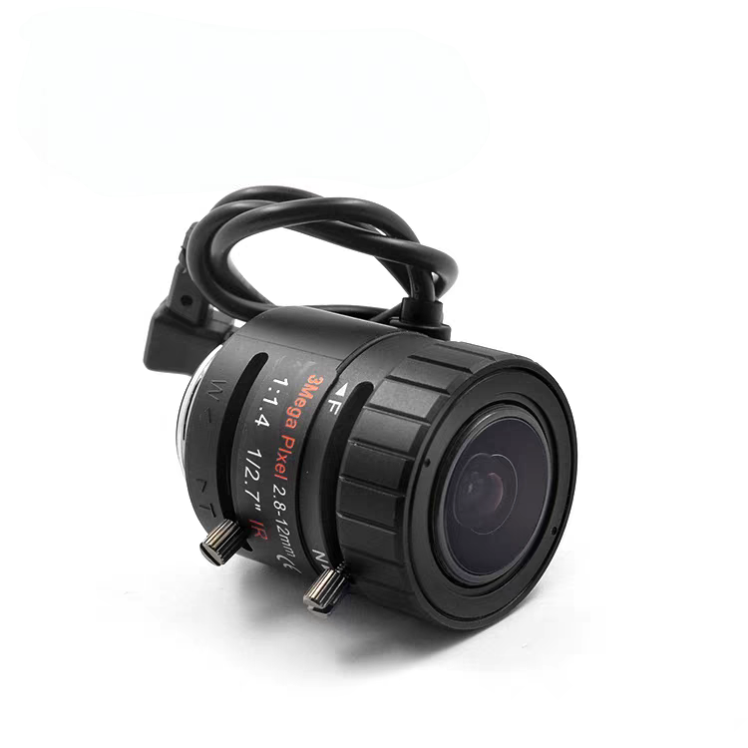

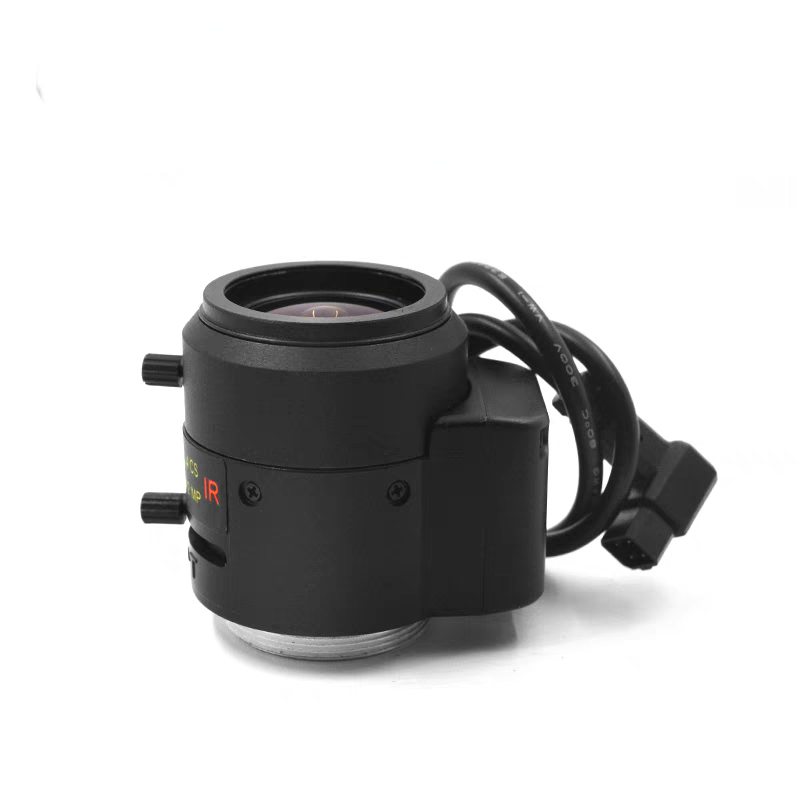

2.8-12mm Auto Varifocal Iris CS CCTV Lens | 1:1.4 |1/2.7"|3MP

Name: 2.8-12mm Auto Varifocal Iris CS CCTV Lens | 1:1.4 |1/2.7"|3MP
Brand: CCTV-MALL
SKU: HW-PFL-VG2812-3MP-DC
Price: 25.50 USD
Availability: InStock

In stock

SKU: HW-PFL-VG2812-3MP-DC

$25.50

Product variants

Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.

Ask Our Experts

Text Chat | Email |04407548784511

Order and Pricing Information for Surveillance Products

Minimum order amount: Orders must exceed $1000 or equivalent.
The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
Shipping costs: Shipping costs will be calculated separately and added to the total order value.
Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
Technical support: As authorized distributors, we provide official technical support.
Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.

Quality Certifications:

Model and General Features

Model: HW - PFL-VG2812 - 3MP - DC. It is designed for closed - circuit television (CCTV) systems, providing reliable surveillance imaging.
Resolution: Capable of 3MP, ensuring clear and detailed video capture.

Optical Specifications

Focal Length: Ranges from 2.8mm to 12mm, allowing for varifocal adjustment. This enables users to zoom in and out as per the surveillance requirements, covering both wide - angle and telephoto views.
Aperture: The F1.4 aperture ensures good light - gathering ability, which is crucial for low - light environments, reducing noise and enhancing image clarity.
Field Angle: For 1/2.7" sensor, the short - focal field angles are D: 136°, H: 109°, V: 82°, and long - focal angles are D: 39°, H: 31°, V: 23°. For 1/3" sensor, the short - focal field angles are D: 122°, H: 98°, V: 73°, and long - focal angles are D: 36°, H: 29°, V: 22°. These angles provide flexible coverage options for different monitoring scenarios.

Mechanical and Operational Features

Mount: It has a CS mount, which is a standard and widely used interface for easy installation on CCTV cameras.
Dimensions: With a size of Φ33×37.2mm and a weight of 64g, it is compact and lightweight, suitable for various installation setups.
IR Correction: Equipped with IR correction (Yes), it can provide consistent focus for both visible and infrared light, ensuring clear images in day - and - night surveillance.
Iris and Focus: The lens features an automatic (DC) iris for adjusting the amount of light entering, and manual focus and zoom functions. This combination allows users to fine - tune the image according to specific needs.
Operating Temperature: It can operate in a temperature range of - 20°C to + 60°C, making it suitable for a wide variety of environmental conditions.

Parameter	Value
Model	CW-VG2812-3MP-DC
Resolution	3MP
Image format	1/2.7″
Focal length	2.8 - 12mm
Aperture	F1.4
Mount	CS
Field Angle (W/T, D×H×V(°), 1/2.7″ short - focal)	D: 136°, H: 109°, V: 82°
Field Angle (W/T, D×H×V(°), 1/2.7″ long - focal)	D: 39°, H: 31°, V: 23°
Field Angle (W/T, D×H×V(°), 1/3″ short - focal)	D: 122°, H: 98°, V: 73°
Field Angle (W/T, D×H×V(°), 1/3″ long - focal)	D: 36°, H: 29°, V: 22°
M.O.D.	0.3m～∞
Back focal length	6.5mm
Dimension	Φ33×37.2mm
Weight	64g
IR Correction	Yes
Iris	Automatic (DC)
Focus	Manual
Zoom	Manual
Operating temperature	-20°C～+60°C
