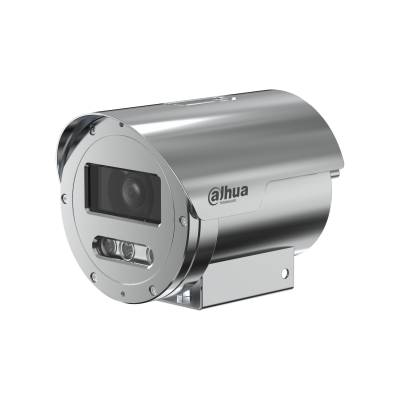

Dahua ECA3A1804-HNR-XB 8MP Explosion-proof IR Bullet WizMind Network Camera

Name: Dahua ECA3A1804-HNR-XB 8MP Explosion-proof IR Bullet WizMind Network Camera
Brand: Dahua
SKU: ECA3A1804-HNR-XB
Price: 10000.00 USD
Availability: InStock

In stock

SKU: ECA3A1804-HNR-XB

$10,000.00

Product variants

Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.

Ask Our Experts

Text Chat | Email |04407548784511

Order and Pricing Information for Surveillance Products

Minimum order amount: Orders must exceed $1000 or equivalent.
The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
Shipping costs: Shipping costs will be calculated separately and added to the total order value.
Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
Technical support: As authorized distributors, we provide official technical support.
Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.

Quality Certifications:

Dahua ECA3A1804-HNR-XB 8MP Explosion-Proof IR Bullet WizMind Camera – ATEX/IECEx, 304/316L Stainless Steel, IP68

Key Performance Highlights – 8MP Ultra-HD + Explosion-Proof + WizMind AI

8MP Ultra-HD Imaging @30fps: 1/2.8" CMOS delivers 3840×2160 (4K) resolution for exceptional forensic detail.
Explosion-Proof Certified: ATEX & IECEx (Ex db IIC T6 Gb / Ex tb IIIC T80°C Db) – safe for hazardous environments.
Rugged Stainless Steel Housing: 304 stainless steel (316L optional), IP68 weatherproof, TVS 2000V surge protection, 2 m cable.
Motorized Lens & 50m IR: 2.7–13.5 mm vari-focal lens, F1.5 aperture; 50 m IR with Zoomprio/Auto/Manual control.
WizMind Intelligence (5+ AI Functions): SMD 4.0, face detection (6 attributes/8 expressions), people counting (tripwire/area/queue), heat map, IVS (intrusion, tripwire, fast moving, loitering, parking, people gathering).
120dB True WDR & AI Coding: Excellent dynamic range, AI H.265/H.264 encoding, Smart H.265+/H.264+, ROI, EIS, defog.
Flexible Power & Installation: 12 VDC or PoE, micro SD up to 512 GB, RS‑485, alarm I/O, RCA audio, ONVIF Profiles S/G/T, Milestone, Genetec.
DORI Distance: Tele end detect range up to 289.7 m (950 ft) – reliable long-range detection.

Camera Specification – 8MP Explosion-Proof Bullet

Lens & DORI Optics (Motorized Vari-focal, F1.5)

Image Sensor	1/2.8" CMOS
Max. Resolution	8MP – 3840 (H) × 2160 (V) – 4K Ultra-HD @30fps
ROM / RAM	128 MB / 1 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s – 1/100,000 s
Min. Illumination	Color: 0.007 lux@F1.5 (30 IRE); B/W: 0.0007 lux@F1.5 (30 IRE); 0 lux (IR on)
S/N Ratio	>56 dB
Illumination Distance & Type	IR: up to 50 m (164.04 ft) – 3 IR LEDs
Illuminator Control	Auto; Zoomprio; Manual

Lens Type / Mount

Motorized vari-focal / φ14

Focal Length / Aperture

2.7 mm – 13.5 mm (5× zoom) | F1.5

Field of View

H: 109°–30°, V: 56°–17°, D: 131°–35°

Iris Control / Close Focus

Fixed; 0.8 m (2.62 ft)

DORI Distance (EN-62676-4)

Zoom	Detect	Observe	Recognize	Identify
Wide (2.7 mm)	88.3 m (289.70 ft)	35.3 m (119.09 ft)	17.7 m (58.07 ft)	8.8 m (28.87 ft)
Tele (13.5 mm)	289.7 m (950.46 ft)	115.9 m (380.25 ft)	57.9 m (189.96 ft)	29.0 m (95.14 ft)

Note: Optical detection distances per EN-62676-4; intelligent function distances may vary.

WizMind Intelligence – 5+ AI Functions

Video & Audio Specifications – 3 Streams, 120dB WDR

SMD 4.0	Smart Motion Detection with human/vehicle classification.
IVS (Perimeter Protection)	Intrusion, tripwire, fast moving (human/vehicle classification); loitering detection, people gathering, parking detection.
Smart Event	Abandoned object; missing object.
Face Detection	Track, snapshot, optimization, attribute extraction (6 attributes, 8 expressions), face cutout (face/one‑inch photo), snapshot strategies, face angle filter.
People Counting	Tripwire people counting (daily/monthly/yearly report), area counting, queue management (queue number/time alarm). Up to 4 rules.
Heat Map	Yes – visualize frequently visited areas.
Quick Pick / Smart Search	Quick Pick (with AI NVR) for human/vehicle target extraction; Smart NVR event search.

Network, Storage & Cybersecurity

Compression / Smart Codec	Smart H.265+; H.265; Smart H.264+; H.264; H.264H; H.264B; MJPEG (sub stream only) AI Coding: AI H.265; AI H.264
Streaming Capability	3 streams
Resolution Options	8M, 6M, 5M, 4M, 3.6M, 3M, 1080p, 1.3M, 720p, D1, VGA, CIF
Video Frame Rate	Main: 3840×2160 @ 1–25/30 fps; Sub: D1 @ 1–25/30 fps; Third: 1920×1080 @ 1–25/30 fps
Bit Rate Control / Bit Rate	VBR/CBR. H.264/H.265: 32 kbps – 16384 kbps
WDR / Image Enhancements	120 dB True WDR, BLC, HLC, 3D NR, SSA, Defog, EIS, ROI (4 areas), Mirror, Image Rotation (0/90/180/270° up to 2688×1520)
Privacy Masking	4 areas
Audio	1 RCA input + 1 RCA output; compression: G.711a; G.711Mu; PCM; G.726; G.723

I/O Interfaces & Alarm

Network Port	RJ-45 (10/100 Base-T)
Network Protocols	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Interoperability	ONVIF (Profile S/G/T); CGI; Milestone; Genetec
Local Storage	Micro SD card (max 512 GB); FTP; SFTP; NAS
User/Host / Bandwidth	20 users (total bandwidth 80 Mbps)
Cybersecurity	Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade/boot; firmware encryption; X.509 certification.
Management Software / Browser	Smart PSS; DSS; DMSS; IE, Chrome, Firefox; iOS/Android

Power, Environment & Protection

RS-485	1 (baud rate 1200–115200 bps)
Audio I/O	1 RCA input + 1 RCA output
Alarm Input / Output	1 wet contact input (5 mA, 3–5 VDC) + 1 dry contact output (1000 mA 30 VDC / 500 mA 50 VAC)
Alarm Event	No SD card; SD card full/error; network/IP conflict; illegal access; motion/tampering; tripwire; intrusion; fast moving; abandoned/missing object; loitering; people gathering; parking; scene changing; audio detection; voltage detection; defocus detection; external alarm; face detection; SMD; people counting (area/stay/queue); security exception.

Physical Structure

Power Supply	12 VDC OR PoE (802.3af)
Power Consumption	Basic: 3.96 W (DC) / 4.95 W (PoE) Max (AI + WDR + IR + autofocus): 9.2 W (DC) / 11.5 W (PoE)
Operating Temperature / Humidity	–30 °C to +60 °C (–22 °F to +140 °F) \| ≤95% RH
Protection Ratings	IP68 (weatherproof/submersible), TVS 2000V lightning/surge/voltage transient protection Explosion‑proof: ATEX (II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T80°C Db) IECEx (Ex db IIC T6 Gb, Ex tb IIIC T80°C Db)
Certifications	CE-LVD (EN62368-1); CE-EMC (2014/30/EU); ATEX; IECEx

Casing Material	SUS304 stainless steel (SUS316L optional), 2 m cable
Product Dimensions	215 mm × 142 mm × 151 mm (8.46" × 5.59" × 5.94") (L×W×H)
Net Weight / Gross Weight	5.0 kg (11.02 lb) / 6.6 kg (14.55 lb)
