Dahua

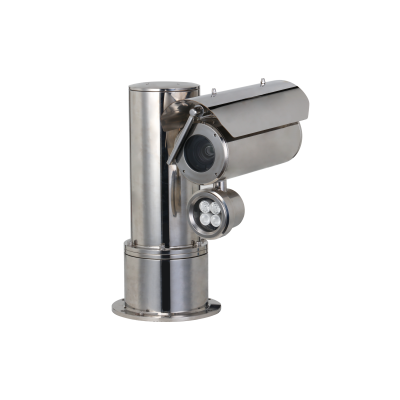

Dahua EPT9A1445-HNR-F 4MP 45x Starlight IR Explosion-proof Camera

Name: Dahua EPT9A1445-HNR-F 4MP 45x Starlight IR Explosion-proof Camera
Brand: Dahua
SKU: EPT9A1445-HNR-F
Price: 10000.00 USD
Availability: InStock

In stock

SKU: EPT9A1445-HNR-F

$10,000.00

Product variants

Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.

Ask Our Experts

Text Chat | Email |04407548784511

Order and Pricing Information for Surveillance Products

Minimum order amount: Orders must exceed $1000 or equivalent.
The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
Shipping costs: Shipping costs will be calculated separately and added to the total order value.
Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
Technical support: As authorized distributors, we provide official technical support.
Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.

Quality Certifications:

Dahua EPT9A1445-HNR-F 4MP 45x Starlight IR Explosion-Proof PTZ Camera – 316L Stainless Steel, ATEX/IECEx, Wiper, 3172m DORI

Key Performance Highlights – 45x Zoom, Explosion-Proof, Stainless Steel, Built‑in Wiper

4MP STARVIS™ CMOS & 45× Optical Zoom: 1/2.8" sensor, 3.95–177.75 mm motorized zoom – capture ultra‑telephoto details over vast areas.
Explosion-Proof Certified: ATEX & IECEx compliant (EN/IEC 60079 series) – safe for hazardous environments.
Rugged 316L Stainless Steel Housing: IP66/IP68 weatherproof, wiper for automatic lens cleaning, TVS 6000V surge protection.
100m IR Night Vision: 4 high‑power IR LEDs with Zoom Prio control provide long‑range illumination.
Built‑in Fiber Optic Port: Single‑mode fiber support for long‑distance transmission up to 20 km (optional).
Advanced AI & Analytics: SMD 4.0, video metadata (10 vehicle / 6 non‑motor / 6 face / 8 body attributes), face detection (6 attributes + 8 expressions), IVS perimeter protection (tripwire, intrusion, loitering, parking, etc.).
Active Deterrence (Audio): 11 built‑in voice alarms + custom imports – volume and playback frequency adjustable (requires external speaker).
Extreme DORI Distance: Tele end detect range up to 3,172 m (10,406 ft) – industry‑leading long‑range identification.

Camera Specification – 4MP Explosion‑Proof PTZ

Image Sensor	1/2.8" CMOS (STARVIS™)
Max. Resolution	4MP – 2560 (H) × 1440 (V)
ROM / RAM	4 GB / 1 GB
Electronic Shutter Speed	1 s – 1/30,000 s
Scanning System	Progressive
Min. Illumination	Color: 0.005 lux@F1.5 (30 IRE); B/W: 0.0005 lux@F1.5 (30 IRE); 0 lux (IR on)
Illumination Distance & Type	IR: 100 m (328.08 ft) – 4 IR LEDs
Illuminator Control	Zoom Prio; Manual; Auto; Off
Wiper	Built‑in wiper (automatic lens cleaning)

Lens & DORI Optics (45× Optical Zoom)

Focal Length / Aperture

3.95 mm – 177.75 mm (45× zoom) | F1.6–F4.95

Field of View

H: 65.7°–1.9°; V: 39.4°–1.1°; D: 73.1°–2.1°

Focus Control / Iris Control

Auto; semi‑auto; manual | Auto; manual; iris prio

Close Focus Distance

0.1 m – 3 m (0.33 ft – 9.84 ft)

DORI Distance (EN-62676-4)

Zoom Range	Detect	Observe	Recognize	Identify
3.95–177.75 mm (Tele end)	3,172 m (10,406.82 ft)	1,252.9 m (4,110.56 ft)	634.4 m (2,081.36 ft)	317.2 m (1,040.68 ft)

Note: Optical detection distances per EN-62676-4; intelligent function distances may vary.

Intelligence & Active Deterrence

Video & Audio Specifications – 3 Streams, 120dB WDR

Video Metadata	Motor vehicle (10 attributes), non‑motor vehicle (6 attributes), face (6 attributes), human body (8 attributes). Supports snapshot optimization and high‑quality face upload.
IVS (Perimeter Protection)	Tripwire, intrusion, crossing fence, loitering, abandoned/missing object, fast moving, parking detection, people gathering, human alarm classification.
Face Detection	6 attributes + 8 expressions, face cutout (face/one‑inch photo), real‑time/quality‑first/optimization snapshot strategies.
SMD 4.0	Smart Motion Detection with human/vehicle classification.
Quick Pick	Yes – fast target search.
Active Deterrence – Sound Warning	11 built‑in voice alarms + supports custom voice imports; volume 0–100%; play times 1–10 adjustable (requires external speaker).

PTZ & Mechanical Specifications

Compression / Smart Codec	Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG (sub stream 1)
Streaming Capability	3 streams
Resolution Options	4M (2560×1440), 3M (2048×1536), 1080p, 1.3M, 720p, D1, CIF
Video Frame Rate	Main: 4M/3M/1080p/1.3M/720p @ 1–25/30 fps Sub1: D1/CIF @ 1–25/30 fps Sub2: 1080p/1.3M/720p/CIF @ 1–25/30 fps
Bit Rate Control / Bit Rate	VBR/CBR. H.264: 96–13,568 kbps; H.265: 38–8,192 kbps
WDR / Image Enhancements	120 dB True WDR, BLC, HLC, 2D/3D NR, ROI, Electronic Defog, EIS, Digital Zoom (16×), Image Rotation 180°
Privacy Masking	Up to 24 areas (max 8 in same view), multiple colors available
Audio	1 audio input + 1 audio output (bare wire); compression: PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723

Pan/Tilt Range	Pan: 0°–360° endless; Tilt: –90°–+90°
Manual Control Speed	Pan: 0.1–40°/s; Tilt: 0.1–40°/s
Preset Speed	Pan: 0.1–40.5°/s; Tilt: 0.1–44.1°/s
Preset / Tour / Pattern / Scan	300 presets, 8 tours, 5 patterns, 5 scans
Power-off Memory / Idle Motion	Yes; Preset/Pattern/Tour/Scan
PTZ Protocol	DH-SD; Pelco-P/D

Network, Storage & Cybersecurity + Fiber Optic

I/O Interfaces & Alarm

Network Port	RJ-45 (10/100 Base-T)
Optical Fiber Port	100 M single fiber port (optional, for long‑distance transmission)
Network Protocols	HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; SNMP; PPPoE; RTMP; Bonjour; NFS
Interoperability	ONVIF (Profile S/G/T); CGI; SDK
Local Storage	Micro SD card (max 512 GB); FTP/SFTP; NAS
User/Host / Bandwidth	20 users (total bandwidth 64 Mbps)
Cybersecurity	WSSE, account lockout, HTTPS, IP/MAC filtering, security logs, trusted boot/execution/upgrade
Management Software / Browser	DMSS; DSS Pro; IE9+, Chrome 41+, Firefox 52+, Safari 10+; iOS/Android

Power, Environment & Protection

RS-485	1 (baud rate 1200–9600 bps)
Audio I/O	1 input + 1 output (bare wire)
Alarm Input / Output	2 inputs (0–5 VDC) + 1 output
Alarm Linkage	Recording; email; preset; tour; pattern; alarm output; audio
Alarm Event	Motion/tampering; audio detection; network/IP conflict; SD card status; storage space

Power Supply	100–240 VAC, 50 Hz/60 Hz
Power Consumption	Basic: 15 W; Max (IR + heater + PTZ + wiper): 60 W
Operating Temperature / Humidity	–40 °C to +60 °C (–40 °F to +140 °F) \| ≤95% RH
Protection Ratings	IP66 / IP68 (weatherproof/submersible), TVS 6000V lightning/surge/voltage transient protection Explosion‑proof: ATEX (EN 60079‑0/EN 60079‑1/EN 60079‑31) IECEx (IEC 60079‑0/IEC 60079‑1/IEC 60079‑31)
Certifications	ATEX: EN 60079-0/EN 60079-1/EN 60079-31; IECEx: IEC 60079-0/IEC 60079-1/IEC 60079-31

Physical Structure

Casing Material	SUS316L stainless steel
Product Dimensions	334.1 mm × 303 mm × 426 mm (13.15" × 11.93" × 16.77")
Net Weight / Gross Weight	23.5 kg (51.81 lb) / 46.4 kg (102.30 lb)
