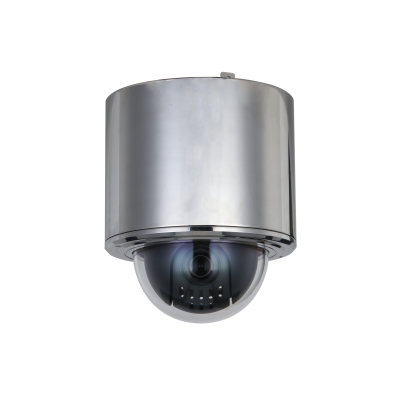

Dahua ESD41A415-HNR 4MP 15X Starlight Non Compensation Light Explosion-proof Camera

Name: Dahua ESD41A415-HNR 4MP 15X Starlight Non Compensation Light Explosion-proof Camera
Brand: Dahua
SKU: ESD41A415-HNR
Price: 10000.00 USD
Availability: InStock

In stock

SKU: ESD41A415-HNR

$10,000.00

Product variants

Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.

Ask Our Experts

Text Chat | Email |04407548784511

Order and Pricing Information for Surveillance Products

Minimum order amount: Orders must exceed $1000 or equivalent.
The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
Shipping costs: Shipping costs will be calculated separately and added to the total order value.
Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
Technical support: As authorized distributors, we provide official technical support.
Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.

Quality Certifications:

Dahua ESD41A415-HNR 4MP 15x Starlight Explosion-Proof PTZ Camera – Auto Tracking 3.0, ATEX/IECEx, 1431m DORI

Key Performance Highlights – Explosion-Proof PTZ with Auto Tracking & Video Metadata

4MP Starlight Imaging & 15× Optical Zoom: 1/2.8" CMOS, 4.77–71.55 mm motorized zoom – capture wide-area overviews and telephoto details with excellent low-light sensitivity.
Explosion-Proof Certified: ATEX & IECEx compliant, NEMA 4X – safe for hazardous environments.
Rugged Stainless Steel Housing: SUS304 / SUS316L optional, IP68 weatherproof, TVS 6000V surge protection.
Auto Tracking 3.0 & Video Metadata: Effective target monitoring with detailed intruder trajectories; multi-target detection and analysis with real-time tracking.
Face Detection & Perimeter Protection: Face detection (6 attributes/8 expressions); IVS (tripwire, intrusion) with human/vehicle classification.
High-Speed PTZ: Pan 0–130°/s manual, preset speed 280°/s; Tilt 0–57°/s manual, preset 216°/s. 300 presets, 8 tours.
120dB True WDR & Smart Encoding: Superior dynamic range; H.265+/H.264+, 3 streams, 120dB WDR, EIS, defog.
Extreme DORI Distance: Tele end detect range up to 1,431 m (4,694 ft) – reliable long-range identification.

Camera Specification – 4MP Explosion-Proof PTZ

Image Sensor	1/2.8" CMOS
Max. Resolution	4MP – 2560 (H) × 1440 (V)
ROM / RAM	1 GB / 4 GB (note: ROM 1GB, RAM 4GB)
Electronic Shutter Speed	1/3 s – 1/100,000 s
Scanning Mode	Progressive
Min. Illumination	Color: 0.05 lux@F1.6 (30 IRE); B/W: 0.005 lux@F1.6 (30 IRE)

Lens & DORI Optics (15× Optical Zoom)

Focal Length / Aperture

4.77 mm – 71.55 mm (15× zoom) | F1.6–F2.8

Field of View

H: 60.4°–4.3°; V: 34.5°–2.4°; D: 68.5°–5.0°

Focus Control / Iris Control

Auto; Semi-auto; Manual | Auto; Manual

Close Focus Distance

1.0 m – 1.5 m (3.28 ft – 4.92 ft)

DORI Distance (EN-62676-4)

Zoom Range	Detect	Observe	Recognize	Identify
4.77–71.55 mm (Tele end)	1,431 m (4,694.88 ft)	565 m (1,853.67 ft)	286 m (938.32 ft)	143 m (469.16 ft)

Note: Optical detection distances per EN-62676-4; intelligent function distances may vary.

Intelligence & AI Features

Video & Audio Specifications – 3 Streams, 120dB WDR

Perimeter Protection (IVS)	Tripwire, intrusion – supports human/vehicle classification, filtering false alarms (animals, leaves, lights).
Auto Tracking	Auto Tracking 3.0 – effective target monitoring with detailed intruder trajectories.
Video Metadata	Multi-target detection and analysis with real-time tracking.
Face Detection	Supports detection, optimization, snapshot, enhancement; attribute extraction (6 attributes, 8 expressions); face cutout (face/one‑inch photo).
General IVS	Abandoned object; missing object.
Event Trigger	Motion detection, video tampering, scene changing, network/IP conflict, illegal access, storage anomaly.

PTZ & Mechanical Specifications – High Speed

Compression / Smart Codec	Smart H.265+; H.265; Smart H.264+; H.264; H.264B; H.264M; H.264H; MJPEG (sub stream)
Streaming Capability	3 streams
Resolution Options	4M (2560×1440), 3M (2048×1536/2304×1296), 1080p, 1.3M, 720p, D1, VGA, CIF
Video Frame Rate	Main: 4M/3M @ 1–25/30 fps; 1080p/1.3M/720p @ 1–25/30 fps Sub1: D1/CIF @ 1–25/30 fps; Sub2: 1080p/1.3M/720p/D1/CIF @ 1–25/30 fps
Bit Rate Control / Bit Rate	VBR/CBR. H.264: 96–14848 kbps; H.265: 38–8960 kbps
WDR / Image Enhancements	120 dB True WDR, BLC, HLC, 2D/3D NR, ROI, Electronic Defog, EIS, Digital Zoom (15×), Image Rotation 0/180°
Privacy Masking	Up to 24 areas
Audio	1 input + 1 output (bare wire); compression: G.711A, G.711Mu, G.726, AAC, G.722.1, G.723, G.729, PCM, MPEG2-Layer2

Network, Storage & Cybersecurity

Pan/Tilt Range	Pan: 0°–360° endless; Tilt: 0°–90°, auto flip 180°
Manual Control Speed	Pan: 0.1–130°/s; Tilt: 0.1–57°/s
Preset Speed	Pan: 280°/s; Tilt: 216°/s
Preset / Tour / Pattern / Scan	300 presets, 8 tours (up to 32 presets each), 5 patterns, 5 scans
Speed Adjustment / Power-off Memory	Support / Support
Idle Motion / Protocol	Preset/Tour/Pattern/Scan; DH-SD, Pelco-P/D (auto recognition)

I/O Interfaces & Alarm

Network Port	RJ-45 (10/100 Base-T)
Network Protocols	IPv4; IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Interoperability	ONVIF (Profile S/G); CGI
Local Storage	Micro SD card (max 256 GB); FTP; P2P
User/Host / Bandwidth	20 users (total bandwidth 48 Mbps)
Management Software / Browser	Smart Player, Smart PSS, DSS, Easy4ip; IE7+, Chrome 42- (older), Firefox 52-, Safari; iOS/Android/Windows Phone

Audio I/O	1 input + 1 output (bare wire)
Alarm Input / Output	2 inputs + 1 output

Power, Environment & Protection

Physical Structure

Power Supply	100–240 VAC OR PoE (802.3at standard)
Power Consumption	Basic: 18 W; Max (PTZ operation): 21 W
Operating Temperature / Humidity	–40 °C to +60 °C (–40 °F to +140 °F) \| ≤95% RH
Protection Ratings	IP68 (weatherproof/submersible), TVS 6000V lightning/surge/voltage transient protection Explosion‑proof: ATEX & IECEx certified; NEMA 4X
Certifications	CE; IECEx/ATEX; NEMA 4X

Casing Material	SUS304 / SUS316L stainless steel
Product Dimensions	ø184 mm × 277.4 mm (ø7.24" × 10.92")
Net Weight / Gross Weight	6.9 kg (15.21 lb) / 9.4 kg (20.72 lb)
