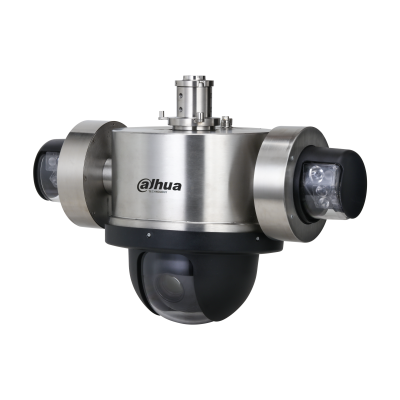

Dahua ESD8A1425-HNR-F 4MP 25 Starlight+ IR Explosion-proof Camera

Name: Dahua ESD8A1425-HNR-F 4MP 25 Starlight+ IR Explosion-proof Camera
Brand: Dahua
SKU: ESD8A1425-HNR-F
Price: 10000.00 USD
Availability: InStock

In stock

SKU: ESD8A1425-HNR-F

$10,000.00

Product variants

Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.

Ask Our Experts

Text Chat | Email |04407548784511

Order and Pricing Information for Surveillance Products

Minimum order amount: Orders must exceed $1000 or equivalent.
The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
Shipping costs: Shipping costs will be calculated separately and added to the total order value.
Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
Technical support: As authorized distributors, we provide official technical support.
Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.

Quality Certifications:

Dahua ESD8A1425-HNR-F 4MP 25x Starlight+ IR Explosion-Proof PTZ Camera – ATEX/IECEx, 1862m DORI, Fiber Optic

Key Performance Highlights – Explosion-Proof PTZ with Long-Range IR & Fiber Optic

4MP High-Quality Imaging & 25× Optical Zoom: 1/1.8" CMOS, 5.4–135 mm motorized zoom lens – capture expansive areas with exceptional detail.
Explosion-Proof Certified: ATEX & IECEx (Ex db IIC T6 Gb / Ex tb IIIC T80°C Db) – safe for hazardous environments.
Rugged Stainless Steel Construction: SUS316L high-strength casing, IP68 weatherproof, TVS 6000V surge protection.
100m IR Night Vision: 12 high-power IR LEDs provide long-range illumination with Zoom Prio control.
Built-in Fiber Optic Port: Single-mode fiber (1310 nm TX/1550 nm RX), transmission distance up to 20 km (12.43 mi) – ideal for long-distance deployments.
Advanced AI & Tracking: SMD 4.0, AutoTracking 3.0, face detection (6 attributes/8 expressions), IVS perimeter protection (tripwire, intrusion, loitering, parking, etc.), human/vehicle classification.
Active Deterrence (Audio): 29 built-in voice alarms + 10 custom imports – volume and playback frequency adjustable (requires external speaker).
Extreme DORI Distance: Tele end detect range up to 1,862 m (6,109 ft) – industry-leading long-range identification.

Camera Specification – 4MP Explosion-Proof PTZ

Image Sensor	1/1.8" CMOS
Max. Resolution	4MP – 2560 (H) × 1440 (V)
ROM / RAM	4 GB / 1 GB
Electronic Shutter Speed	1 s – 1/30,000 s

Scanning System Progressive Min. Illumination Color: 0.001 lux@F1.6 (30 IRE); B/W: 0.0001 lux@F1.6 (30 IRE); 0 lux (IR on) Illumination Distance & Type IR: 100 m (328.08 ft) – 12 IR LEDs (spec table says "Warm light", but function is IR) Illuminator Control Zoom Prio; Manual; Auto; Off

Lens & DORI Optics (25× Optical Zoom)

Focal Length / Aperture

5.4 mm – 135 mm (25× zoom) | F1.6–F4.0

Field of View

H: 59.8°–2.8°; V: 33.7°–1.9°; D: 63.3°–4.0°

Focus Control / Iris Control

Auto; Semi-auto; Manual | Auto; Manual

Close Focus Distance

0.1 m – 2.0 m (0.33 ft – 6.56 ft)

DORI Distance (EN-62676-4)

Zoom Range	Detect	Observe	Recognize	Identify
5.4–135 mm (Tele end)	1,862 m (6,109.1 ft)	735.5 m (2,413.1 ft)	372 m (1,221.8 ft)	186 m (610.9 ft)

Note: Optical detection distances per EN-62676-4; intelligent function distances may vary.

Intelligence & Active Deterrence

Video & Audio Specifications – 3 Streams, 90dB WDR

IVS (Perimeter Protection)	Tripwire, intrusion, crossing fence, loitering, abandoned/missing object, fast moving, parking detection, people gathering, human alarm classification, auto tracking.
Face Detection	6 attributes + 8 expressions, face cutout (face/one‑inch photo), real‑time/quality‑first/optimization snapshot strategies.
Smart Tracking	AutoTracking 3.0
SMD 4.0	Smart Motion Detection with human/vehicle classification.
Active Deterrence – Sound Warning	29 built‑in voice alarms + supports 10 custom voice imports; volume 0–100%; play times 1–10 adjustable (requires external speaker).

PTZ & Mechanical Specifications

Compression / Smart Codec	Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG (sub stream 1)
Streaming Capability	3 streams
Resolution Options	4M (2560×1440), 3M, 1080p, 1.3M, 720p, D1, VGA, CIF
Video Frame Rate	Main: 4M/3M/1080p/1.3M/720p @ 1–25/30 fps; Sub1: D1/VGA/CIF @ 1–25/30 fps; Sub2: 1080p/1.3M/720p @ 1–25/30 fps
Bit Rate Control / Bit Rate	VBR/CBR. H.264: 96–14848 kbps; H.265: 38–8960 kbps
WDR / Image Enhancements	90 dB WDR, BLC, HLC, 2D/3D NR, ROI, Electronic Defog, EIS, Digital Zoom (16×), Image Rotation 180°
Privacy Masking	Up to 24 areas (max 8 in same view), multiple colors and mosaic available
Audio	1 audio input + 1 audio output (bare wire); compression: PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723

Network, Storage & Cybersecurity + Fiber Optic

Pan/Tilt Range	Pan: 0°–360°, endless; Tilt: 0°–90°, auto flip 180°
Manual Control Speed	Pan: 0.1–70°/s; Tilt: 0.1–50°/s
Preset Speed	Pan: 70°/s; Tilt: 50°/s
Preset / Tour / Pattern / Scan	300 presets, 8 tours, 5 patterns, 5 scans
Power-off Memory / Idle Motion	Yes; Preset/Pattern/Tour/Scan
PTZ Protocol	DH-SD; Pelco-P/D (auto recognition)

I/O Interfaces & Alarm

Network Port	RJ-45 (10/100 Base-T)
Fiber Optic Port	100 M single fiber (1310 nm TX / 1550 nm RX), transmission distance: 20 km (12.43 mi)
Network Protocols	HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; SNMP; PPPoE; RTMP; Bonjour; SMB; NFS
Interoperability	ONVIF (Profile S/G/T); CGI; SDK
Local Storage	Micro SD card (max 512 GB); FTP/SFTP; NAS
User/Host / Bandwidth	20 users (total bandwidth 64 Mbps)
Cybersecurity	WSSE, account lockout, HTTPS, IP/MAC filtering, security logs, trusted boot/execution/upgrade	Management Software / Browser	DMSS; DSS Pro; IE9+, Chrome 41+, Firefox 50+, Safari 10+; iOS/Android

Power, Environment & Protection

RS-485	1 (baud rate 1200–9600 bps)
Audio I/O	1 input + 1 output (bare wire)
Alarm Input / Output	2 inputs + 1 output
Alarm Linkage	Capture; recording; email; preset; tour; pattern; alarm output; audio
Alarm Event	Motion/tampering; audio detection; network/IP conflict; SD card status; storage space

Power Supply	100–240 VAC; 50/60 Hz
Power Consumption	Basic: 20 W; Max (IR + PTZ): 31.5 W (220 VAC)
Operating Temperature / Humidity	–40 °C to +60 °C (–40 °F to +140 °F) \| ≤95% RH
Protection Ratings	IP68 (weatherproof/submersible), TVS 6000V lightning/surge/voltage transient protection Explosion‑proof: ATEX (II 2G Ex db IIC T6 Gb, II 2D Ex tb IIIC T80°C Db) IECEx (Ex db IIC T6 Gb, Ex tb IIIC T80°C Db)
Certifications	ATEX: EN IEC 60079-0/EN 60079-1/EN 60079-31/EN IEC 60079-31; IECEx: IEC 60079-0/IEC 60079-1/IEC 60079-31

Physical Structure

Casing Material	SUS316L stainless steel
Product Dimensions	512.2 mm × 261.5 mm × 362.7 mm (20.17" × 10.3" × 14.28") (L×W×H)
Net Weight / Gross Weight	19.3 kg (42.55 lb) / 65.6 kg (144.62 lb)
