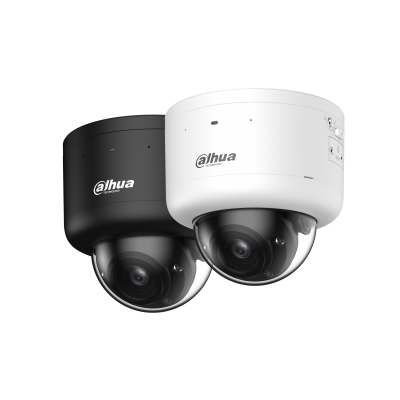

Dahua IPC-HDBW7859Z-Z-PV-X 8MP 4K WizMind PTRZ Dome Camera, 140dB WDR, 60fps, ANPR & Deterrence
Regular price
$10,000.00
Couldn't load pickup availability
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
 |
 |
Ask Our Experts
|
Please note the following important details when ordering surveillance products from CCTV-MALL: |
Quality Certifications: |
Dahua IPC-HDBW7859Z-Z-PV-X 8MP 4K Smart Dual Light PTRZ Active Deterrence WizMind Network Dome Camera
Ultimate PTRZ 4K Performance Highlights
- Full PTRZ Remote Adjustment: Motorized Pan, Tilt, Rotation, and Zoom control allows for total remote alignment after installation, drastically reducing maintenance time.
- Liquid-Smooth 8MP 60fps Video: Captures high-speed action in full 4K resolution at 60 fps (or 1080p @ 120 fps) for unmatched forensic dynamic clarity.
- 140dB Ultra-WDR & AI-ISP: Professional dynamic range paired with AI-ISP technology ensures exceptional details in extreme backlight and ultra-low light (0.0001 lux).
- Proactive Deterrence: Features Red/Blue light warning and a high-power 110dB siren alarm. Supports high-fidelity real-time talk via built-in dual Mic and speaker.
- Advanced AI Suite: Powered by Xinghan Vision Models, featuring ANPR (up to 60km/h), PPE Detection (helmets, vests, masks), Face Recognition (200k database), and Parking Space Management.
- Extreme Reliability: Built-in Window Heater for ice/snow removal. Certified IP67 weatherproof and IK10 vandal-proof.
Camera Specification
| Image Sensor | 1/1.8" CMOS (Professional Grade) |
|---|---|
| Max. Resolution | 3840 (H) × 2160 (V) - 8MP 4K |
| PTRZ Adjustment | Pan: 0°–355°; Tilt: 0°–80°; Rotation: 0°–355° (Remote Motorized) |
| Scanning System | Progressive |
| Min. Illumination | 0.0005 lux @ F1.0 (Color, 30 IRE) 0.0001 lux @ F1.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio / ROM / RAM | > 56 dB | 8 GB ROM / 4 GB RAM |
| Illumination Distance | IR: Up to 60 m (196.85 ft) Warm Light: Up to 50 m (164.04 ft) |
| Illuminator Control | Auto; Manual | 4 (Multi-core IR + warm light) |
Lens & Optics
| Lens Type / Mount | Motorized vari-focal | Φ16 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Focal Length | 2.7 mm–12 mm | |||||||||||||||
| Max. Aperture / Iris | F1.0 | Auto (P-Iris Precision Control) | |||||||||||||||
| Field of View (H/V/D) | H: 112°–48°; V: 58°–27°; D: 137°–56° | |||||||||||||||
| Close Focus Distance | 0.2 m (0.66 ft) | |||||||||||||||
| DORI Distance |
|
Elite Intelligence (WizMind)
| AI Model | Xinghan Vision Models: Imaging & target detection enhancement via self-learning. |
|---|---|
| ANPR | Vehicle recognition (Plate, type, color, brand) up to 60km/h. Supports 10,000 allow/blocklist records. |
| PPE Detection | Detects safety gear: helmets, uniforms, masks, gloves, vests, goggles, shoe covers, etc. |
| Face Recognition | Supports 5 face databases (200,000 pictures). Extraction of 6 attributes & 8 expressions. |
| Video Metadata | Attributes for motor vehicles (Smoking, calling, logo, seatbelt), non-motor vehicles, and human bodies. |
| IVS / Perimeter | Intrusion, tripwire, loitering, gathering, parking, stay, abandoned/missing object detection. |
| Advanced Analytics | Heat Map, People Counting (Tripwire/Area/Queue), Parking Space Management, Privacy Protection (Mosaic/Frosted). |
Video, Audio & Deterrence
| Resolution Options | 8M (3840 × 2160); 6M; 5M; 4M; 3M; 1080p; 1.3M; 720p; D1; CIF |
|---|---|
| Video Frame Rate |
Default: Main stream: 3840 × 2160 @ (1–30 fps) High Frame Rate: Main stream: 3840 × 2160 @ (1–60 fps) / 1080p @ (1–120 fps) *Supports 5 Streams total. |
| WDR / Noise Reduction | 140 dB WDR | 3D NR | AI Coding (AI H.265/H.264) |
| Stabilization | Gyroscope Image Stabilization (GIS) & G-sensor tampering detection. |
| Active Deterrence | Red/Blue Light Warning + 110dB Siren Alarm. |
| Audio Hardware | Built-in Dual Microphone | Built-in Speaker (Max 110dB at 10cm) |
System Connectivity & Security
| Network Port | RJ-45 (10/100/1000 Base-T) - Gigabit Ethernet |
|---|---|
| System Ports | 1x RS-485 | 1x RCA Audio In / 1x Out | 3-ch Alarm In / 2-ch Out | 1-ch CVBS (BNC) | 12 VDC Power Out |
| Cybersecurity | AES 256; TPM 2.0 (FIPS 140-2 Level 2); SSL/TLS1.3; Trusted boot/execution/upgrade. |
| Storage | FTP; SFTP; Micro SD card (supports max. 1 TB); NAS |
| Interoperability / Browser | ONVIF (Profile S/G/T/M); CGI | IE11+, Chrome 100+, Firefox 47+ |
Power & Protection
| Power Supply | 12 VDC (±30%) & 24 VAC (±30%) independent port; PoE+ (802.3at); ePoE support |
|---|---|
| Built-in Heater | Window Heating: Removes frost, snow, and mist automatically for clear images. |
| Power Consumption | Basic: 7.5 W (12 VDC); 9.48 W (PoE) Max (Heater + AI + IR): 19 W (12 VDC); 23.8 W (PoE) |
| Durability Rating | IP67 Weatherproof | IK10 Vandal-proof |
| Operational Temp | –40 °C to +65 °C (–40 °F to +149 °F) | Humidity ≤95% (RH) |
Structure
| Casing Material | Robust Metal |
|---|---|
| Product Dimensions | 150 mm × Φ159 mm (5.91" × Φ6.26") |
| Weight | Net Weight: 1.4 kg (3.09 lb) | Gross Weight: 1.9 kg (4.19 lb) |
