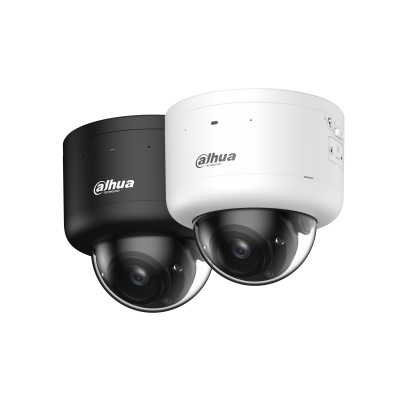

Dahua IPC-HDBW7859Z-Z4-PV-X 8MP Smart Dual Light Dome WizMind Network Camera

Name: Dahua IPC-HDBW7859Z-Z4-PV-X 8MP Smart Dual Light Dome WizMind Network Camera
Brand: CCTV-MALL
SKU: IPC-HDBW7859Z-Z4-PV-X
Price: 10000.00 USD
Availability: InStock

In stock

SKU: IPC-HDBW7859Z-Z4-PV-X

$10,000.00

Product variants

Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.

Ask Our Experts

Text Chat | Email |04407548784511

Order and Pricing Information for Surveillance Products

Minimum order amount: Orders must exceed $1000 or equivalent.
The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
Shipping costs: Shipping costs will be calculated separately and added to the total order value.
Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
Technical support: As authorized distributors, we provide official technical support.
Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.

Quality Certifications:

8MP 4K Smart Dual Light 8 mm–32 mm Vari-focal Active Deterrence WizMind Network Eyeball Camera

Key Highlights

8MP 4K Ultra-Clarity: Superior 3840 × 2160 resolution powered by a massive 1/1.8" CMOS sensor for unrivaled low-light performance.
8mm-32mm Telephoto Zoom: Motorized long-range vari-focal lens with P-Iris for precision focus and remote adjustment.
140dB Ultra-WDR & GIS: Industry-leading wide dynamic range and Gyroscope Image Stabilization (GIS) for steady, balanced footage in challenging environments.
Active Deterrence & Dual Audio: Features light and sound warnings (110dB speaker) for proactive defense. Built-in dual Mic for high-fidelity audio capture.
All-Weather Reliability: Built-in window heater removes ice and mist. Certified IP67 weatherproof and IK10 vandal-proof.
Elite AI Suite: Supports simultaneous dual-intelligence functions, PPE Detection, ANPR (up to 60km/h), Face Recognition (200,000 pictures), and Parking Space Management.

Imaging & Optics

Image Sensor

1/1.8" CMOS

Max. Resolution

3840 (H) × 2160 (V)

Wide Dynamic Range

140 dB WDR

Lens Technology

8 mm–32 mm Motorized Vari-focal | P-Iris Control

Field of View (H/V/D)

H: 41°–15°; V: 22°–9°; D: 47°–18°

Illumination Range

IR: Up to 80 m (262.47 ft) | Warm light: Up to 60 m (196.85 ft)

Stabilization

Gyroscope Image Stabilization (GIS)

High Frame Rate

Main stream: 3840 × 2160 @ (1–60 fps) | 1920 × 1080 @ (1–120 fps)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
W (8 mm)	224.0 m (734.91 ft)	89.6 m (293.96 ft)	44.8 m (146.98 ft)	22.4 m (73.49 ft)
T (32 mm)	564.0 m (1850.39 ft)	225.6 m (740.16 ft)	112.8 m (370.08 ft)	56.4 m (185.04 ft)

Elite Intelligence (WizMind)

PPE Detection	Triggers alarms for helmets, masks, safety vests, uniforms, gloves, shoe covers, etc. via self-learning AI.
ANPR	License plate, vehicle type/color/brand recognition. Up to 10,000 allow/blocklist records. Recognizes vehicles up to 60 km/h.
Face Recognition	Supports 5 face databases (up to 200,000 pictures). Extraction of 6 attributes and 8 expressions.
Perimeter Protection	Intrusion, tripwire, fast moving (Classification of human, vehicle, animal). Large-Scale AI Models for reduced false alarms.
Video Metadata	Attributes for motor vehicles (Logo, smoking, calling), non-motor vehicles (Top type/color, people number), and humans.
Advanced Analytics	Heat Map, People Counting (Tripwire/Area/Queue), Parking Space Management (Indoor/Outdoor).
Privacy Protection	Automatic mosaics/frosted glass over faces, human bodies, and vehicles.

Active Deterrence & Audio

Sound & Light Warning	Red/Blue light warning and 110dB Siren Deterrence to actively ward off intruders.
Audio Hardware	Built-in Dual Microphone \| Built-in Speaker (110dB at 10cm)
Audio Ports	1-ch RCA Input \| 1-ch RCA Output
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723

System Ports

Network Port	RJ-45 (10/100/1000 Base-T) - Gigabit Ethernet
RS-485 / Analog Output	1 RS-485 Port \| 1-ch CVBS output (BNC) for local monitoring
Alarm I/O	3-ch Input (Wet/Dry contact) \| 2-ch Output (Dry contact: 1,000 mA 30 VDC)
Power Output	12 VDC power output (max 165 mA) for external devices
Local Storage	Micro SD card (supports max. 1 TB)

Power & Protection

Power Supply	12 VDC (±30%) & 24 VAC (±30%) independent port; PoE+ (802.3at); ePoE support
Built-in Heater	Window Heating: Effectively removes water, ice, snow, and mist for all-weather clarity.
Power Consumption	Basic: 7.5 W (12 VDC); 9.48 W (PoE) Max (Heater + AI + IR): 19 W (12 VDC); 23.8 W (PoE)
Operating Conditions	–40 °C to +65 °C (–40 °F to +149 °F) \| Humidity ≤95% (RH)
Durability Rating	IP67 Weatherproof \| IK10 Vandal-proof

Structure

Casing Material	Professional-grade Metal
Product Dimensions	150 mm × Φ159 mm (5.91" × Φ6.26")
Weight	Net Weight: 1.4 kg (3.09 lb) \| Gross Weight: 1.9 kg (4.19 lb)
