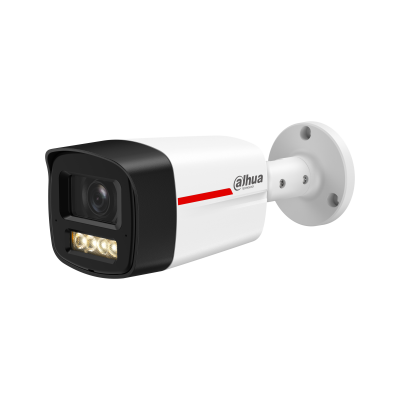

Dahua IPC-HFW2249TL-S-PROX 4MP WizColor Bullet Network Camera

Name: Dahua IPC-HFW2249TL-S-PROX 4MP WizColor Bullet Network Camera
Brand: Dahua
SKU: IPC-HFW2249TL-S-PROX
Price: 10000.00 USD
Availability: InStock

In stock

SKU: IPC-HFW2249TL-S-PROX

$10,000.00

Product variants

Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.

Ask Our Experts

Text Chat | Email |04407548784511

Order and Pricing Information for Surveillance Products

Minimum order amount: Orders must exceed $1000 or equivalent.
The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
Shipping costs: Shipping costs will be calculated separately and added to the total order value.
Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
Technical support: As authorized distributors, we provide official technical support.
Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.

Quality Certifications:

Dahua IPC-HFW2249TL-S-PROX 2MP WizColor X Fixed‑focal Bullet WizSense Network Camera – F0.8 Ultra‑bright Aperture, 2.8/3.6mm Lens Options

2MP WizColor X Bullet – Extreme Low‑Light Performance with F0.8 Aperture

2MP Full‑HD Imaging: 1920×1080 resolution from a large 1/1.8" CMOS sensor. Choose from 2.8mm (110° H) or 3.6mm (90° H) fixed lenses.
WizColor X Technology: Exceptional low‑light color imaging down to 0.00003 lux – delivers vivid, detailed full‑color images in virtually pitch‑black environments without white light.
Ultra‑Bright F0.8 Aperture: Industry‑leading F0.8 aperture captures maximum light for unparalleled night‑time color performance.
Built‑in Dual Microphone: Real‑time audio security with dual mics for stereo sound capture (no speaker).
Smart AI Functions: SMD Plus (Smart Motion Detection), IVS perimeter protection (intrusion/tripwire with human/vehicle classification).
120dB True WDR & AI Coding: 120dB WDR ensures clarity in high‑contrast scenes; Super AI Coding (Smart H.265+/H.264+) reduces bandwidth and storage.
Rugged Bullet Design: Metal casing, IP67 weatherproof, 3‑axis adjustment (Pan 360°, Tilt 90°, Rotation 360°), operating temperature -40°C to +60°C.

Camera Specification

Image Sensor	1/1.8" CMOS
Max. Resolution	1920 × 1080 (2MP 1080p)
ROM / RAM	Not specified (standard WizSense architecture)

Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination 0.00003 lux @ F0.8 (Color); 0 lux (illuminator on) S/N Ratio >56 dB Illumination Distance / Type Warm light up to 30 m (4 warm LEDs) | Auto/Manual control Angle Adjustment Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°

Lens & DORI Optics

Elite Intelligence (WizSense)

Lens Type / Mount

Fixed-focal (M18 mount) – 2.8mm or 3.6mm options

Max. Aperture

F0.8 (Ultra‑bright)

Iris Control

Fixed

Field of View

2.8mm: H: 110°, V: 58°, D: 131°
3.6mm: H: 90°, V: 48°, D: 107°

Close Focus Distance

2.8mm: 1.3 m (4.3 ft); 3.6mm: 1.7 m (5.6 ft)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
2.8 mm	41.3 m (136 ft)	16.5 m (54 ft)	8.3 m (27 ft)	4.1 m (13 ft)
3.6 mm	51.7 m (170 ft)	20.7 m (68 ft)	10.3 m (34 ft)	5.2 m (17 ft)

*DORI standard (EN-62676-4). For intelligent function distances, refer to project design tool.

Video & Audio Specifications

AI Functions	IVS perimeter protection (intrusion/tripwire with human/vehicle classification), SMD Plus
IVS Perimeter Protection	Intrusion, tripwire – supports accurate classification of vehicles and humans.
SMD Plus	Advanced Smart Motion Detection – filters out false alarms triggered by environmental changes.

Network, Storage & Cybersecurity

Video Compression / AI Coding	H.265; H.264; H.264H; H.264B; MJPEG (sub stream) \| Super AI Coding (AI H.265 / AI H.264, Smart H.265+/H.264+)
Streaming Capability	3 streams (main, sub, third)
Resolution	1080p (1920×1080), 1.3M, 720p, D1, VGA, CIF
Video Frame Rate	Main: 1080p @ 25/30 fps; Sub: D1 @ 25/30 fps; Third: CIF @ 1 fps (configurable)
Bit Rate Control / Range	VBR, CBR \| H.264: 32–6144 kbps; H.265: 12–6144 kbps
WDR & Image Enhancements	120 dB WDR; BLC; HLC; 3D NR; ROI (4 areas); Defog; Mirror; Smart Illumination; LDC
Special Features	Image Rotation, Privacy Masking (4 areas)
Audio Features	Built-in Dual Microphone (stereo, no speaker) Audio Compression: G.711a; G.711Mu; PCM; G.726 (No external audio I/O specified)

Physical I/O Interfaces

Network Port	RJ-45 (10/100 Base-T – Fast Ethernet)
Network Protocols	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; NFS; P2P; Auto Registration
Interoperability / Browser	ONVIF (Profile S/G/T); CGI \| IE, Chrome, Firefox
Local Storage	Micro SD card (max. 512 GB); FTP; SFTP
Cybersecurity	Digest; WSSE; Account lockout; Security logs; 802.1x; IP/MAC filtering; HTTPS; Syslog; Trusted boot/execution/upgrade; Session security; SSL/TLS1.2; AES 256; X.509 certification.
Management Software	SmartPSS Lite; DSS; DMSS; DoLynk Care \| iOS & Android

RS-485	Not specified
Audio I/O	Built‑in dual mic only (no external audio ports specified)
Alarm I/O	Not specified
Analog Output	Not specified

Power Output Not specified Alarm Events Extensive list including SD card errors, network issues, motion, tampering, tripwire, intrusion, audio detection, voltage detection, SMD, security exception, etc.

Power, Climate & Protection

Physical Structure

Power Supply	12 VDC (±30%), PoE (802.3af); Dual Power Backup (hot‑swap without restart)
Power Consumption	Basic: 1.6 W (12 VDC), 2.4 W (PoE) Max (AI + WDR + illumination on): 5.4 W (12 VDC), 6.5 W (PoE)
Operating Temperature / Humidity	–40 °C to +60 °C (–40 °F to +140 °F) \| ≤95% RH (non‑condensing)
Storage Temperature / Humidity	–40 °C to +60 °C, ≤95% RH
Protection Rating	IP67 (weatherproof)
Anti‑corrosion Level	Basic Protection (designed for general use)

Casing Material	Metal
Product Dimensions	205.6 mm × 80.2 mm × 76.2 mm (8.09" × 3.16" × 3.00") (L×W×H)
Net Weight / Gross Weight	0.61 kg (1.34 lb) / 0.76 kg (1.68 lb)
