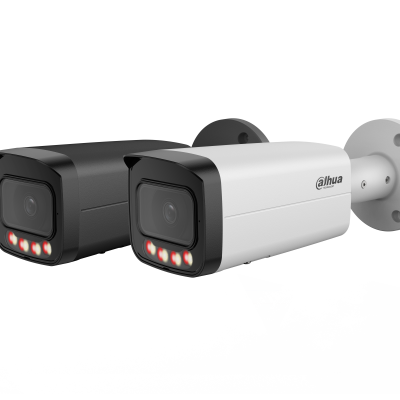

Dahua IPC-HFW5559T-ASE-IL 5MP 3K Smart Dual Light Bullet Camera, IK10 WizMind

Name: Dahua IPC-HFW5559T-ASE-IL 5MP 3K Smart Dual Light Bullet Camera, IK10 WizMind
Brand: CCTV-MALL
Price: 10000.00 USD
Availability: InStock

In stock

$10,000.00

Product variants

Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.

Ask Our Experts

Text Chat | Email |04407548784511

Order and Pricing Information for Surveillance Products

Minimum order amount: Orders must exceed $1000 or equivalent.
The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
Shipping costs: Shipping costs will be calculated separately and added to the total order value.
Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
Technical support: As authorized distributors, we provide official technical support.
Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.

Quality Certifications:

Dahua IPC-HFW5559T-ASE-IL 5MP Smart Dual Light Fixed-focal Bullet WizMind Network Camera

Key Highlights

5MP 3K High-Definition Clarity: Professional 1/2.7" CMOS sensor delivering 2960 × 1668 resolution for superior detail capture.
Xinghan Vision AI Models: Complete upgrade in detection range and imaging. Significantly reduces false alarms while extending target detection distance through self-learning AI.
Long-Range Smart Dual Light: Features 4 multi-core illuminators delivering up to 80 m (262.47 ft) IR and 60 m (196.85 ft) Warm Light with intelligent auto-switching.
Built-in Mic & Audio Security: Integrated high-sensitivity microphone for real-time audio surveillance. Supports 11 built-in and 10 custom sound alarms.
Elite Intelligence Suite: Powered by WizMind, including AcuPick, SMD 4.0, Face Detection (6 attributes/8 expressions), and Video Metadata.
Industrial Shield: Robust metal casing certified with IP67 weatherproof and IK10 vandal-proof ratings against catastrophic impacts.

Camera

Image Sensor	1/2.7" CMOS
Max. Resolution	2960 (H) × 1668 (V)
ROM / RAM	4 GB / 2 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.0009 lux @ F1.6 (Color, 30 IRE) 0.0005 lux @ F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio	> 56 dB
Illumination Distance	IR: Up to 80 m (262.47 ft) Warm light: Up to 60 m (196.85 ft)
Illuminator Control / Number	Auto; Manual \| 4 (Multi-core IR + warm light)
Angle Adjustment	Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°

Lens

Lens Type / Mount

Fixed-focal | M12

Focal Length Options

2.8 mm; 3.6 mm; 6 mm

Max. Aperture / Iris

F1.6 | Fixed Iris

Field of View (H/V/D)

2.8 mm: H: 108.4°; V: 60°; D: 127.1°
3.6 mm: H: 90.3°; V: 47.8°; D: 108.6°
6 mm: H: 56°; V: 30.3°; D: 65.4°

Close Focus Distance

2.8 mm: 1 m | 3.6 mm: 1.5 m | 6 mm: 3.2 m

DORI Distance

Lens	Detect	Observe	Recognize	Identify
2.8 mm	61.6 m (202.10 ft)	24.6 m (80.71 ft)	12.3 m (40.35 ft)	6.2 m (20.34 ft)
3.6 mm	78.0 m (255.91 ft)	31.2 m (102.36 ft)	15.6 m (51.18 ft)	7.8 m (25.59 ft)
6 mm	124.0 m (406.82 ft)	49.6 m (162.73 ft)	24.8 m (81.36 ft)	12.4 m (40.68 ft)

Intelligence & AI

IVS (Perimeter Protection)	Intrusion, tripwire, fast moving (supports classification of human, vehicle, and animal targets); loitering, gathering, parking, and stay detection. Utilizes Large-Scale AI Models for extended detection range and reduced false alarms.
SMD / AcuPick	SMD 4.0 \| AcuPick Deep learning algorithms (accurately matches targets including motor vehicles, people, and animals across live/recorded video).
Face Detection	Face detection, snapshot, snapshot optimization, face enhancement, face exposure. Extracts 6 attributes and 8 expressions. Snapshot strategies: real-time, quality priority, and optimization snapshot.
People Counting & Heat Map	Tripwire people counting (day/week/month/year reports). Area counting and queue management (day/week/month reports). Supports up to 4 configurable rule sets. Heat Map supported.
Video Metadata	Detection and attribute extraction for motor vehicle, non-motor vehicle, face, and human body. Optimal face snapshot upload supported.
Smart Search	Coordinates with Smart NVR for refined intelligent searches, event extraction, and event merging.

Video

Video Compression / AI Coding	H.265; H.264; H.264H; H.264B; MJPEG (sub stream) \| AI H.265; AI H.264 (Smart H.265+/Smart H.264+)
Video Frame Rate	Main stream: 2960 × 1668 @ (1 fps–25/30 fps); Supports 4 streams.
WDR / Noise Reduction	120 dB True WDR \| 3D NR
Image Stabilization	EIS (Electronic Image Stabilization)
Image Optimization	SSA, BLC, HLC, ROI (4 areas), Smart Illumination, Smart Dual Light, Defog, Mirror, LDC.
Image Rotation	0°/90°/180°/270° (90°/270° supported with 4M resolution and lower)

Audio & Alarm

Audio Hardware	Built-in Microphone \| 1-ch Input (RCA port), 1-ch Output (RCA port)
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Sound Warning	Offers 11 sound alarms and supports importing 10 custom sound alarms (Volume: 0–100, play times: 1–10).
Alarm Ports	1-ch Input (wet contact, 5 mA 3–5 VDC) \| 1-ch Output (wet contact, 300 mA 12 VDC)
Alarm Events	Motion detection, tampering, defocus detection, SD card events, network disconnection, illegal access, face detection, metadata, SMD, etc.

Network & Ports

Network Port / Protocols	RJ-45 (10/100 Enhancement Base-T) \| IPv4; IPv6; HTTP; TCP; UDP; ARP; RTSP; SMTP; FTP; SFTP; DHCP; NTP; P2P etc.
Interoperability / Browser	ONVIF (Profile S & Profile G & Profile T & Profile M); CGI \| IE 11+, Chrome 102+, Firefox 88+
Storage Options	FTP; SFTP; Micro SD card (supports max. 1 TB); NAS
Cybersecurity	Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; X.509 certification; HTTPS; 802.1x; Trusted boot/execution/upgrade.

Power & Environment

Power Supply / ePoE	12 VDC (±30%); PoE+ (802.3at) \| ePoE supported
Dual Power Backup	Supported (Continuous operation when separating adapter and PoE power lines without restart)
Power Consumption	Basic: 4.2 W (12 VDC); 6.3 W (PoE) Max. (H.265 + WDR+ warm light + intelligence on): 13.3 W (12 VDC); 15.6 W (PoE)
Operating Conditions	–40 °C to +60 °C (–40 °F to +140 °F) \| Humidity ≤95% (RH)
Protection Rating	IP67 Weatherproof \| IK10 Vandal-proof

Structure

Casing Material	Metal
Product Dimensions	238.0 mm × 90.7 mm × 90.7 mm (9.37" × 3.57" × 3.57") (L × W × H)
Weight	Net Weight: 835 g (1.84 lb) \| Gross Weight: 1090 g (2.4 lb)
