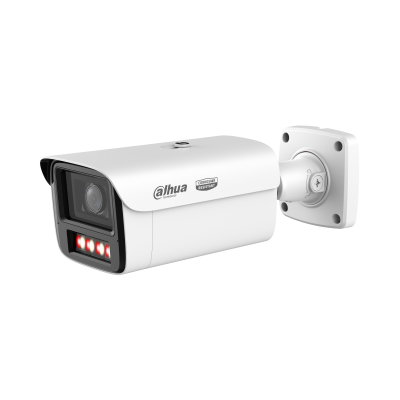

Dahua IPC-HFW5659Z-Z4HE-PV-PRO-ATC 6MP Anti-Corrosion Bullet Network Camera

Name: Dahua IPC-HFW5659Z-Z4HE-PV-PRO-ATC 6MP Anti-Corrosion Bullet Network Camera
Brand: Dahua
SKU: IPC-HFW5659Z-Z4HE-PV-PRO-ATC
Price: 100000.00 USD
Availability: InStock

In stock

SKU: IPC-HFW5659Z-Z4HE-PV-PRO-ATC

$100,000.00

Product variants

Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.

Ask Our Experts

Text Chat | Email |04407548784511

Order and Pricing Information for Surveillance Products

Minimum order amount: Orders must exceed $1000 or equivalent.
The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
Shipping costs: Shipping costs will be calculated separately and added to the total order value.
Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
Technical support: As authorized distributors, we provide official technical support.
Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.

Quality Certifications:

Dahua IPC-HFW5659Z-Z4HE-PV-PRO-ATC 6MP WizColor Anti‑corrosion Vari‑focal Bullet WizMind Network Camera – 8‑32mm P-Iris Zoom, 130dB WDR, Window Heating, Active Deterrence, NEMA 4X

6MP WizColor Anti‑corrosion Bullet – 4x Telephoto Zoom, Window Heating, Active Deterrence & Professional Protection

6MP Ultra‑HD Imaging: 3072×2048 resolution from a large 1/1.8" CMOS sensor. Motorized 8‑32mm P-Iris zoom (4x) with F1.6 aperture – detection range up to 564m (1,850 ft).
WizColor Technology & Xinghan Vision Models: Extreme low‑light color imaging down to 0.0006 lux – delivers vivid, detailed full‑color images in near‑darkness. Comprehensive enhancement of target detection and imaging, longer detection distance.
Long‑Range Smart Dual Light with Zoomprio: 4 multi‑core IR+warm LEDs. IR up to 120m, warm light up to 80m. Illumination intensity automatically adjusts with zoom position.
Window Heating (Glass Heating): Quickly removes water, ice, snow, and mist from the glass to keep images clear in harsh weather conditions.
Built‑in Dual Mic & Speaker: Secure real‑time two‑way talk and audio alarm broadcast.
Advanced AI & AcuPick: IVS perimeter protection (intrusion/tripwire/fast moving with human/vehicle/animal classification), SMD 4.0, AcuPick, face detection, people counting, heat map, video metadata.
130dB True WDR & AI Coding: 130dB WDR ensures clarity in high‑contrast scenes; AI H.265/H.264 (Smart H.265+/H.264+) reduces bandwidth and storage.
Professional Anti‑corrosion (NEMA 4X, C5-H): Metal casing with premium anti‑corrosion protection. Ideal for chemical plants, docks, coastlines (up to 2km from sea), and acid rain areas.
Rugged Vandal‑proof Bullet: IP67 weatherproof, IK10 vandal‑resistant, 3‑axis adjustment (Pan 360°, Tilt 90°, Rotation 360°), operating temperature -40°C to +60°C.

Camera Specification

Lens & DORI Optics

Image Sensor	1/1.8" CMOS
Max. Resolution	3072 × 2048 (6MP)
ROM / RAM	4 GB / 2 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.0006 lux @ F1.6 (Color, 30 IRE); 0.0003 lux (B/W); 0 lux (illuminator on)
S/N Ratio	>56 dB
Illumination Distance / Type	IR up to 120 m, warm light up to 80 m (4 multi‑core IR+warm LEDs); Zoomprio control
Angle Adjustment	Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°

Elite Intelligence (WizMind)

Lens Type / Mount

Motorized vari-focal (Module mount)

Focal Length / Aperture

8 mm–32 mm (4x optical zoom) | F1.6

Iris Control Type

Auto (P-Iris)

Field of View

H: 41°–15°, V: 22°–9°, D: 47°–18°

Close Focus Distance

1.5 m (4.92 ft)

DORI Distance

Lens Mode	Detect	Observe	Recognize	Identify
Wide (8mm)	224.0 m (735 ft)	89.6 m (294 ft)	44.8 m (147 ft)	22.4 m (73 ft)
Tele (32mm)	564.0 m (1850 ft)	225.6 m (740 ft)	112.8 m (370 ft)	56.4 m (185 ft)

*DORI standard (EN-62676-4). For intelligent function distances, refer to project design tool.

Video & Audio Specifications

AI Functions	IVS perimeter protection, SMD 4.0, AcuPick, face detection, people counting, heat map, video metadata
IVS Perimeter Protection	Intrusion, tripwire, fast moving (human/vehicle/animal classification), loitering, gathering, parking, stay detection. Large‑scale AI models extend detection range and reduce false alarms. Supports self‑learning.
SMD 4.0	Smart Motion Detection – filters out false alarms caused by environmental changes.
AcuPick	Deep learning target matching with back‑end NVR for rapid human/vehicle search.
Face Detection	6 attributes + 8 expressions. Snapshot optimization, face enhancement, angle filter.
People Counting & Heat Map	Tripwire/area/queue counting, report export (day/week/month/year). Heat map supported.
Video Metadata	Motor vehicle (6 attributes), non‑motor vehicle (6 attributes), face (6 attributes), human body (8 attributes).

Network, Storage & Cybersecurity

Video Compression / AI Coding	H.265; H.264; H.264H; H.264B; MJPEG (sub stream) \| AI H.265 / AI H.264 (Smart H.265+/H.264+)
Streaming Capability	4 streams (main, sub, third, fourth)
Resolution	6M (3072×2048/3200×1800), 5M, 4M, 3M, 1080p, 720p, D1, VGA, CIF
Video Frame Rate	Main: 6MP @ 25/30 fps; Sub: D1 @ 25/30 fps; Third: 1080p @ 25/30 fps; Fourth: 720p @ 25/30 fps
Bit Rate Control / Range	VBR, CBR \| H.264/H.265: 3–16384 kbps
WDR & Image Enhancements	130 dB WDR; SSA; BLC; HLC; 3D NR; ROI (4 areas); Defog; Mirror; Smart Illumination; EIS
Special Features	Image Rotation, Privacy Masking (4 mosaics or 8 color blocks)
Audio Features	Built-in Dual Mic + Built-in Speaker (two‑way talk) Audio Compression: G.711a; G.711Mu; PCM; G.726; G.723 External: 1‑ch RCA input, 1‑ch RCA output

Physical I/O Interfaces

Network Port	RJ-45 (10/100 Base-T – Fast Ethernet)
Network Protocols	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
Interoperability / Browser	ONVIF (Profile S/G/T/M); CGI \| IE11+, Chrome 102+, Firefox 88+
Local Storage	Micro SD card (max. 1 TB); FTP; SFTP; NAS
Cybersecurity	Digest; WSSE; Account lockout; Security logs; 802.1x; IP/MAC filtering; HTTPS; Syslog; Trusted boot/execution/upgrade; Session security; X.509 certification.
Management Software	DSS; DMSS; DoLynk Care \| iOS & Android

RS-485

1 port (1200–115200 bps)

Audio I/O

1‑ch RCA input, 1‑ch RCA output (in addition to built‑in dual mic & speaker)

Alarm I/O

2 alarm inputs (wet/dry contact), 2 alarm outputs (dry contact, 1000 mA 30 VDC / 500 mA 50 VAC)

Analog Output

Not specified

Power Output

12 VDC, max 165 mA (peak 700 mA)

Alarm Events

Extensive list including SD card errors, network issues, motion, tampering, tripwire, intrusion, fast moving, loitering, parking, scene changing, audio detection, voltage detection, defocus, face detection, SMD, people counting, queue alarms, etc.

Power, Climate & Protection

Physical Structure

Power Supply	12 VDC (±30%), PoE+ (802.3at), ePoE; Dual Power Backup (hot‑swap without restart)
Window Heating	Yes – quickly removes water, ice, snow, and mist from the glass.
Power Consumption	Basic: 5.3 W (12 VDC), 6.4 W (PoE) Max (IR + active deterrence + AI + window heating): 21.3 W (12 VDC), 24.2 W (PoE) Heating: 3.2 W (12 VDC), 3.6 W (PoE)
Operating Temperature / Humidity	–40 °C to +60 °C (–40 °F to +140 °F) \| ≤95% RH (non‑condensing)
Storage Temperature / Humidity	–40 °C to +60 °C, ≤95% RH
Protection Ratings	IP67 (weatherproof), IK10 (vandal‑proof)
Anti‑corrosion Level	Professional Protection – NEMA 4X, C5‑H certified. Ideal for chemical plants, docks, coastlines (up to 2 km from sea), and acid rain areas.

Casing Material	Metal
Product Dimensions	302.6 mm × 110.8 mm × 99.1 mm (11.91" × 4.36" × 3.90") (L×W×H)
Net Weight / Gross Weight	1.65 kg (3.64 lb) / 2.21 kg (4.87 lb)
