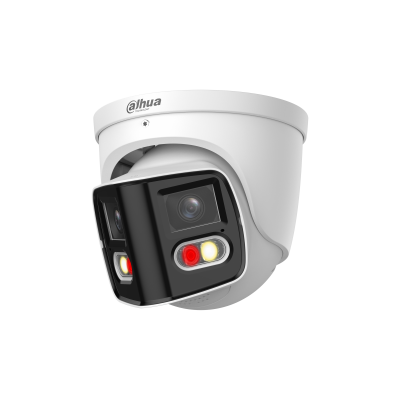

Dahua IPC-PDW2849-A180-S-PV 8MP Smart Dual Light Dome Network Camera
Regular price
$10,000.00
Couldn't load pickup availability
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
 |
 |
Ask Our Experts
|
Please note the following important details when ordering surveillance products from CCTV-MALL: |
Quality Certifications: |
Dahua IPC-PDW2849-A180-S-PV 2×4MP Duo Splicing Fixed‑focal Eyeball WizSense Network Camera – 180° Panoramic, Smart Dual Light, EPTZ
8MP 180° Panoramic Duo Splicing Eyeball – Sound & Light Active Deterrence
- 8MP Ultra‑HD Panoramic Imaging: Dual 1/2.7" CMOS sensors deliver seamless 180° stitching at 4096×1860 resolution using pixel‑level splicing fusion.
- F1.4 Aperture & Smart Dual Light: 2 IR LEDs + 2 warm LEDs provide up to 25m IR and 20m warm light with 3 illumination modes.
- Active Deterrence: Warm light warning + sound alarm (11 pre‑set + 10 custom sounds) – instantly deters intruders.
- Built‑in Dual Mic & Speaker: Secure real‑time two‑way talk with 110dB max sound level for powerful audio alarm broadcast.
- EPTZ Electronic Tracking: Automatically enlarges and tracks intelligent alarm targets.
- Advanced AI Functions: IVS perimeter protection (intrusion/tripwire with human/vehicle classification), SMD 3.0, 120dB WDR.
- Rugged Eyeball Design: Metal casing, IP67 weatherproof, 3‑axis adjustment (Pan 360°, Tilt 77°, Rotation 360°), operating temperature -40°C to +60°C.
Camera Specification
| Image Sensor | Dual 1/2.7" CMOS |
|---|---|
| Max. Resolution | 4096 × 1860 (8MP) |
| ROM / RAM | 128 MB / 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.005 lux @ F1.4 (Color, 30 IRE); 0.0005 lux (B/W); 0 lux (illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance / Type | IR up to 25 m, warm light up to 20 m (2 IR LEDs + 2 warm LEDs); Smart Dual Light with Auto/Manual control |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–77°, Rotation: 0°–360° |
Lens & DORI Optics
| Lens Type / Mount | Fixed-focal (M12 mount) – 2.8mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Aperture | F1.4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Iris Control | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Field of View | H: 180° (stitched), V: 86° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Close Focus Distance | 0.8 m (2.62 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DORI Distance |
*DORI standard (EN-62676-4). For intelligent function distances, refer to project design tool.
|
| AI Functions | IVS perimeter protection, SMD 3.0, EPTZ electronic tracking |
|---|---|
| IVS Perimeter Protection | Intrusion, tripwire – supports accurate classification of vehicles and humans. |
| SMD 3.0 | Smart Motion Detection – filters out false alarms caused by environmental changes. |
| EPTZ | Electronic enlarge and track targets of intelligent alarms automatically. |
Video & Audio Specifications
| Video Compression / Smart Codec | H.265; H.264; H.264H; H.264B; MJPEG (sub stream) | Smart H.265+ / Smart H.264+ |
|---|---|
| Streaming Capability | 3 streams (main, sub, third) |
| Resolution | 8M (4096×1860), 6M (3632×1632), 4M (3040×1368), 1920×860, 1200×536, 960×432, D1 |
| Video Frame Rate | Main: 4096×1860 @ 20 fps; Sub/Third: up to 20 fps (configurable) |
| Bit Rate Control / Range | VBR, CBR | H.264/H.265: 6–16384 kbps |
| WDR & Image Enhancements | 120 dB WDR; SSA; BLC; HLC; 3D NR; ROI (4 areas); Defog; Smart Illumination |
| Audio Features |
Built-in Dual Mic + Built-in Speaker (max 110dB @ 10cm, 2W) Audio Compression: G.711a; G.711Mu; G.726; PCM External audio I/O not specified |
Network, Storage & Cybersecurity
| Network Port | RJ-45 (10/100 Base-T – Fast Ethernet) | |||
|---|---|---|---|---|
| Network Protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P | |||
| Interoperability / Browser | ONVIF (Profile S/G/T/M); CGI | IE8+, Chrome, Firefox | |||
| Local Storage | Micro SD card (max. 512 GB); FTP; SFTP; NAS | |||
| Cybersecurity | Digest; WSSE; Account lockout; Security logs; 802.1x; IP/MAC filtering; HTTPS; Syslog; Trusted boot/execution/upgrade; X.509 certification. | |||
| Management Software | SmartPSS Lite; DSS; DMSS; DoLynk Care | iOS & Android |
| RS-485 | Not specified | |||
|---|---|---|---|---|
| Audio I/O | Built‑in dual mic & speaker only (no external ports specified) | |||
| Alarm I/O | Not specified | Analog Output | Not specified | |
| Power Output | Not specified | |||
| Alarm Events | Extensive list including SD card errors, network issues, motion, tampering, tripwire, intrusion, audio detection, voltage detection, SMD, security exception, etc. |
| Power Supply | 12 VDC (±30%), PoE (802.3af) | |||
|---|---|---|---|---|
| Power Consumption | Basic: 4.5 W (12 VDC), 5.3 W (PoE) Max (H.265 + WDR + light on + AI on): 9.7 W (12 VDC), 11.2 W (PoE) |
Operating Temperature / Humidity | –40 °C to +60 °C (–40 °F to +140 °F) | ≤95% RH (non‑condensing) | |
| Storage Temperature / Humidity | –40 °C to +60 °C, ≤95% RH | |||
| Protection Rating | IP67 (weatherproof) |
Physical Structure
| Casing Material | Metal |
|---|---|
| Product Dimensions | 135.2 mm × Φ122.0 mm (5.32" × Φ4.80") (H × D) |
| Net Weight / Gross Weight | 0.95 kg (2.09 lb) / 1.11 kg (2.45 lb) |
