Home » Dahua IPC-PFW5849-A180-E2-ASTE 2×4MP Full-color Duo Splicing WizMind Network Camera, 180° Panoramic, F1.0, 140dB WDR, Built-in Mic & Speaker, IP67
CCTV-MALL

Dahua IPC-PFW5849-A180-E2-ASTE 2×4MP Full-color Duo Splicing WizMind Network Camera, 180° Panoramic, F1.0, 140dB WDR, Built-in Mic & Speaker, IP67

In stock
$10,000.00
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
  • Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
    • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:

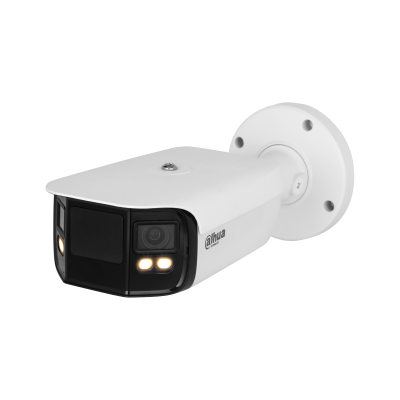

Dahua IPC-PFW5849-A180-E2-ASTE 2×4MP Full‑color Duo Splicing WizMind Network Camera – 180° Panoramic, F1.0, 140dB WDR

2×4MP Full‑color 180° Panoramic Bullet Camera with Built‑in Audio

  • 2×4MP High‑Quality Imaging: Dual 1/1.8" CMOS sensors deliver seamless 180° wide‑angle stitching at 4096×1800 resolution.
  • Full‑color & Ultra‑Bright F1.0 Aperture: Exceptional low‑light performance (0.0005 lux color) ensures vivid, full‑color images even in near darkness.
  • 140dB True WDR & AI Coding: 140dB WDR maintains clarity in strong backlight; AI H.265/H.264 (Smart H.265+/H.264+) reduces bandwidth and storage.
  • Built‑in Dual Mic & Speaker: Secure real‑time two‑way talk – ideal for interactive applications and audio alarm broadcast.
  • Intelligent Functions: Perimeter protection (IVS), heat map, abandoned/missing object detection, people counting (enter/leave/pass/area/queue).
  • Flexible Installation & Rugged Design: Pan 360°, Tilt 0°–90°, Rotation 360°. IP67 weatherproof metal+plastic casing, -40°C to +60°C operation.
  • Wide Compatibility: ONVIF (Profile S/G/T), CGI, Milestone, 512GB microSD card support, PoE+/ePoE.

Camera Specification

Image Sensor Dual 1/1.8" CMOS
Max. Resolution 4096 × 1800 (2×4MP spliced)
ROM / RAM 128 MB / 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.0005 lux @ F1.0 (Color, 30 IRE); 0.0002 lux (B/W); 0 lux (illuminator on)
S/N Ratio >56 dB
Illumination Distance / Type Up to 40 m (warm light) | 4 warm LEDs | Auto control Pan/Tilt/Rotation Range Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°

Lens & DORI Optics

Lens Type / Mount Fixed-focal (M16 mount)
Focal Length / Aperture 3.6 mm | F1.0
Iris Control Fixed
Field of View H: 180°±10°, V: 48° (stitched)
Close Focus Distance 3.6 m (11.81 ft)
DORI Distance
Lens Detect Observe Recognize Identify
3.6 mm 70.3 m (231 ft) 28.1 m (92 ft) 14.1 m (46 ft) 7.0 m (23 ft)
*DORI standard (EN-62676-4). For intelligent function distances, refer to project design tool.

Elite Intelligence (WizMind)

Video & Audio Specifications

AI Functions Perimeter protection (IVS), heat map, smart abandoned/missing object detection, people counting (enter/leave/pass/area/queue)
IVS Perimeter Protection Intrusion, tripwire, fast moving (human/vehicle classification), loitering, gathering, parking detection
People Counting Tripwire counting (enter/leave/pass) with yearly/monthly/daily reports; area counting and queue management (4 rules each) with linkage alarms.
Heat Map Yes
Smart Object Detection Abandoned object; missing object

Power, Climate & Protection

Video Compression / AI Coding H.265; H.264; H.264H; H.264B; MJPEG (sub stream) | AI H.265 / AI H.264 (Smart H.265+/H.264+)
Stream Capability 3 streams (main, sub, third)
Resolution 8M (4096×1800), 6.5M (3840×1680), 4M (3840×1080/2880×1264), 1.6M (1920×832), 0.7M (1280×560), 0.5M (1024×452)
Video Frame Rate WDR Off: Main 4096×1800 @ 25 fps; Sub/Third up to 25 fps
WDR On: Main @ 20 fps; Sub/Third @ 20 fps
Bit Rate Control / Range VBR, CBR | H.264/H.265: 9–8192 kbps
WDR & Image Enhancements 140 dB WDR; SSA; BLC; HLC; 3D NR; ROI (4 areas); Defog
Audio Features Built-in Mic + Built-in Speaker (two‑way talk)
Audio Compression: G.711a; G.711Mu; PCM; G.726; G.723
External: 1‑ch RCA input, 1‑ch RCA output

Network, Storage & Cybersecurity

Network Port RJ-45 (10/100 Base-T – Fast Ethernet)
Network Protocols IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; Bonjour
Interoperability / Browser ONVIF (Profile S/G/T); CGI; Milestone | IE11+, Chrome, Firefox
Local Storage Micro SD card (max. 512 GB); FTP; SFTP; NAS
Cybersecurity Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; 802.1x; IP/MAC filtering; HTTPS; Syslog; Trusted boot/execution/upgrade; X.509 certification.
Management Software SmartPSS; DSS; DMSS | iOS & Android

Physical I/O Interfaces

RS-485 Not specified
Audio I/O 1‑ch RCA input, 1‑ch RCA output (in addition to built‑in mic & speaker)
Alarm I/O 1 alarm input (wet contact, 5 mA 3–5 VDC)
1 alarm output (wet contact, 300 mA 12 VDC)
Analog Output Not specified
Power Output Not specified
Alarm Events Extensive list including SD card errors, network issues, motion, tampering, tripwire, intrusion, fast moving, abandoned/missing object, loitering, parking, scene changing, audio detection, voltage detection, SMD, people counting, queue alarms, etc.
Power Supply 12 VDC (±30%), PoE+ (802.3at), ePoE
Power Consumption Basic: 4.8 W (12 VDC), 5.5 W (PoE)
Max (WDR + AI + warm light + speaker): 12.3 W (12 VDC), 13.8 W (PoE)
Operating Temperature / Humidity –40 °C to +60 °C (–40 °F to +140 °F) | ≤95% RH
Storage Temperature –40 °C to +60 °C
Protection Rating IP67 (weatherproof)
Anti‑corrosion Level Not specified (basic protection assumed)

Physical Structure

Casing Material Metal + plastic
Product Dimensions 301.2 mm × 128.2 mm × 120.1 mm (11.86" × 5.05" × 4.73") (L×W×H)
Net Weight / Gross Weight 1420 g (3.13 lb) / 1570 g (3.46 lb)
