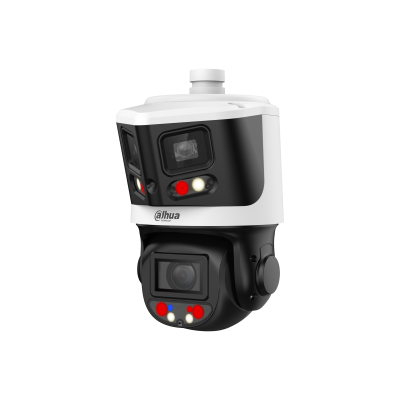

Dahua SDT3E410-8P-MB-A-PV1 8MP+4MP 10x Starlight TiOC Network Panoramic & PTZ Camera

Name: Dahua SDT3E410-8P-MB-A-PV1 8MP+4MP 10x Starlight TiOC Network Panoramic & PTZ Camera
Brand: Dahua
SKU: SDT3E410-8P-MB-A-PV1
Price: 10000.00 USD
Availability: InStock

In stock

SKU: SDT3E410-8P-MB-A-PV1

$10,000.00

Product variants

Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.

Ask Our Experts

Text Chat | Email |04407548784511

Order and Pricing Information for Surveillance Products

Minimum order amount: Orders must exceed $1000 or equivalent.
The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
Shipping costs: Shipping costs will be calculated separately and added to the total order value.
Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
Technical support: As authorized distributors, we provide official technical support.
Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.

Quality Certifications:

Dahua SDT3E410-8P-MB-A-PV1 8MP+4MP 10x Starlight TiOC Panoramic & PTZ Camera – Active Deterrence, 500m DORI

Key Performance Highlights – Dual-Channel Panoramic + PTZ with Active Deterrence

Dual-Channel Coverage: 8MP overview channel (1/2.8" CMOS, 2.8 mm, 180° H FOV) captures wide-area situational awareness; 4MP PTZ detail channel (1/2.8" CMOS, 4–40 mm motorized zoom, 10× optical zoom) provides close-up details.
Active Deterrence – Red/Blue Lights & Siren: Built-in red and blue warning lights (adjustable flash duration/frequency) + 11 built-in voice alarms (plus 10 custom imports) for real-time threat intervention.
Smart Dual Light Illumination: Overview: 30 m IR + 30 m white light; PTZ: 70 m IR + 30 m white light – optimal night visibility for both channels.
Advanced AI & Tracking: Deep learning human/vehicle classification, IVS perimeter protection, Auto Tracking Lite / WizTracking (Xinghan AI-driven human tracking), relay tracking and linkage tracking (X-SPANS series), AcuPick for fast target search.
Face Detection & Auto Patrol: PTZ channel supports face detection (6 attributes, 8 expressions). After IVS alarm, can link up to 5 presets/scans for auto patrol.
Extreme DORI & Rugged Protection: Tele end detection up to 500 m (1,640 ft). IP66 weatherproof, TVS 6000V surge protection, –30°C to +60°C operation.
Two-Way Talk & Flexible PTZ: Built-in mic and speaker for real-time communication. PTZ: pan 0–345°, tilt -10–90°; manual speed up to 80°/s.
Smart Encoding & Storage: Smart H.265+/H.264+, supports Micro SD up to 512 GB, FTP, NAS.

Camera Specification – Dual Channel (Overview + PTZ)

Image Sensor	Overview: 1/2.8" CMOS; PTZ: 1/2.8" CMOS
Max. Resolution	Overview: 8MP – 5376 (H) × 1520 (V) PTZ: 4MP – 2560 (H) × 1440 (V)
ROM / RAM	Overview: 4 GB ROM / 2 GB RAM PTZ: 4 GB ROM / 1 GB RAM
Electronic Shutter Speed	Overview: 1 s–1/100,000 s; PTZ: 1 s–1/30,000 s
Scanning System	Progressive (both)
Min. Illumination	Both: Color 0.005 lux@F1.6, B/W 0.0005 lux@F1.6, 0 lux (illuminator on) Note: PTZ spec table had typo; aligned with overview.
Illumination Distance & Type	Overview: 30 m IR + 30 m white light (2 IR + 2 white LEDs) PTZ: 70 m IR + 30 m white light (2 dual-light fusion + 2 IR LEDs)
Illuminator Control	Overview: Manual/Auto/Off; PTZ: Zoom Prio/Manual/Auto/Off

Lens & Field of View / DORI

Overview Lens

Fixed 2.8 mm, F1.6; FOV H: 180°, V: 47°; close focus 0.6 m

PTZ Lens

Motorized 4 mm–40 mm (10× zoom), F1.6–F3.6; FOV H: 58°–11.3°, V: 33.1°–6.4°, D: 66.4°–12.8°; close focus 0.1–0.5 m

DORI Distance (PTZ Tele)

Detect	Observe	Recognize	Identify
500 m (1640.42 ft)	197.5 m (647.97 ft)	100 m (328.08 ft)	50 m (164.04 ft)

Note: Optical detection distances per EN-62676-4; intelligent function distances may vary.

TiOC Intelligence & Active Deterrence

IVS (Perimeter Protection)	Tripwire, intrusion, crossing fence, loitering, abandoned/missing object, fast moving, parking detection, people gathering, human/vehicle classification, linkage tracking (people only).
Face Detection (PTZ only)	Supports detection, optimization, snapshot, enhancement; 6 attributes + 8 expressions; face cutout (face/one-inch photo); real-time/quality-first/optimization strategies.
Auto Tracking & Smart Tracking	Auto Tracking Lite; WizTracking (Xinghan AI-driven human tracking); Relay tracking (continues after target exits overview); Linkage tracking (tracks only targets visible in overview) – both for X-SPANS series only.
Auto Patrol	After IVS alarm, can link up to 5 presets or scans to patrol key areas; IVS can be enabled with SMD simultaneously.
SMD / AcuPick	SMD supported; AcuPick (overview channel) – deep learning for fast human/vehicle search across live/recorded video.
Active Deterrence – Light & Sound	Light Warning: Red and blue lights, flash duration 5–30 s, frequency high/medium/low. Sound Warning: 11 built-in + 10 custom voice alarms, volume 0–100%, play times 1–10.

Video & Audio Specifications – 3 Streams per Channel

Compression / Smart Codec	Smart H.265+; H.265; Smart H.264+; H.264H; H.264B; H.264M; MJPEG (sub stream 1)
Streaming Capability	3 streams per channel
Resolution Options	Overview: 5376×1520, 2688×752, 1080p, 720p, 1344×368, D1, CIF PTZ: 2560×1440, 3M, 1080p, 1.3M, 720p, D1, CIF
Video Frame Rate	Overview main: 5376×1520 @ 1–25/30 fps Overview sub 1: 1344×368/D1/VGA/CIF @ 1–25/30 fps Overview sub 2: 2688×752/1080p/1.3M/720p @ 1–25/30 fps PTZ main: 4M/3M/1080p/1.3M/720p @ 1–25/30 fps PTZ sub 1: D1/VGA/CIF @ 1–25/30 fps PTZ sub 2: 1080p/1.3M/720p @ 1–25/30 fps
Bit Rate Control / Bit Rate	VBR/CBR. Overview: H.264 128–16384 kbps, H.265 51–13312 kbps; PTZ: H.264 96–16384 kbps, H.265 38–10240 kbps
WDR & Image Enhancements	Overview: DWDR; PTZ: 120 dB True WDR BLC, HLC, 2D/3D NR, ROI, Electronic Defog (both), EIS (PTZ only), Digital Zoom 16× (PTZ only), Image Rotation 180° (PTZ only)
Privacy Masking	Up to 24 areas (max 8 in same view), multiple colors and mosaic selectable
Audio	Overview: PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729; PTZ: NA (but built-in speaker/mic shared via overview?) – system uses overview audio I/O.

PTZ Specifications & Control

Pan/Tilt Range	Pan: 0°–345°; Tilt: -10°–+90°
Manual Control Speed (PTZ)	H: 0.1–80°/s; V: 0.1–50°/s
Preset Speed	H: 80°/s; V: 50°/s	Preset / Tour	300 presets; 8 tours (up to 32 presets per tour)
Power-off Memory / Idle Motion	Yes; Preset; Tour

Network, Storage & Cybersecurity

I/O Interfaces & Alarm

Network Port	RJ-45 (100 Base-T)
Network Protocols	FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; QoS; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; RTSP; ARP
Interoperability	ONVIF (Profile S/G/T); CGI; SDK; P2P
Local Storage	Micro SD card (max 512 GB); FTP/SFTP; NAS
User/Host / Bandwidth	20 users (total bandwidth 64 Mbps)
Cybersecurity	WSSE, account lockout, HTTPS, IP/MAC filtering, security logs, trusted boot/execution/upgrade, 802.1x, syslog, X.509
Management Software / Browser	DMSS; DSS Pro; IE9+, Chrome 41+, Firefox 50+, Safari 10+; iOS/Android

Power, Environment & Protection

Audio Input / Output	1 LINE IN (bare wire, mutually exclusive with built-in mic); 1 LINE OUT (bare wire, mutually exclusive with built-in speaker)
Alarm Input / Output	1 input (0–5 VDC) + 1 output
Alarm Linkage	Capture; recording; send email; preset; alarm output; audio; warning light
Alarm Event	Motion/tampering; network disconnection; IP conflict; SD card status; storage space

Physical Structure

Power Supply	12 VDC, 3 A ±10% OR PoE+ (802.3at)
Power Consumption	Basic: 12 W; Max (illuminator + heater + siren/light active deterrence + PTZ): 25 W
Operating Temperature / Humidity	–30 °C to +60 °C (–22 °F to +140 °F) \| ≤95% RH
Protection Ratings	IP66 (weatherproof), TVS 6000V lightning/surge/voltage transient protection
Certifications	CE: EN55032/EN55035/IEC61000-3-2/IEC61000-3-3/EN62368-1/IEC62471

Casing Material	Metal + plastic
Product Dimensions	140.3 mm × 181.7 mm × 238.8 mm (5.52" × 7.15" × 9.40") (L×W×H)
Net Weight / Gross Weight	2.17 kg (4.78 lb) / 3.1 kg (6.83 lb)
Note	Preset precision may vary by series; consult sales for high-precision requirements.
