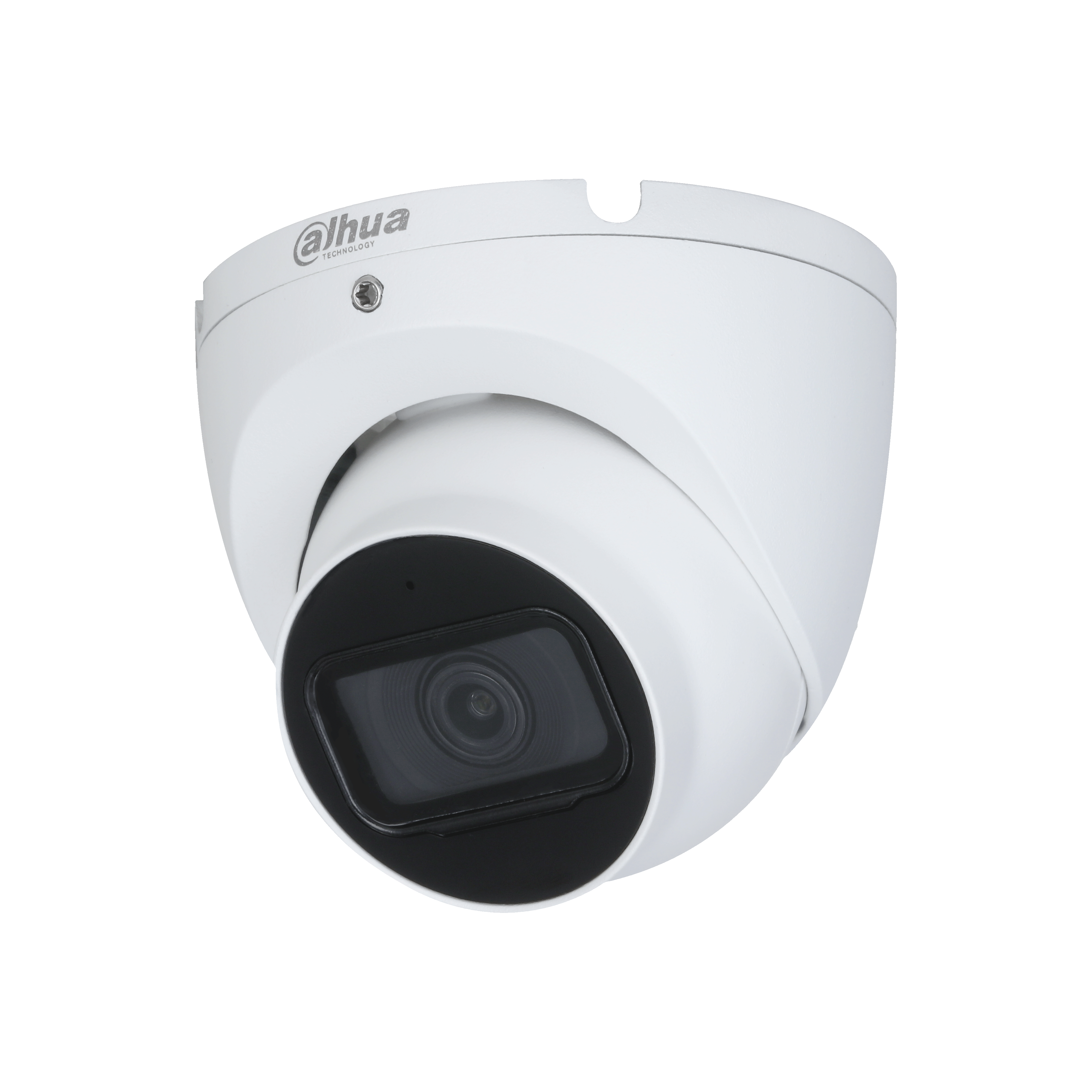

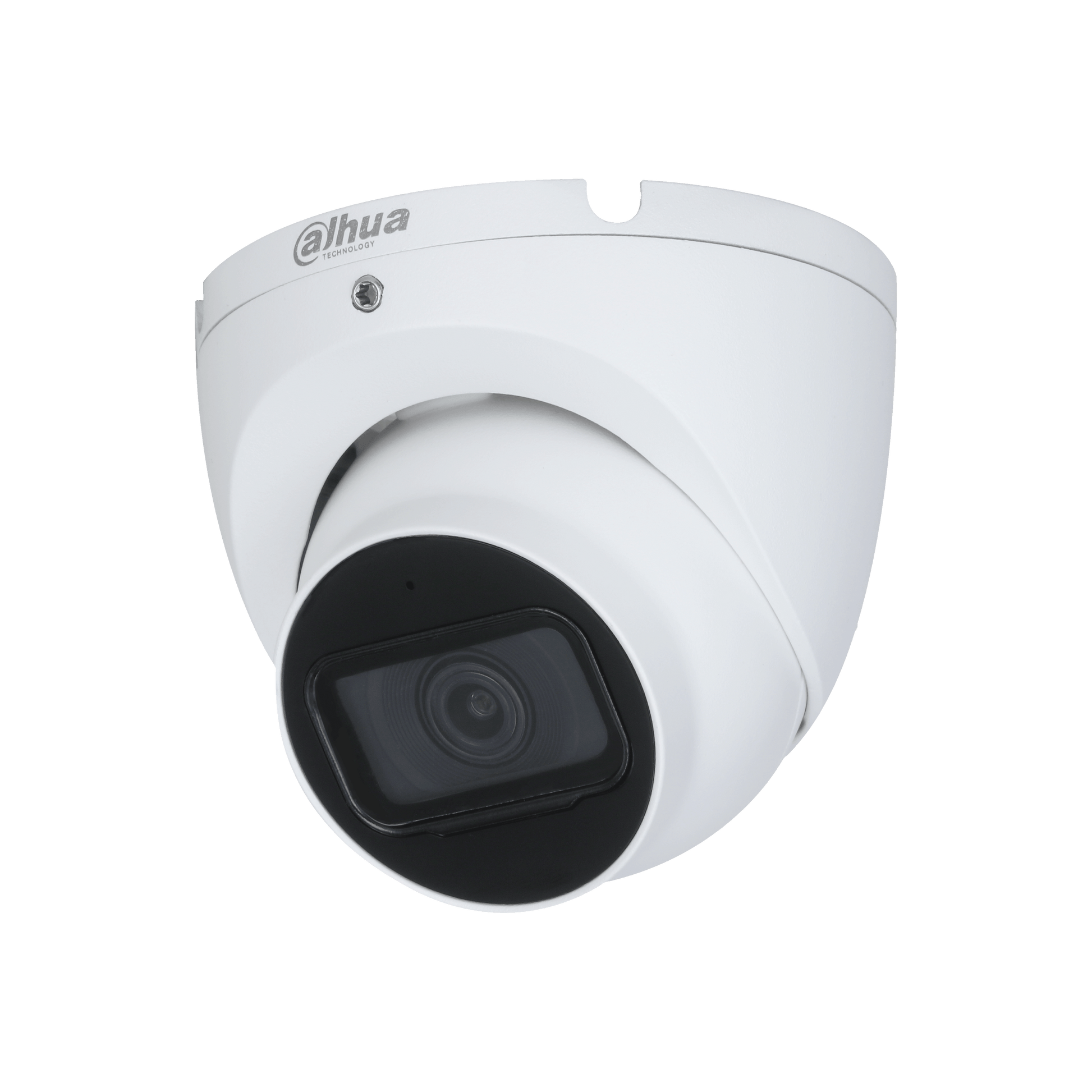

DAHUA HAC-HDW1500TLM-A-POC 5MP Starlight HDCVI POC IR Eyeball Camera

In stock
SKU: HAC-HDW1500TLM-A-POC
Regular price $1,000,000.00

Estimated delivery date: 2024-04-02

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
  • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



HAC-HDW1500TLM-A-POC

5MP Starlight HDCVI POC IR Eyeball Camera

> * The parameters and datasheets below can only be applied to1500-S2 series.

> * In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.

> Max 25 fps@5MP (16:9 video output)

> CVI/CVBS/AHD/TVI switchable
> 3.6 mm fixed lens (2.8 mm optional)
> Built-in mic
> Max. IR length 30 m, Smart IR
> IP67, POC (only CVI)/12V±30% DC



Product Data

Camera

Image Sensor

5MP CMOS

Max. Resolution

2880 (H) × 1620 (V)

Pixel

5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

S/N Ratio

>65 dB

Min. Illumination

0.005 Lux/F1.6, 30IRE, 0 Lux IR on

Illumination Distance

30 m (98.4 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

1 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed lens

Mount Type

M12

Focal Length

2.8mm;3.6mm;

Max. Aperture

F1.6

Field of View

2.8mm:H:111° V:58° D:132°
3.6mm: H:92° V:48°  D:109°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 0.9 m (3.0 ft)
3.6 mm: 1.6 m (5.2 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

63.6 m (208.7 ft)

25.4 m (83.3 ft)

12.7 m (41.7 ft)

6.4 m

(21.0 ft)

3.6 mm

80.0 m (262.5 ft)

32.0 m

(105.0 ft)

16.0 m

(52.5 ft)

8.0 m

(26.2 ft)

Video

Frame Rate

CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps;
NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

5M (2880 × 1620);
4M (2560 × 1440);
1080P (1920 ×1080);
960 H (960 × 576/960 × 480)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/DWDR

WDR

DWDR

White Balance

Auto; Area WB

Gain Control

Auto/Manual

Noise Reduction

2D NR

Smart IR

Yes

Mirror

Off/On

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4, EN62368-1)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

POC (only CVI)/12V±30% DC

Power Consumption

Max 3.2W (12V DC, IR on); PoC (AF)

Environment

Operating Temperature

–40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

Storage Temperature

–40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Metal throughout the whole casing

Camera Dimensions

φ94.0 mm × 85.7 mm (φ3.70" × 3.37")

Net Weight

0.33 kg (0.73 lb)

Gross Weight

0.47 kg (1.04 lb)
