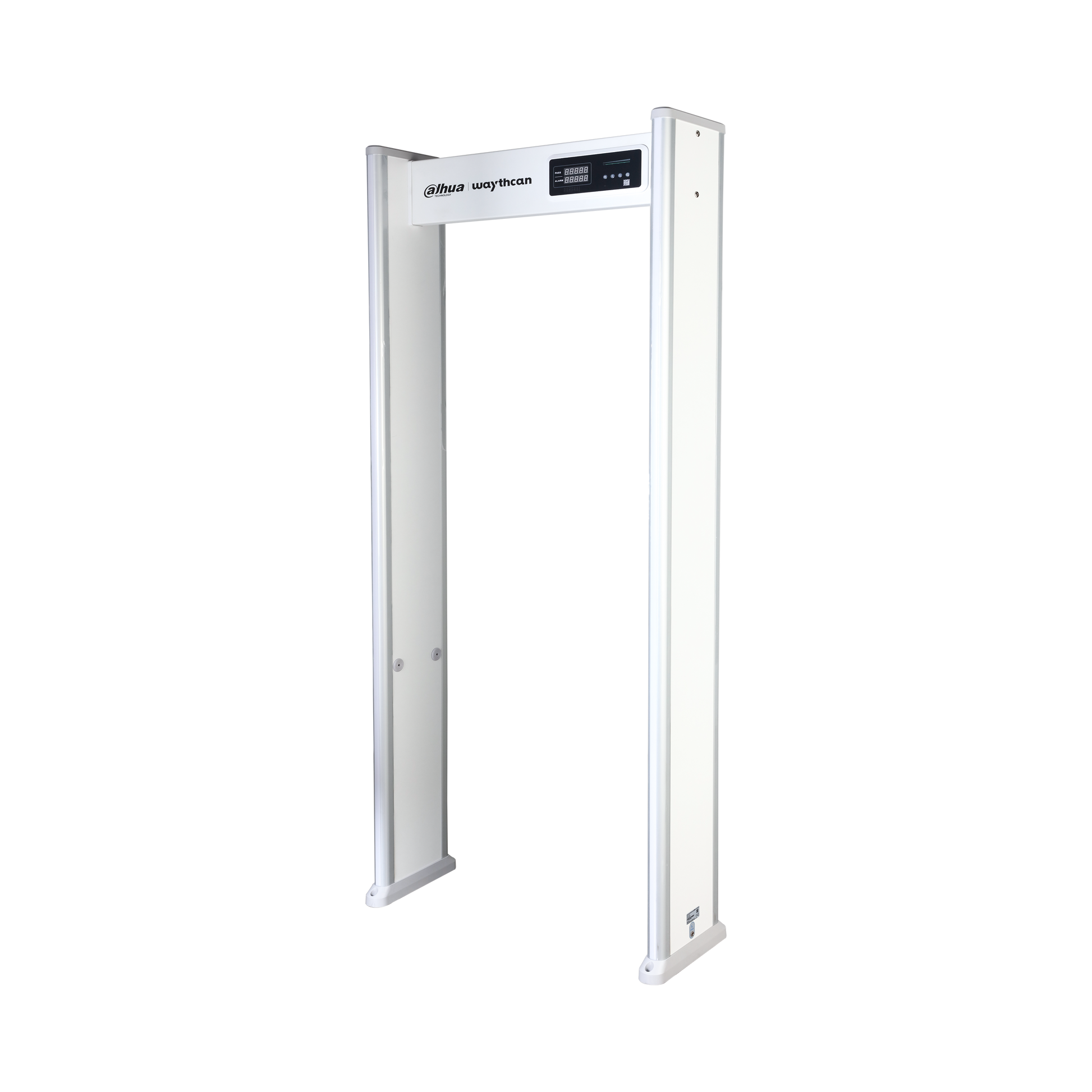

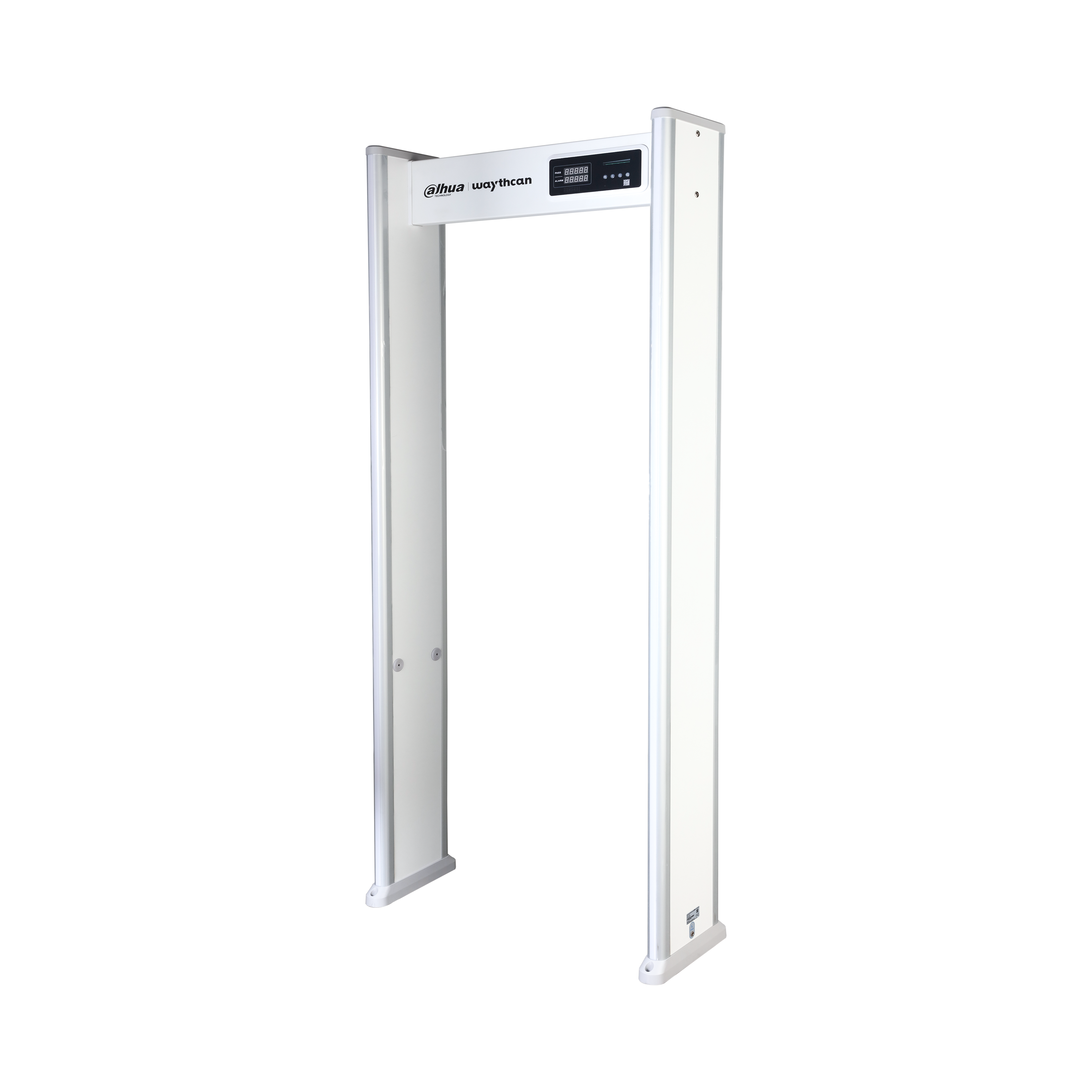

DAHUA ISC-D109L Walk-through Metal Detector

In stock
Regular price $1,000,000.00
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
  • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



Walk-through Metal Detector

> 9 detection zones with corresponding indicator lights.
> 2 sets of 5-digit high-brightness red LED display.
> Super bright dual-row area indicator lights and independent interactive 9-zone function with 6 detectors.
> Counts pass number and alarm times respectively.
> Mult-zone simultaneous detection and alarm.
> Supports 99 programs, suit for different scenes.
> Global sensitivity adjustable from 0 to 399.
> Every zone sensitivity adjustable from 0 to 399.
> Automatically searches operating frequency (20 levels available).
> 99 Alarm tones selectable.
> Alarm volume adjustable (10 levels). mute mode available.
> 10 levels alarm sound duration selectable.
> Multiple start-stop modes for IR.
> Supports 5-digit password protection. not support super password.
> Supports device auto diagnosis.
> Supports network firmware upgrade.

Product Data

Precise Positioning

9 overlapping mesh-like detection zones, bilateral transmission and receipt of detection signals; 2-panel indicator lights

Zone Indication

9 independent zones selectable, and multiple metal items can be located simultaneously.

IR Sensor

Infrared sensor with fewer false or missed alarms; automatic alarm statistics and pass/return statistics.

Adjustable Sensitivity

400 adjustable sensitivity levels in each detection zone (sensitivity increases by levels).

Environmental Noise

Monitors and displays real-time signal strength of environmental interferences.

12 VDC, power adapter (included): 100 V–240 VAC, 50/60 Hz

7.2 W

5.76 W

28.5 kg (62.83 lb)

23 kg (50.71 lb)

2000 mm × 720 mm × 340 mm (78.74" × 28.35" × 13.39")

Bare: 2208 mm × 824 mm × 340 mm (86.93" × 32.44" × 13.39")

2265 mm × 425 mm × 220 mm (89.17" × 16.73" × 8.66")

–20 °C to 65 °C (–4 °F to 149 °F)

<95% (RH), non-condensing

–20 °C to +70 °C (–4 °F to 158 °F)

<95% (RH), non-condensing

On the front panel

One green indicator

Ground mount


1-channel output

1 RJ-45, 100 Mbps

12 VDC
