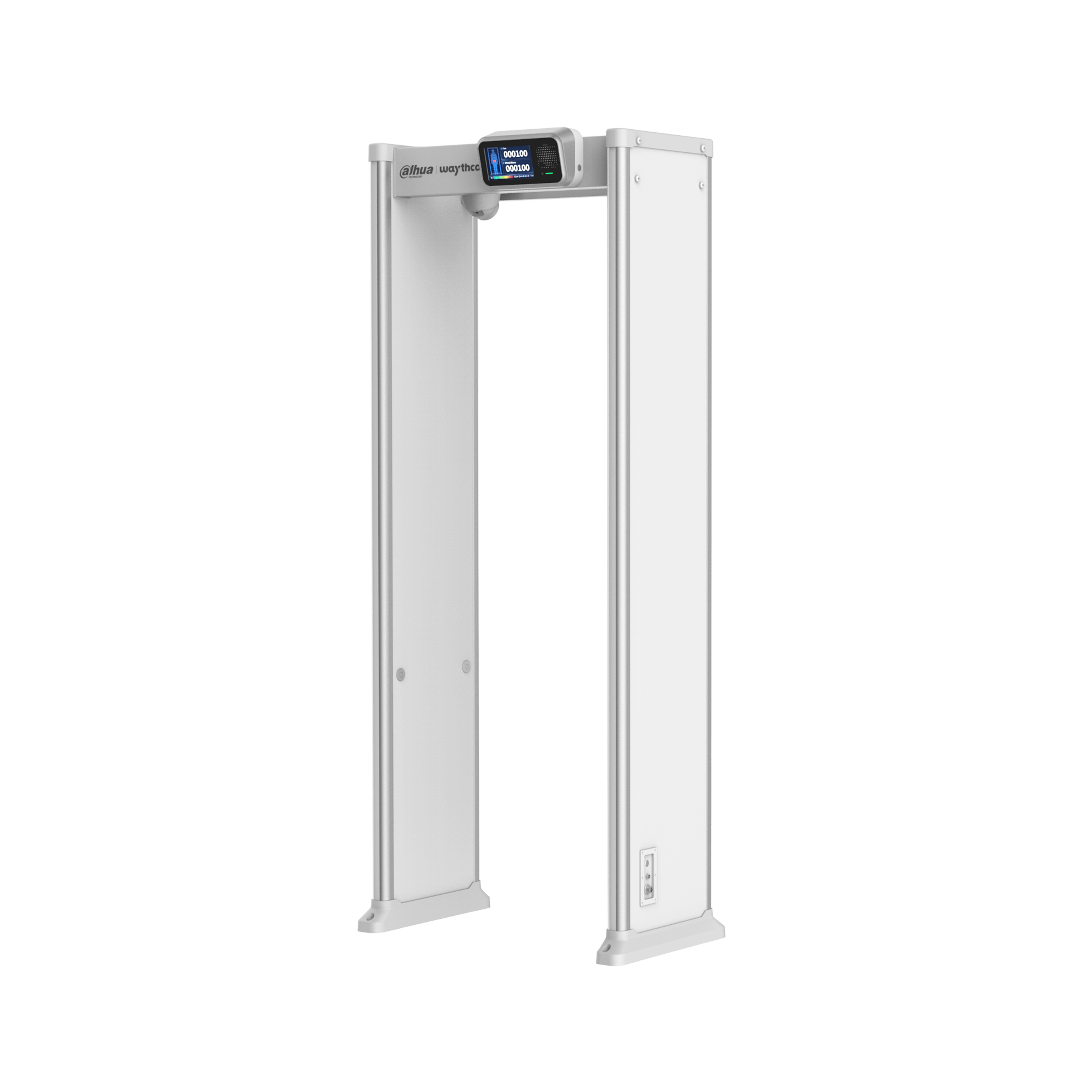

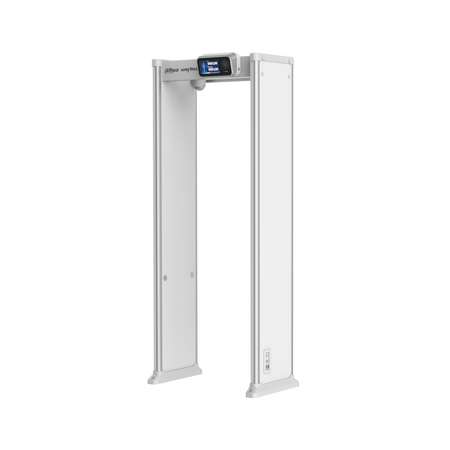

DAHUA ISC-D718-TS2 Walk-through Metal Detector

In stock
SKU: ISC-D718-TS2
Regular price $1,000,000.00
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
  • Minimum Order Amount Statement:For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
  • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



ISC-D718-TS2

Walk-through Metal Detector

> 6, 12, 18 detection zones with corresponding indicators

> Built-in traffic lights
> 7-inch full color touch screen LCD display
> Easy-to-install modular design
> Monitor and display the real-time signal strength of environmental interference
> Counts passing number, pass/return numbers, and alarm number
> Pass/Return statistics, alarm statistics, and searching by hour/day
> Displays the alarm position via human shape display
> Ultra-high sensitivity, minimum detect target: *CNY ten-cent coin
> Independent detection of ferromagnetic and non-ferromagnetic metals
> Innocuous metal object filtering
> 90 applications selectable
> Automatically searches operating frequency (100 levels available)
> Random alarm
> 2-level user management of Operator & administrator management
> Supports multi-language, real-time switching
> 2-channel alarm output
> Monitoring and configuration through the network, and managed by platform
> IR remote controller
> Supports SLA back-up battery
> 2-channel alarm output

> Temperature monitoring display, support visible and audible alarm for abnormal temperature

Camera

> Uncooled VOx thermal sensor technology
> Athermalized lens (thermal camera), focus-free
> 4-MP 1/2.7'' progressive scan CMOS
> ROI, motion detection, color palettes
> Smoking and call behaviour detection
> Fire detection & alarm
> Built-in 1/1 alarm in/out
> Micro SD memory, IP67, PoE
> Smart linkage with strobe light & audio
> Dual image fusion (visible and thermal images)



Product Data

Device

Precise Positioning

6, 12, 18 overlapping detection zones, bilateral transmission and receipt of detection signals; 2-panel indicator lights

Zone Indication

6, 12, 18 independent zones selectable, and multiple metal items can be located simultaneously

IR Sensor

Supports the switching of multiple start-stop modes for two-pair of IR sensor.
Infrared sensor can reduce false alarms; automatic alarm statistics and pass/return statistics

Adjustable Sensitivity

255 adjustable sensitivity levels in each detection zone (sensitivity increases by levels)

Security level

Supports 1-100 selectable security level.

POST (Power On Self Test)

Power on self test.

Operating Frequency

Supports 1-100 selectable operating frequency ranges, and supports automatic frequency search.

Alarm Volume

Support 0-10 adjustable alarm volume, mute mode can be set.

Alarm Tone

Supports 9 kinds of selectable alarm tones, and independent tone for temperature alarm.

Remote Control

An IR remote controller with maximum remote control range of 2 m (6.56 ft)

Leakage Current

<0.5 mA, complying with safety requirements for electronic devices

Certifications

Certifications

GB 15210-2018
IEC 60068-2-1
IEC 60068-2-2
CE-LVD: Low Voltage Directive 2014/35/EU
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
CE-RED: Radio Equipment Directive 2014/53/EU
FCC: 47 CFR FCC Part 18, Subpart B

Safety

ICNIRP 2010 Guidelines
ICNIRP 1998 Guidelines
EC directive 2013/35/EU
EC recommendation 1999/519/EC
IEEE C95.1:2005

Ports

Power Button

Power switch on both door panels, and metal detection power switch on the front panel

Indicator

One green indicator

Environmental Noise

Monitors and displays real-time signal strength of environmental interferences

RS-485

1

Alarm In/Out

2-channel input, and 2-channel output

Power Output

12 VDC

Detector Underside Power Port

Aviation power port, 1 for each side.

Detector Underside Network Port

Waterproof RJ45 port, 1 for each side.

Regular Parameters

Tunnel Dimensions

2000 mm × 760 mm × 500 mm

Product Dimensions

2221 mm × 916 mm × 537 mm

Packaging Dimensions

2275 mm × 775 mm × 235 mm

Net Weight

42 kg (92.59 lb)

Gross Weight

52 kg (114.64 lb)

Operating Voltage

12 VDC, power adapter (included): 100–240 VAC,
50/60 Hz

Max. Power Consumption

26 W

Standby Power

15.5 W

Operating Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

0%–95%

Storage Temperature

–20 °C to +65 °C (-4 °F to +149 °F)

Storage Humidity

0–95% RH

Installation

Floor mounted

Camera Technical Specification

Thermal

Detector Type

Vanadium Oxide Uncooled FPA

Max. Resolution

256 × 192

Pixel Pitch

12 μm

Spectral Range

8 μm–14 μm

Thermal Sensitivity (NETD)

<50 mK (@f/1.0, 25 Hz, 300K)

Focal Length

3.5 mm

Field of View

H: 50.6°, V: 37.8°

Close Focus Distance

0.5 m (1.64 ft)

Effective Distance
Human (1.8 m × 0.5 m)

D: 146 m (479 ft)
R: 38 m (125 ft)
I: 19 m (622 ft)

Effective Distance
Vehicle (4.0 m × 1.4 m)

D: 389 m (1276 ft)
R: 97 m (318 ft)
I: 49 m (161 ft)

Aperture

F1.0

Digital Detail
Enhancement (DDE)

Yes

Digital Zoom

16 ×

AGC

Auto; manual

Noise Reduction

2D NR; 3D NR

Image Flip

90°; 180°; 270°

Color Palettes

18 (Whitehot/Blackhot/Ironrow/Icefire/Fusion/Rainbow/Globow/Iconbow1/Iconbow2, etc.)

Visible

Image Sensor

1/2.7'' CMOS

Max. Resolution

2336 × 1752

Pixel

4 MP

Electronic Shutter Speed

1/30,000 s–1 s

Min. Illumination

Color: 0.05 lux
Black & white: 0.005 lux
0 lux (IR on)

IR Illumination Distance

≥ 30 m (98.43 ft)

IR Illuminator On/Off
Control

Auto; manual

Focal Length

4 mm

Aperture

F1.6

Field of View

H: 71.2°
V: 52°
D: 92.6°

Focus Control

Fixed

Close Focus Distance

1.0 m (3.28 ft)

Day/Night

Auto (ICR); Color and B/W

BLC

Yes

WDR

DWDR

HLC

Yes

White Balance

Auto/Manual/Indoor/Outdoor/Tracking/Street lamp/Natural

AGC

Auto; manual

Noise Reduction

2D NR; 3D NR

S/N Ratio

≥55 dB

Region of Interest (RoI)

Yes

Image Flip

90°; 180°; 270°

Exposure Compensation

Yes

Intelligence

General Intelligence

Tripwire; intrusion

Advanced Intelligence

Fire detection & alarm
Cold & hot spot trace
Human & vehicle classification
Smoking detection
Call detection

Video and Audio

Video Compression

H.265/H.264M/H.264H/H.264B/MJEPG

Resolution

Thermal:
Main Stream: 1280 × 960 (1.3M)/XVGA (1024 × 768)/
VGA (640 × 480)/256 × 192, 1280 × 960 by default
Sub Stream: VGA (640 × 480)/256 × 192, 256 × 192 by
default
Visual:
Main Stream: 2336 × 1752/1080p (1920 × 1080)/720p
(1280 × 720)/D1 (704 × 576), 2336 × 1752 by default
Sub Stream: 720p (1280 × 720)/D1 (704 × 576)/CIF (352
× 288), 352 × 288 by default

Frame Rate

Thermal
50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by
default; (sub stream) 1 fps–25 fps adjustable, 15 fps by
default
60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by
default; (sub stream) 1fps–30 fps adjustable, 15 fps by
default
Visual
50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by
default; (sub stream) 1 fps–25 fps adjustable, 15 fps by
default
60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by
default; (sub stream) 1 fps–30 fps adjustable, 15 fps by
default

Audio Compression

G.711a; G.711mu; PCM

Network

Protocol

HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS;
UPnP; NTP

Edge Storage

Micro SD card (256 G)

Interoperability

ONVIF; CGI

Browser

IE: IE8 and the later, and explorer with IE core
Google: 42 and the earlier
Firefox: 42 and the earlier

User/Host

10

Security

Authorized username and password; attached MAC
address; encrypted HTTPS; IEEE 802.1x; controlled
network access

Certification

Certifications

CE: EN55032:2015; EN61000-3-2: 2014
FCC: CFR 47 FCC Part15 subpart B; ANSI C63.4-2014

Port

Network

1 10M/100M Ethernet port (RJ-45)

RS-485

1 pair

Power

Power Supply

12 VDC±20%/PoE

Power Consumption

Basic: <6.5 W (LED off)
Max: <13 W (LED on, heater on)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Storage Temperature

–30 °C to +70 °C (–22 °F to +158 °F)

Operating Humidity

≤95%

Protection

IP67, anti-surge 6kV, anti-elctrostatic 6kV (touched by
objects), anti-elctrostatic 8KV (air)

Structure

Product Dimensions

122 mm × 122 mm × 112 mm (4.8" × 4.8" × 4.41")

Packaging Dimensions

155 mm × 155 mm × 135 mm (6.10" × 6.10" × 5.31")

Net Weight

≤0.85 kg (1.87 lb)

Gross Weight

≤1 kg (2.20 lb)
