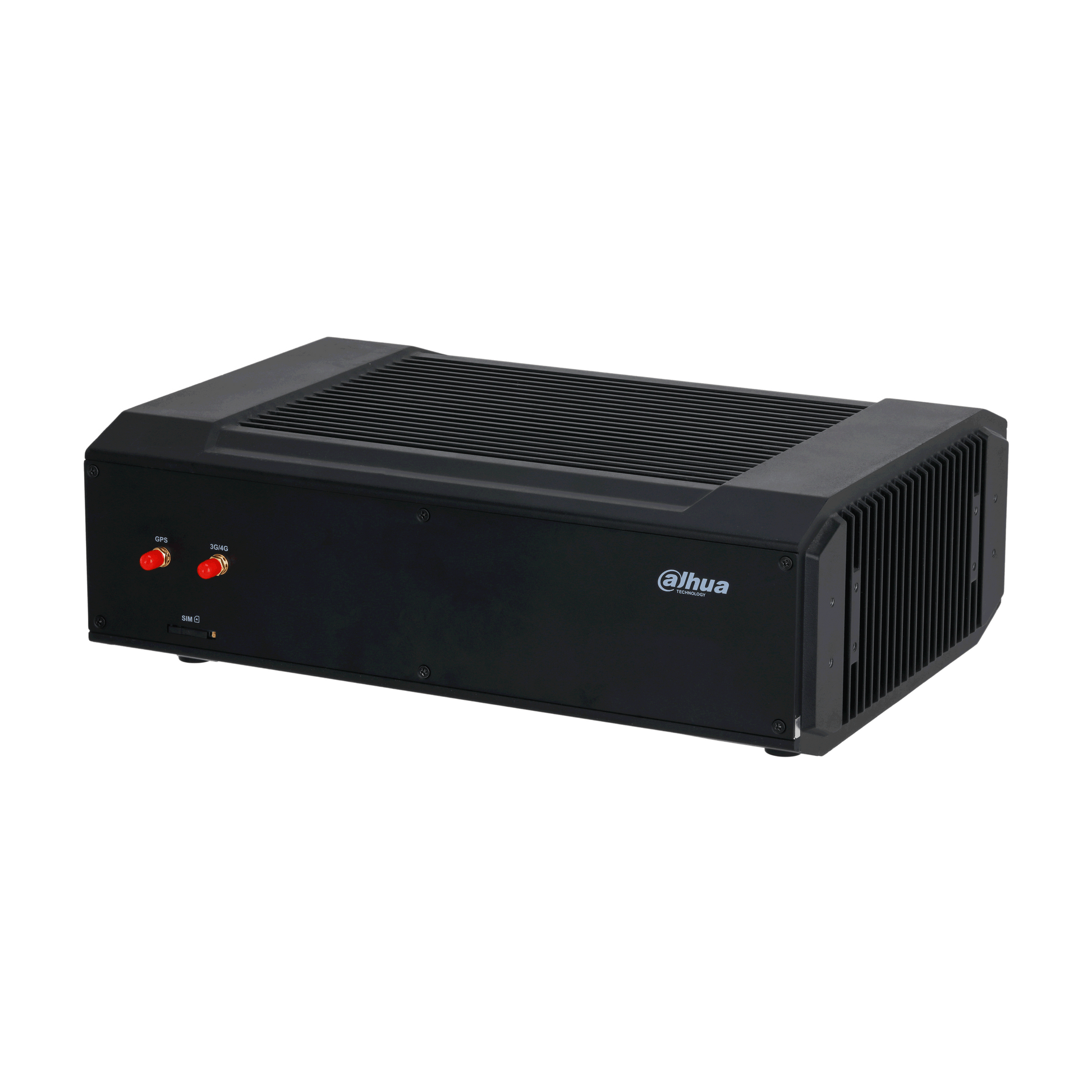

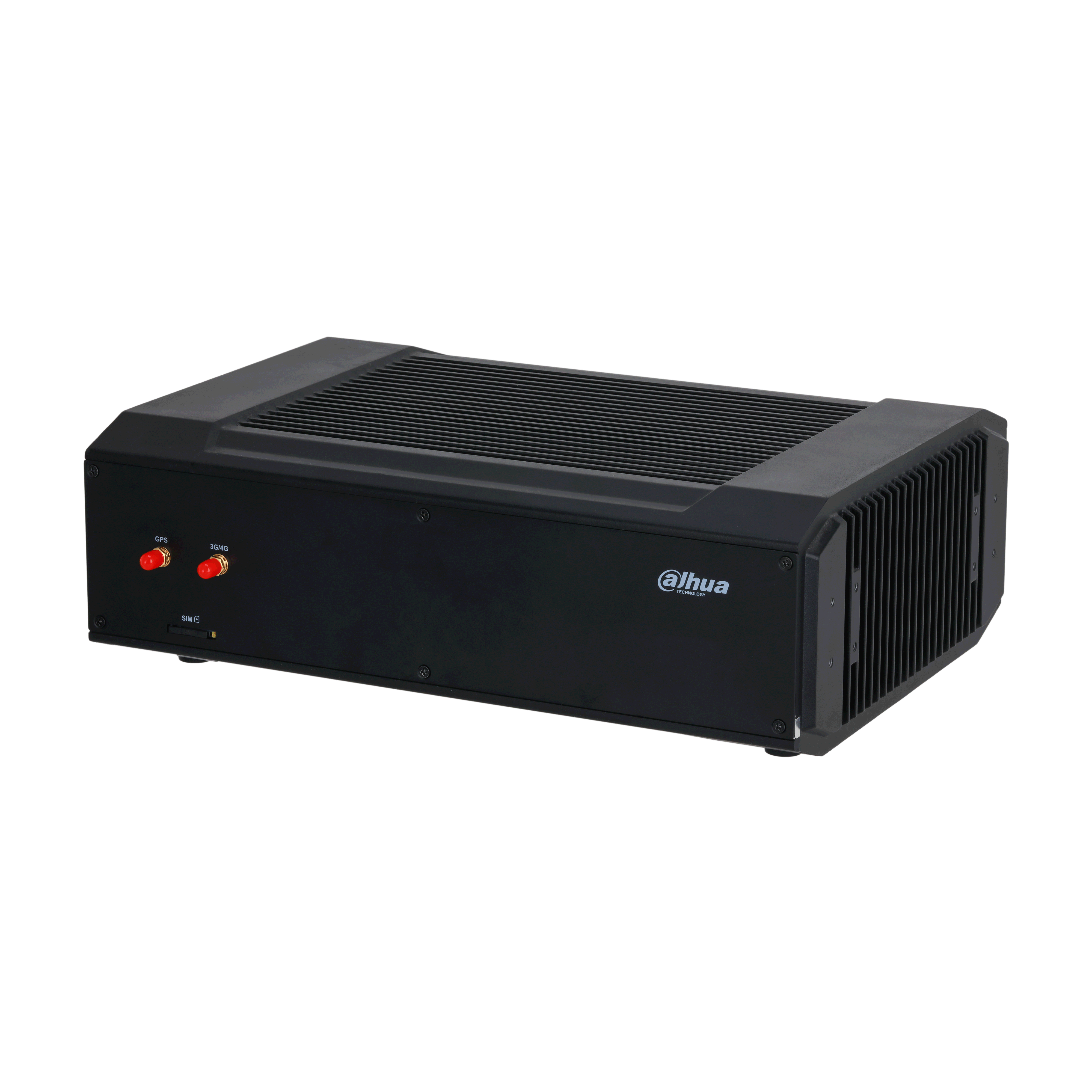

DAHUA ITSE1200-TA-N02 Dahua Edge Storage Terminal

DAHUA

DAHUA ITSE1200-TA-N02 Dahua Edge Storage Terminal

In stock

SKU: ITSE1200-TA-N02

$1,000,000.00

Product variants

Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.

Ask Our Experts

Text Chat | Email |04407548784511

Order and Pricing Information for Surveillance Products

Minimum order amount: Orders must exceed $1000 or equivalent.
The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
Shipping costs: Shipping costs will be calculated separately and added to the total order value.
Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
Technical support: As authorized distributors, we provide official technical support.
Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.

Quality Certifications:

ITSE1200-TA-N02

> Supports 12-channel HD video and image input, and building composite images in ANPR composite mode.

> Performs section speed measurement for multiple sections and channels.

> Settings can be customized for the different sections.

> The speed limit can be set for small and large vehicles.

> Speeds that exceed or fall below set limits can be filtered out to reduce false alarms.

> The violation name and code can be set based on the ratios of the speed vehicles travel at.

> Images can be searched for by event and status.

> Offers GPS and Beidou positioning.

> Matching schemes can be set when developing images.

> Storage can be allocated for images and videos, and the system can be configured to overwrite data when storage is full.

Product Data

Basic

Operating System

Linux

Operating Interface

Web client

Network Protocol

TCP/IP; HTTP; HTTPS; SFTP; FTP; DNS; RTP; RTSP; RTC; NTP; DHCP; IEEE 802.1X

Image Encoding Format

JPEG

Main Processor

High-performance embedded processor

Memory

2 GB

Power Switch

1 power switch

Indicator Light

1 × on/off status; 1 × operation status; 1 × alarm indicator; 1 × disk read/write indicator

Function

Storage

Disk; FTP; SFTP

OSD Overlay

Time, address, lane name, driving direction, violation code, violation name, vehicle speed, speeding ratio, plate, plate color and type, vehicle color and size, vehicle type, seatbelt status, call, GPS information, remote device GPS, section information and code, section distance and speed limit, entry and exit time, entry and exit lane, and more.

Positioning

GPS; BDS

Composite Image

Supports combining 1 to 6 source images into a composite image by using normal and related composition functions.
Related channels can be set to match target images across channels, so that a composite image can be developed providing an overall impression of the target. Supports 3 strategies for matching: ID matching, plate matching, and a combination of matching the ID first, and then the plate. Supports fuzzy match by vehicle type, vehicle lane, plate color, and vehicle color. Customize the order that images are merged in and the close-up image number.

Automatic Network Replenishment (ANR)

Platform and FTP; manual upload

Auto Registration

Yes

Restricted List/Trusted List

Yes. Import and export allowlist and blocklist files and perform fuzzy search of vehicles on the list by plate number.

Anti-deletion

Yes. Videos and images cannot be directly deleted.

Vehicle Search

Search by time, channel, plate, speed, lane, target type, plate color, vehicle color, and violation type such as not wearing seatbelt and calling while driving. Fuzzy search is supported. Export results in CSV and EXCEL format.

Alarm Event

Storage full, external alarm, license plate blocklist, illegal access, and security fault alarm.

Built-in Software

Edge Storage Device Software

Port

HDD Interface

1 × 2 TB disk (included); supports max. 4 SATA 3.5" disks.

RS-232

2, one of them is for debugging data from the serial port.

RS-485

4

USB
