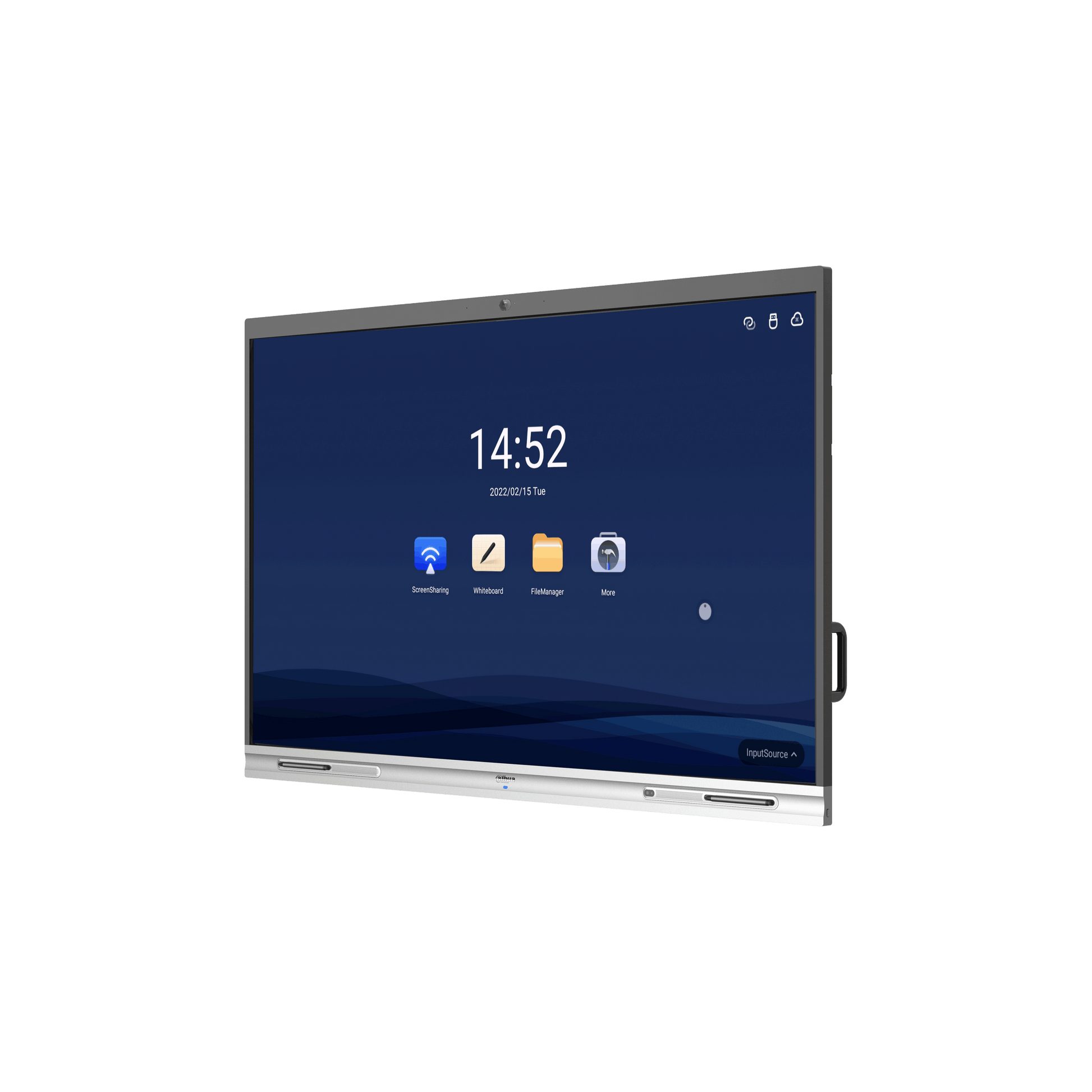

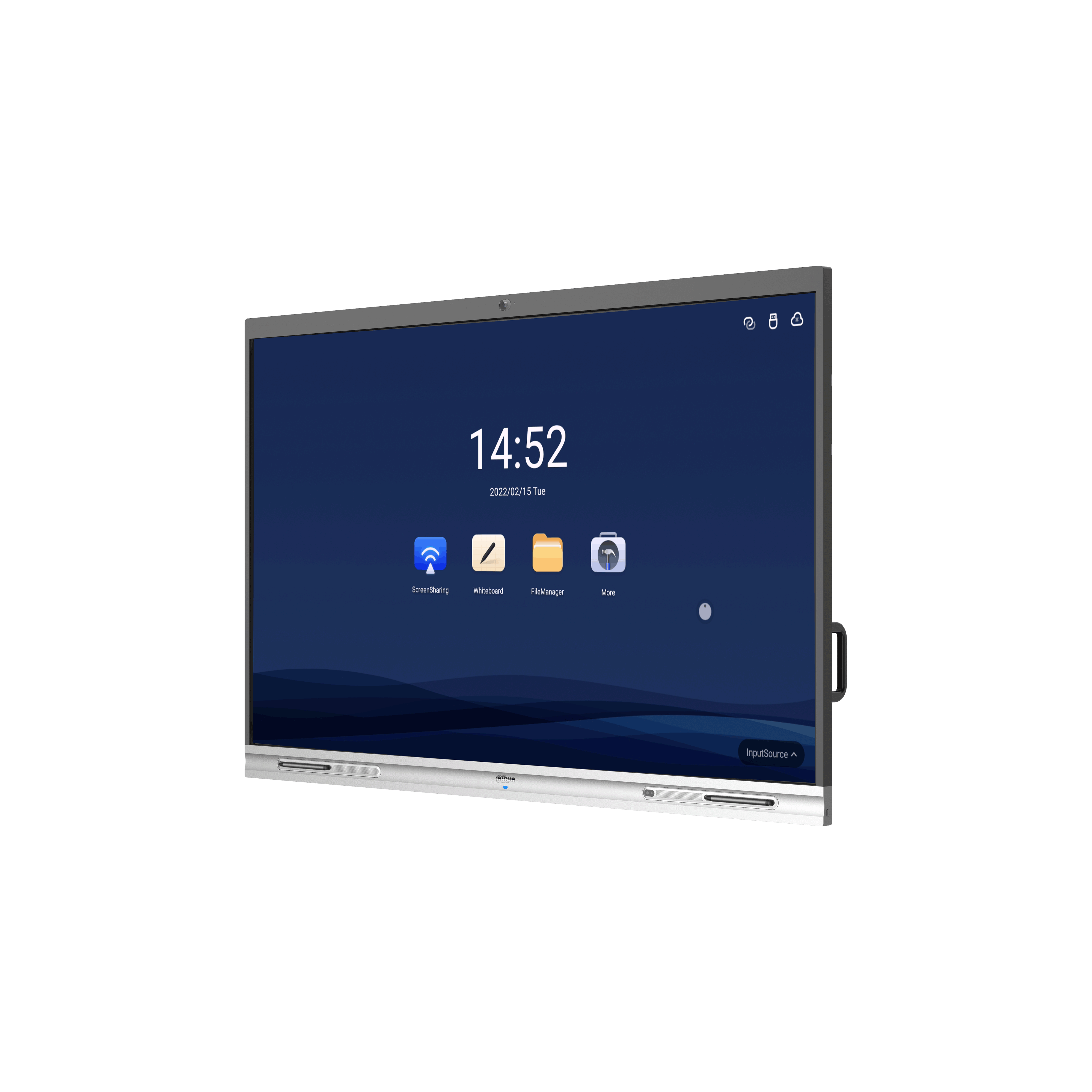

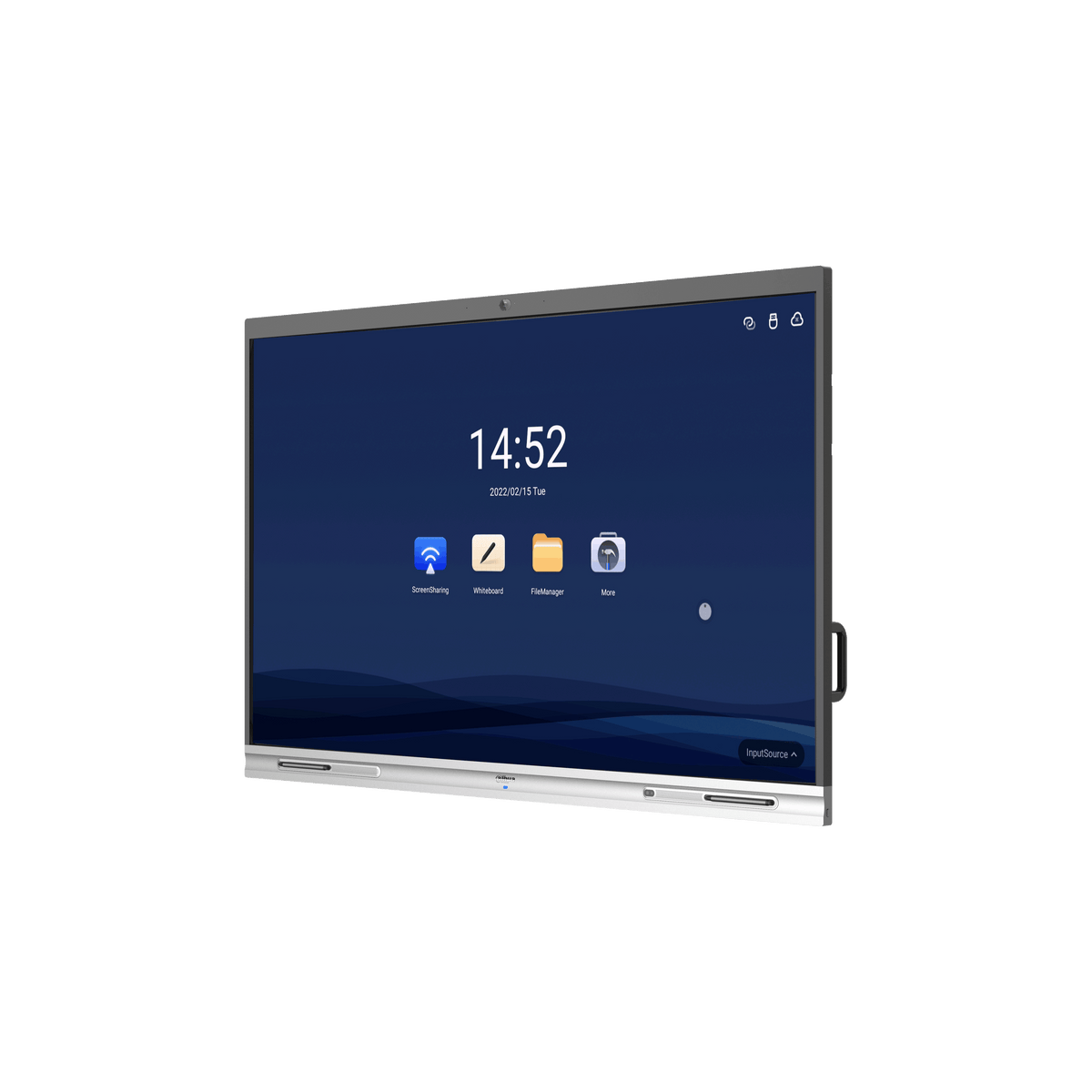

DAHUA LCH86-MC410-B 55/65/75/86 inch Smart Interactive Whiteboard

In stock
SKU: LCH86-MC410-B
Regular price $1,000,000.00

Estimated delivery date: 2024-06-16

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
  • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



LCH86-MC410-B

> 4K HD display.

> Supports using both Android and Windows (PC module must be installed).

> Wireless screen sharing from multiple devices, such as phones, computers, and tablets.

> Supports being written on with a stylus.

> Supports Office software, and playing videos and audio files.

> The startup channels are all customizable.

> Wired and wireless network support.

> Built-in 5-MP camera.


Product Data

Built-in System

Operating System of External Module

Android 9.0

CPU

Quad-core A55

RAM

4 GB

ROM

32 GB

Function

Applicable Operating Systems

Windows 7/8/10; Android

WiFi

Dual-band 2.4 Ghz/5 Ghz

Wi-Fi Hotspot

Dual-band 2.4 Ghz/5 Ghz; supports enabling hotspot and Wi-Fi at the same time

LCD Panel

Panel Dimensions

55-inch; 65-inch; 75-inch; 86-inch

Backlight

DLED

Aspect Ratio

16:9

Brightness

55-inch: 300 cd/m²; 65-inch: 350 cd/m²; 75-inch: 350 cd/m²; 86-inch: 400 cd/m²

Resolution

3840 (H) × 2160 (V)
UI: 1920 (H) × 1080 (V)

Viewing Angle

H: 178°; V: 178°

Lifespan

50,000 hours

Refresh Rate

60 Hz

Static Contrast

1200:1

Camera

Pixel

5 MP

Auto Control

Auto white balance

Distortion

≤ 5%

Max. Resolution

Android: 1080p@30fps; OPS: 2560 × 1440@30fps

Field of View

H:84.5°; V: 54.0°; D: 93.1°

Device Ports

Light Sensor

1

Front Button

1 × Power button (right side)

Front Ports

1 × USB 3.0 (left side)

Network Port

1 × RJ-45

Wi-Fi

1 × Wi-Fi; 1 × hotspot

USB

3 × USB 3.0; 1 × Micro USB

RS-232

1 × RS-232

Video Input

1 × HDMI IN

Audio Output

1 × 3.5 mm (Line out)

Others

1 × Touch

IrDA

1

Microphone

2

Touchscreen

Touch Technology Type

IR touch technology

Response Time

< 10 ms

Touch Points

20

Valid Touch

2 mm

Writing Mode

Finger + Stylus pen

Touch Resolution

32767 × 32767

Number of Multi-user Writing Points

2

Speaker

Power

Full frequency: 2 × 15 W

Built-in Speaker

2

Microphone

Pick-up Distance

Far-field sound pickup: 6 m–8 m (19.69 ft–26.25 ft)

Number of Microphones

2

AGC

Yes

Echo Cancellation

Yes

Polar Pattern

Omnidirectional

Intelligent Noise Filtering

YES

General

Power Supply

100–240 VAC, 50 Hz/60 Hz

Power Consumption

55-inch: 200 W; 65-inch: 250 W; 75-inch: 300 W; 86-inch: 400 W

Operating Temperature

0 °C to +40 °C (32 °F to +104 °F)

Storage Temperature

–10 °C to +50 °C (–14 °F to +122 °F)

Operating Humidity

10%–90% (RH)

Storage Humidity

10%–90% (RH)

Product Material

Metal casing

Protective Glass

Anti-dazzle tempered glass with a hardness of 7 on the Mohs scale

Casing Color (Frame/Rear)

Bottom: Silver; top/left/right: black

Product Dimensions

65-inch: 1,485.0 mm × 86.9 mm × 924.7 mm (58.46" × 3.42" × 36.41")(L × W × H)

75-inch: 1,707.2 mm × 87.1 mm × 1,050.1 mm (67.21" × 3.43" × 41.34")

86-inch: 1,953.0 mm × 87.1 mm × 1,188.6 mm (76.90" × 3.43" × 46.80")

55-inch: (with camera): 1,261.4 mm × 80.9 mm × 816.6 mm (49.66" × 3.19" × 32.15") (L × W × H)

65-inch: (with camera): 1,485.0 mm × 86.9 mm × 941.2 mm (58.46" × 3.42" × 37.06")

75-inch: (with camera): 1,707.2 mm × 87.1 mm × 1,066.4 mm (67.21" × 3.43" × 41.98")

86-inch: (with camera): 1,953.4 mm × 87.1 mm × 1,205.1 mm (76.91" × 3.43" × 47.45")

Frame Size

Top: 43.1 mm (1.70"); left/right: 16.1 mm (0.63"); bottom: 67.8 mm (2.67")

Packaging Dimensions

55-inch: 1,366 mm ×180 mm × 935 mm (53.78" × 7.09" × 36.79") (L × W × H)

65-inch: 1587 mm × 235 mm × 1070 mm (62.48" × 9.25" × 42.13")

75-inch: 1810 mm × 235 mm × 1157 mm (71.26" × 9.25" × 45.55")

86-inch: 2056 mm × 235 mm × 1334 mm (80.94" × 9.25" × 52.52")

Net Weight

55-inch: 27.5 kg (60.63 lb)
65-inch: 38 kg (83.80 lb)
75-inch: 54 kg (119.10 lb)
86-inch: 64 kg (141.10 lb)

Gross Weight

55-inch version: 32.5 kg (71.65 lb)
65-inch version: 46 kg (101.41 lb)
75-inch version: 65 kg (143.30 lb)
86-inch version: 77 kg (169.76 lb)

Holes Distance

55-inch version: 400 mm × 400 mm (15.75" × 15.75")
65-inch version: 400 mm × 500 mm (15.75" × 19.69")
75-inch version: 400 mm × 600 mm (15.75" × 23.62")
86-inch version: 400 mm × 750 mm (15.75" × 29.53")

Installation

Wall mount, mobile bracket

Standby Power Consumption

0.5 W

Packing List

Smart interactive whiteboard 1; Power cord 3; Stylus pen 2 ; Quick start guide 1; Wall mount bracket (already installed on the whiteboard) 1; Accessory package 1
