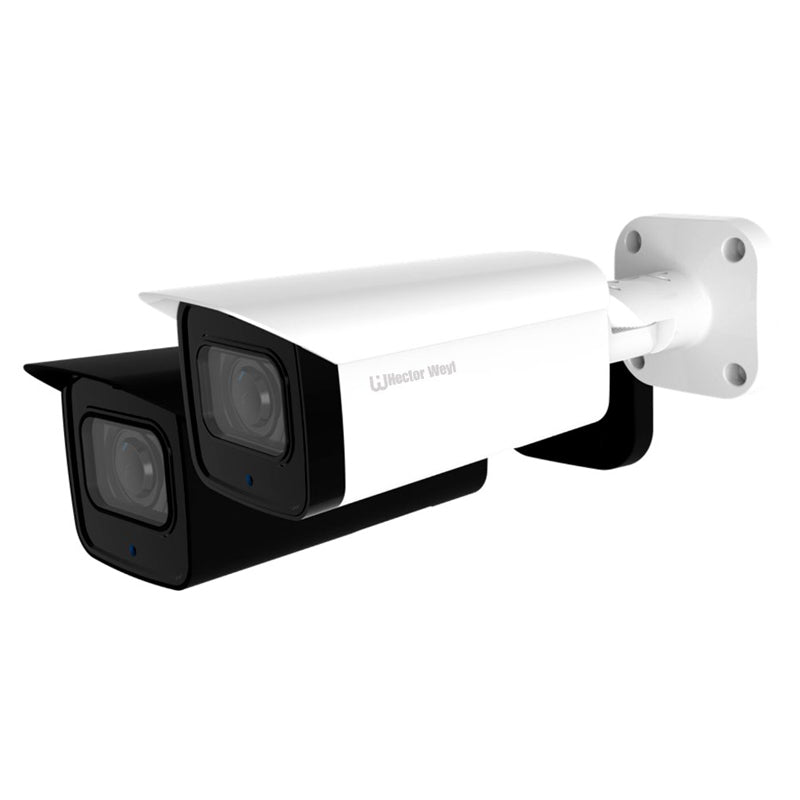

HW-IPC-F3821T-AS 8MP IR Fixed-Focal Bullet IntelliSight AI Network Camera
Couldn't load pickup availability
HW-IPC-F3821T-AS 8MP IR Fixed-Focal Bullet IntelliSight AI Network Camera
Unveiled by Hector Weyl, IntelliSight comprises an array of artificial intelligence products and solutions. These are underpinned by dedicated AI chips and cutting-edge deep learning algorithms, ensuring precise identification of humans and vehicles. This precision empowers users to swiftly respond to specific targets. Leveraging the innovative technologies of Hector Weyl, IntelliSight offers a suite of smart, user-friendly, and comprehensive offerings designed to meet a wide range of needs.
With advanced deep learning algorithm, Hector Weyl IntelliSight Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.
• 8 MP 1/2.7" CMOS Sensor
• Support H.264+, H.265+
• The Max. IR LED distance is 50 m
• Support Perimeter Protection, Face Detection, AMD
• Support Built-in Mic & Speaker
• Supports max. 256 G Micro SD card
• 2.8mm fixed lens (3.6mm/6mm optional)
• 12 VDC/PoE power supply
• IP67 protection
• Rating Surge Voltage: 6KV(10/700μs), Metal
|
Camera |
|
|
Image Sensor |
1/2.8” CMOS |
|
Max. Resolution |
8MP,3840 (H) × 2160 (V) |
|
ROM |
128 MB |
|
RAM |
256 MB |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
|
Min. Illumination |
0.007Lux(Color); 0.0007Lux (B/W); 0Lux (Illuminator on) |
|
S/N Ratio |
> 56 dB |
|
Illumination Distance |
IR Distance 50 m |
|
Illuminator Control |
Auto; Manual |
|
Lens |
|
|
Lens Type |
Fixed-Focal |
|
Focal Length |
2.8mm/3.6mm/6.0mm |
|
Max. Aperture |
F1.6 |
|
Field of View |
2.8 mm: Horizontal:107°; vertical: 56°; diagonal: 127° 3.6 mm: Horizontal:84°; vertical: 47°; diagonal: 97° 6 mm: Horizontal: 55°; Vertical: 29°; Diagonal: 63° |
|
Iris Type |
Auto |
|
Intelligence |
|
|
Smart Motion Detection |
Yes |
|
Perimeter Protection |
Intrusion,Tripwire(Support the classification of Vehicle, Human and Non-Motor) |
|
Face Detection |
Yes |
|
Object Detection |
NA |
|
People Counting |
NA |
|
Heat Map |
NA |
|
AI Search |
Work together with NVR |
|
Video |
|
|
Compression |
H.264H; H.264M; H.264B; H.265 |
|
Smart Compression |
H.264H+; H.264M+; H.264B+; H.265+ |
|
Video Frame Rate
Stream Capability Bit Rate Control |
Main Stream: 8MP (1 fps–25 fps) Sub Stream: D1 (1 fps–25/30 fps) Third Stream: 720P (1 fps–25/30 fps) 3 Streams CBR/VBR |
|
Video Bit Rate |
H.264: 3 Kbps–20480 Kbps |
|
H.265: 3 Kbps–20480 Kbps |
|
|
Day/Night |
Color/B/W |
|
BLC |
Yes |
|
HLC WDR White Balance Gain Control Noise Reduction Motion Detection |
Yes 140 dB Yes Auto/Manual 3D NR OFF/ON (4 Areas, rectangular) |
|
Image Rotation |
0°/90°/180°/270° |
|
Mirror |
Yes |
|
Privacy Masking |
4 Areas |
|
Audio |
|
|
Built-in Mic Built-in Speaker Two-way talk Audio Compression |
Yes Yes Yes G.711a; G.711Mu; G.726; G.726ASF |
|
Alarm |
|
|
Arming/Disarming |
NA |
|
Sound Alarm Light Alarm Alarm Event |
Yes NA Disconnection; IP Conflict; No SD Card; Capacity Warning; SD Card Error |
|
Network |
|
|
Network SDK and API |
RJ-45 (10/100 Base-T) Yes |
|
Network Protocol |
TCP/IP;UDP;HTTP;IGMP;ICMP;DHCP;RTP/RTSP;DNS;DDNS;FTP;NTP;PPPOE;UPNP;SMTP |
|
Interoperability |
ONVIF; CGI; P2P |
|
User/Host |
20 (Total bandwidth: 80 M) |
|
Storage Browser |
FTP; Micro SD card (support max. 256 G/FAT32) IE: IE8 and later; Chrome; Firefox |
|
Management Software |
PC Software(HSS), APP(HMSS) |
|
Mobile Client |
IOS; Android |
|
Port |
|
|
Audio Input Audio Output Alarm Input Alarm Output |
1 channel (optional) 1 channel (optional) 1 channel (optional) 1 channel (optional) |
|
Power |
|
|
Power Supply |
12V DC (±30%)/PoE (802.3af) |
|
Power Consumption |
Basic: 2.5 W; Max: 5.2W |
|
Environment |
|
|
Operating Conditions Storage Conditions Protection Grade |
–30°C to +60°C (–22°F to +140°F)/Less than 95% RH –40°C to +60°C (–40°F to +140°F) IP67 |
|
Structure |
|
|
Casing Dimensions |
Metal 224 mm × 77mm × 76mm |
|
Net Weight |
760g |
