DAHUA

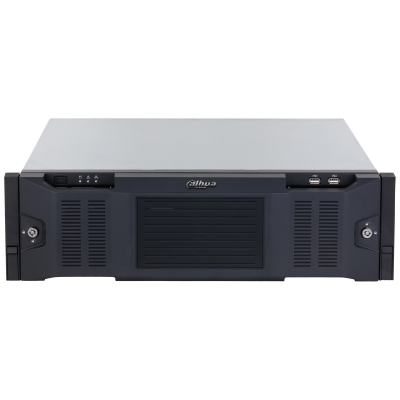

DAHUA EVS3224S-SMR/400 Dahua 256CH 24 3U Embedded Video Storage

Name: DAHUA EVS3224S-SMR/400 Dahua 256CH 24 3U Embedded Video Storage
Brand: DAHUA
Price: 100000.00 USD
Availability: InStock

In stock

SKU: EVS3224S-SMR/400

$100,000.00

Product variants

Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.

Ask Our Experts

Text Chat | Email |04407548784511

Order and Pricing Information for Surveillance Products

Minimum order amount: Orders must exceed $1000 or equivalent.
The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
Shipping costs: Shipping costs will be calculated separately and added to the total order value.
Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
Technical support: As authorized distributors, we provide official technical support.
Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.

Quality Certifications:

EVS3224S-SMR/400

Dahua 256CH 24 3U Embedded Video Storage

> 64-bit High-performance multi-core processor

> Max 256-ch IP camera inputs

> Max 768 Mbps incoming/recording/forwarding bandwidth

> 24 bays, SMR, Hot-Swap

> Supports RAID 5

> Supports video stream/picture direct storage mode

> Supports N+M cluster

> Supports Automatic Network Replenishment (ANR)

> Modular and drawer-like design

> 1+1 redundant 80PLUS platinum power supply

> Contains 16 x 25 TB SMR enterprise-level HDD

System

Main Processor

64-bit high-performance multi-core processor

Operating System

Embedded Linux OS

Operating Interface

Web (PCAPP)

Controller

Single controller

Cache

8 GB by default (extendable to 16 GB)

AI Applications

AI by Camera

Face detection, face recognition; IVS (tripwire and intrusion); video metadata (human, vehicle, non-motor vehicle); vehicle recognition; perimeter protection; AcuPick (available when connected to DSS)

Cluster

N+M

Audio and Video

Resolution

32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p

Multi-screen Display

Customized display, max. 16-channel PCAPP live view

Third-party Camera Access

ONVIF, RTSP, Sony, Panasonic, Axis, Arecont, Pelco, Canon, Samsung

Network

Network Protocol

HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;P2P;IPv6;FTP;UPnP;SNMP;SMB;NFS

Mobile Phone Access

DMSS

Interoperability

ONVIF (Profile S, T and G); CGI; SDK

Browser

Chrome; PCAPP; IE9 or higher; Firefox

Network Mode

Multiple-address mode;Load balance;Fault-tolerance;Link aggregation

Recording Playback

Multi-channel Playback

Max. 16-channel playback

Record Mode

Auto record; manual record; search video detection; alarm record

Storage Method

Internal HDD

Backup Method

HDD; peripheral USB storage device

Playback Function

1. Play; Pause; Stop; Fast forward; Fast backward; Reverse play; Frame by frame;

2. Full-screen; Backup (clip and file); Snapshot; Digital zoom; Audio on and off

Storage

Video Direct Storage (Private Protocol)

Incoming: 256-channel (bandwidth: 768 Mbps)

Recording: 256-channel (bandwidth: 768 Mbps)

Outgoing: 256-channel (bandwidth: 768 Mbps)

Playback: 32-channel (bandwidth: 64 Mbps)

Video Direct Storage (Onvif)

Incoming: 256-channel (bandwidth: 768 Mbps)

Recording: 256-channel (bandwidth: 768 Mbps)

Outgoing: 256-channel (bandwidth: 768 Mbps)

Playback: 32-channel (bandwidth: 64 Mbps)

Video Direct Storage (Auto Register)

Incoming: 256-channel (bandwidth: 768 Mbps)

Recording: 256-channel (bandwidth: 768 Mbps)

Outgoing: 256-channel (bandwidth: 768 Mbps)

Playback: 32-channel (bandwidth: 64 Mbps)

Picture Direct Storage

Incoming: 100-channel (550 KB/picture）

Recording: 100-channel (550 KB/picture）

Outgoing: 100-channel (550 KB/picture）

Playback: 20-channel (550 KB/picture）

Disk Group

Yes

RAID

RAID5

Record Management

Supports record control (continuous, event-based, scheduled, scheduled & event-based).

Disk Quota

Time quota mode; space quota mode

Alarm

General Alarm

Motion detect; tampering; IPC external alarm

Anomaly Alarm

Offline; no available disks; disk health exception; storage error; low space; storage pool exception; RAID exception; abnormal quota; video frame loss; IP conflict; MAC conflict; abnormal system disk; account lock; security exception; fan malfunction; power alarm; temperature alarm; share service

Alarm Linkage

Record; snapshot (full image); alarm uploading; remote device alarm output; camera audio; buzzer; log; preset; email, smart tracking and warning light.

Disarming alarm linkage action by period or one-click sync disarm configuration with channels

Port

Disk Interface

24 slots,

SATA

Max.25 TB/HDD

hot swapping

SMR

recommend enterprise-grade HDD

RS-232

1 port

USB
