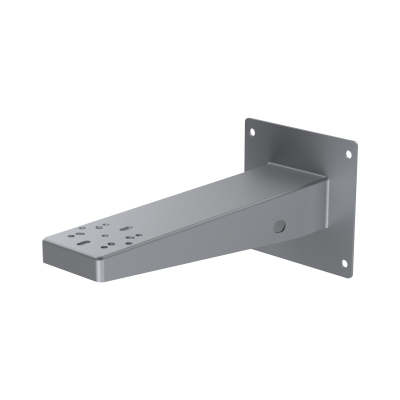

Dahua PFB717WA-S1 Anti-corrosion Wall Mount Bracket
Couldn't load pickup availability
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
![]() |
![]() |
Ask Our Experts
|
Please note the following important details when ordering surveillance products from CCTV-MALL: |
Quality Certifications:![]() |
Dahua PFB717WA-S1 Network Camera
PFB717WA-S1 is a Network Camera for professional security projects, retail installations, and B2B deployment.
|
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
SUS 304 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
331 mm × 150 mm × 150 mm (13.03" × 5.91" × 5.91") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
Silver Grey |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
1.3 kg (2.87 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
1.4 kg (3.09 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Load Bearing |
10 kg (22.05 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Wall mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Applicable Model |
DH-IPC-HFEXXXXS Series |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
163 mm × 163 mm × 343 mm (6.42" × 6.42" × 13.50") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–30 °C to +70 °C (–22 °F to +158 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
<95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Anti-corrosion Level |
Moderate Protection *The products feature high-grade anti-corrosion protection, making them well-suited for environments with standard corrosion resistance requirements. They perform reliably from 2 km (1.24 mi) and above in coastal areas and in locations prone to acid rain exposure. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
