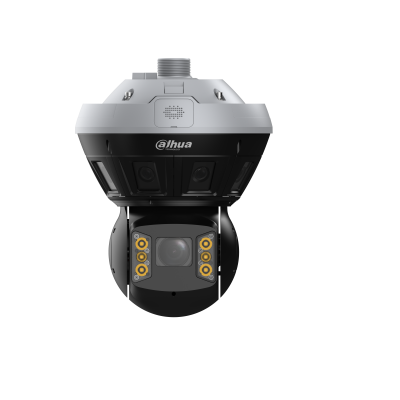

Dahua PSDW81652S-A360-D440-ATC 16 MP Multi-Sensor 360 Panoramic PTZ Anti-corrosion Mini Hubble WizMind Network Camera
Regular price
$10,000.00
Couldn't load pickup availability
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
 |
 |
Ask Our Experts
|
Please note the following important details when ordering surveillance products from CCTV-MALL: |
Quality Certifications: |
Dahua PSDW81652S-A360-D440-ATC 16MP Multi‑Sensor 360° Panoramic PTZ Anti‑corrosion Mini Hubble WizMind Network Camera – 40x Zoom, AR Panorama, GIS
Ultimate 360° Panoramic PTZ – Unmatched Coverage & Intelligent Tracking
- 16MP Panoramic Channel: 8 × 1/1.8" CMOS sensors deliver seamless 360° horizontal and 103° vertical FOV at 8192×1800 resolution. Ultra‑bright F1.0 aperture (0.0005 lux color).
- 4MP PTZ Channel with 40x Optical Zoom: 5.2‑210mm motorized zoom (F1.6‑F5.0). Incredible telephoto DORI: detection up to 2,648m (8,688 ft), recognition up to 530m.
- Xinghan Vision Models – Crowd Map: Enhances crowd statistics accuracy by day/night and in rain. Supports global/area crowd density, people counting, and crowd status alarms.
- Smart Tracking & AR Panorama: PTZ automatically tracks moving targets; overlay AR tags (text, icons, real-time data) on panoramic view for enhanced situational awareness.
- GIS Gyroscope Image Stabilization & Optical Defog: Eliminates vibration‑induced blur; optical defog ensures clear images in haze, fog, or rain.
- Built‑in Dual Mic & Dual Speaker: Secure real‑time two‑way talk with high‑power audio alarm broadcast.
- Professional Anti‑corrosion (NEMA 4X Optional): IP67 weatherproof, IK10 vandal‑resistant, anti‑corrosion coating. Wide temperature range -40°C to +70°C (–40°F to +158°F).
- Flexible Power Options: 36 VDC (±50%) or PoE++ (802.3bt) with dual power backup.
Camera Specification
| Image Sensor | Ch1 (Panoramic): 8 × 1/1.8" CMOS Ch2 (PTZ): 1/1.8" CMOS |
|---|---|
| Max. Resolution | Ch1: 8192 × 1800 (16MP) Ch2: 2688 × 1520 (4MP) |
| ROM / RAM | Ch1: 8 GB / 4 GB Ch2: 4 GB / 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination |
Ch1: 0.0005 lux @ F1.0 (Color); 0.0001 lux (B/W) Ch2: 0.001 lux @ F1.6 (Color); 0.0001 lux (B/W); 0 lux (illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance / Type (PTZ) | IR up to 150 m, warm light up to 100 m (6 multi‑core IR+warm LEDs); Zoomprio control |
| Angle Adjustment (PTZ) | Pan: 0°–360° endless; Tilt: -10° to 180° (auto flip 180°) |
Lens & DORI Optics
| Lens Type | Ch1: Fixed-focal (2.8mm, F1.0) – 360° panoramic Ch2: Motorized vari-focal (5.2 mm–210 mm) – 40x optical zoom |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Field of View |
Ch1: H: 360°, V: 103° Ch2: H: 60.8°–2.8°, V: 35.9°–1.7°, D: 67.7°–3.3° |
|||||||||||||||
| Close Focus Distance | Ch1: 1.4 m (4.59 ft) Ch2: 0.5 m (1.64 ft) |
|||||||||||||||
| DORI Distance |
*DORI standard (EN-62676-4). For intelligent function distances, refer to project design tool.
|
Elite Intelligence (WizMind)
Video & Audio Specifications
| AI Functions (Panoramic Channel) | Perimeter protection (tripwire/intrusion/parking), crowd map (large‑scale AI models), vehicle density, boat detection |
|---|---|
| AI Functions (PTZ Channel) | Perimeter protection (tripwire/intrusion/parking/virtual fence/fast moving/abandoned/missing/loitering/gathering), video metadata, face detection (6 attributes + 8 expressions) |
| Vehicle Density (Panoramic) | Vehicle density, parking upper limit, traffic congestion, vehicle status alarm |
| Crowd Distribution Map (Panoramic) | Global crowd density, area crowd density, people counting, crowd status alarm |
| Video Metadata (PTZ) | Motor vehicle (6 attributes), non‑motor vehicle (6 attributes), face (6 attributes), human body (8 attributes) |
| Smart Search & AcuPick | Works with Smart NVR for refined intelligent search and event extraction. |
PTZ Specifications
| Video Compression / Smart Codec | H.265; H.264; H.264H; H.264B; MJPEG (sub stream) | Smart H.265+ / Smart H.264+ |
|---|---|
| Streaming Capability | 3 streams per channel |
| Video Frame Rate |
Ch1: Main 8192×1800 @ 25/30 fps; Sub 2048×452; Third 3840×832 Ch2: Main 4MP @ 25/30 fps; Sub D1; Third 1080p |
| Bit Rate Control / Range | VBR, CBR | Ch1: H.264 96–32768 kbps, H.265 38–25692 kbps; Ch2: H.264 32–16384 kbps, H.265 12–11008 kbps |
| WDR & Image Enhancements |
Ch1: DWDR Ch2: 120 dB True WDR; BLC; HLC; 3D NR; ROI (8 areas); Defog (optical); GIS |
| Special Features | AR Panorama (overlay tags), Gyroscope Image Stabilization (GIS), Optical Defog, Privacy Masking (panoramic: 4 rectangles; PTZ: 24 polygons per preset) |
| Audio Features |
Built-in Dual Mic + Dual Speaker (two‑way talk) Audio Compression: PCM; G.711a; G.711Mu; G.726; G.723 External: 2‑ch terminal input, 1‑ch terminal output |
| Pan/Tilt Range | Pan: 0°–360° endless; Tilt: -10° to 180° (auto flip 180°) |
|---|---|
| Manual Control Speed | Pan: 0–360°/s; Tilt: 0–150°/s |
| Preset Speed | Pan: 0–360°/s; Tilt: 0–150°/s |
| Presets / Tour / Pattern / Scan | 300 presets; 8 tours (up to 32 presets each); 5 patterns; 5 scans |
| Power‑off Memory & Idle Motion | Yes; Tour/Preset/Pattern/Scan |
Physical I/O Interfaces
Power, Climate & Protection
| RS-485 | 1 port (1200–115200 bps) |
|---|---|
| Audio I/O | 2‑ch terminal input, 1‑ch terminal output (in addition to built‑in dual mic & dual speaker) |
| Alarm I/O | 3 alarm inputs (wet contact, 5 mA 3–5 VDC) 2 alarm outputs (dry contact, 1000 mA 30 VDC / 500 mA 50 VAC) |
| Analog Output | 1 channel CVBS (BNC) |
| Power Output | 12 VDC, max 165 mA (peak 700 mA) |
| Alarm Events | Extensive list including panoramic events (crowd density, traffic congestion, parking upper limit) and PTZ events (tripwire, intrusion, face detection, metadata, abandoned object, etc.) |
| Power Supply | 36 VDC (±50%), PoE++ (802.3bt); Dual Power Backup | |
|---|---|---|
| Power Consumption | Basic: 26.4 W (36 VDC) Max (WDR + AI + speaker + heater + LED + PTZ operation): 67.8 W (36 VDC) |
|
| Operating Temperature / Humidity | –40 °C to +70 °C (–40 °F to +158 °F) | ≤95% RH | |
| Storage Temperature / Humidity | –40 °C to +70 °C, ≤95% RH | |
| Protection Ratings | IP67 (weatherproof), IK10 (vandal‑proof), Anti‑corrosion coating | |
| Anti‑corrosion Level | Moderate Protection – NEMA 4X optional (UL 50E). Ideal for coastal areas (≥2 km from sea) and acid rain regions. |
Physical Structure
| Casing Material | Metal + plastic |
|---|---|
| Product Dimensions | Φ280.0 mm × 368.0 mm (Φ11.02" × 14.49") (D × H) |
| Net Weight / Gross Weight | 8.8 kg (19.40 lb) / 12.2 kg (26.90 lb) |
