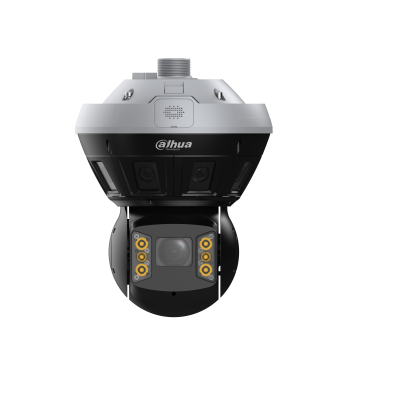

Dahua PSDW8852S-A180-D440-ATC 8 MP Multi-Sensor 180° Panoramic PTZ Anti-corrosion Mini Hubble WizMind Network Camera
Regular price
$10,000.00
Couldn't load pickup availability
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
 |
 |
Ask Our Experts
|
Please note the following important details when ordering surveillance products from CCTV-MALL: |
Quality Certifications: |
Dahua PSDW8852S-A180-D440-ATC 8MP 180° Panoramic + 4MP 40x PTZ Anti-Corrosion WizMind Network Camera
Key Performance Highlights – Panoramic + PTZ Fusion
- Ultra-Wide 180° Panoramic + 40x Tele PTZ: 4× 2MP (1/1.8") sensors for 8MP panoramic channel (4096×1800) + separate 4MP PTZ channel with 5.2~210 mm optical zoom, offering both situational awareness and long-range detail.
- All-Weather Optical & AI Vision: PTZ channel features GIS (Gyroscope Image Stabilization) and optical defog. Crowd Map (Large-Scale AI Models) delivers accurate crowd/vehicle statistics even in rain and low light.
- Smart Tracking & AR Overlay: Automatic tracking of moving targets; AR Panorama technology allows multiple AR tags (location, alarms, etc.) to be superimposed on live view.
- Dual Mic + Speaker & Extreme Reach: Built-in two-way audio for real-time talk-back. PTZ provides 150 m IR + 100 m warm light illumination. Detect range up to 2,648 m (8,688 ft) on tele end.
- Industrial-Grade Protection: IP67 / IK10 housing, anti-corrosion coating (meets NEMA 4X optional). Operates from –40 °C to +70 °C. Powered by 36 VDC (±50%) or PoE++ (802.3bt).
- Elastic Intelligence: Panoramic channel: vehicle density, boat detection, crowd map. PTZ channel: face detection (6 attributes/8 expressions), video metadata (vehicles + humans), perimeter IVS, and cross-channel coordination.
Camera Specification – Dual Channel
| Image Sensor | Channel 1 (Panoramic): 1/1.8" CMOS (×4 sensors) Channel 2 (PTZ): 1/1.8" CMOS |
|---|---|
| Max. Resolution | Panoramic: 4096 (H) × 1800 (V) – 8MP Ultra-HD PTZ: 2688 (H) × 1520 (V) – 4MP |
| ROM / RAM | Panoramic: 8 GB ROM / 4 GB RAM | PTZ: 4 GB ROM / 2 GB RAM (Independent dual AI architectures) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s – 1/100,000 s |
| Min. Illumination |
Panoramic: 0.0005 lux@F1.0 (Color, 30 IRE); 0.0001 lux@F1.0 (B/W) PTZ: 0.001 lux@F1.6 (Color); 0.0001 lux@F1.6 (B/W); 0 lux (IR/Warm light on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Panoramic: N/A PTZ: Up to 150 m (IR) / 100 m (Warm light) – 6× multi-core (IR+Warm) LEDs |
| Illuminator Control | Auto; Manual; Zoomprio |
| Angle Adjustment (PTZ) | Pan: 0°–360° endless; Tilt: –10°–180°, auto flip 180°; Built-in gradienter |
Lens & DORI Optics
| Lens Type / Mount | Panoramic: Fixed-focal (M16 mount, 2.8 mm, F1.0) PTZ: Vari-focal (module mount, 5.2–210 mm, F1.6–F5.0) |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Field of View | Panoramic: H: 180°; V: 103° PTZ: H: 60.8°–2.8°; V: 35.9°–1.7°; D: 67.7°–3.3° |
|||||||||||||||
| Close Focus Distance | Panoramic: 1.4 m (4.59 ft) PTZ: 0.5 m (1.64 ft) |
|||||||||||||||
| DORI Distance (EN-62676-4) |
|
Elite Intelligence (WizMind – Dual Channel)
| Panoramic Channel AI |
Perimeter protection: tripwire, intrusion, parking detection Crowd Map (Large-Scale AI Models): global crowd density, area crowd density, people counting, crowd status Vehicle density: parking upper limit, traffic congestion, vehicle status alarm Boat detection |
|---|---|
| PTZ Channel AI |
IVS perimeter: tripwire, intrusion, parking, virtual fence, fast moving, abandoned/missing object, crowd gathering, loitering Face detection: 6 attributes / 8 expressions; snapshot optimization; face angle filter Video metadata: motor vehicle (6 attributes), non-motor vehicle (6 attributes), face (6 attributes), human body (8 attributes) |
| Smart Search & Coordination | Works with Smart NVR for refined intelligent search, event extraction. Panoramic + PTZ linkage (auto tracking of targets detected by panoramic). |
Video & Audio Specifications
| Compression / Smart Codec | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) | Smart H.264+ / Smart H.265+ |
|---|---|
| Frame Rate (Max per stream) |
Panoramic: Main: 4096×1800@30fps; Sub: 1024×452@30fps; Third: 1920×832@30fps PTZ: Main: 2688×1520@30fps; Sub: 704×480@30fps; Third: 1920×1080@30fps *Total encoding capacity shared across streams. |
| Streaming Capability | 3 streams per channel (independent configuration) |
| Bit Rate Control / Bit Rate | VBR/CBR. Panoramic H.264: 64–16384 kbps; H.265: 25–15831 kbps. PTZ H.264: 32–16384 kbps; H.265: 12–11008 kbps. |
| WDR / Image Enhancements | Both channels: 120 dB True WDR | BLC, HLC, 3D NR, ROI (Panoramic 4 areas, PTZ 8 areas), Defog (PTZ optical defog only), EIS (PTZ: GIS gyro stabilization) |
| Privacy Masking | Panoramic: 4 rectangular areas; PTZ: 24 areas (8 per preset, polygon shape) |
| Audio | Built-in dual mic + speaker | Audio compression: PCM, G.711a, G.711Mu, G.726, G.723 | 2 audio inputs (terminal), 1 output |
Network, Storage & Cybersecurity
| Network Port | RJ-45 (10/100/1000 Base-T) – Gigabit |
|---|---|
| Protocols & API | IPv4/v6, HTTP, TCP, UDP, RTSP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, SNMP, P2P, etc. | SDK, CGI, ONVIF (Profile S/G/T) |
| Cybersecurity | WSSE, account lockout, trusted execution/boot/upgrade, X.509 cert, 802.1x, HTTPS, IP/MAC filtering, security logs, syslog |
| Local Storage & Management | Micro SD card (max 1 TB); FTP/SFTP/NAS/SMB; DSS Pro management |
| User / Bandwidth | 20 users (total bandwidth 400 Mbps) |
Physical I/O & PTZ Control
| Alarm I/O | 3 inputs (wet contact, 5mA 3–5VDC) + 2 outputs (dry, 1000mA 30VDC / 500mA 50VAC) |
|---|---|
| Audio I/O | 2 line-in (terminal) + 1 line-out (terminal) |
| RS-485 / Analog Output | 1 RS-485 (1200–115200 bps) + 1 CVBS (BNC) |
| Power Output | 12 VDC output, max 165 mA (peak 700 mA) |
| PTZ Functions | 300 presets, 8 tours (up to 32 presets each), 5 patterns, 5 scans, idle motion (tour/preset/pattern/scan), power-off memory, manual speed: pan 0–360°/s, tilt 0–150°/s |
Power, Environment & Protection
| Power Supply | 36 VDC (±50%) independent port OR PoE++ (802.3bt) |
|---|---|
| Power Consumption |
Basic: 26.4 W (36 VDC) Max (full load + heater + PTZ + LED): 67.8 W (36 VDC) |
| Operating Temperature / Humidity | –40 °C to +70 °C (–40 °F to +158 °F) | ≤95% RH non-condensing |
| Protection Ratings | IP67 (weatherproof), IK10 (vandal resistant), Anti-corrosion coating (standard moderate protection – suitable for coastal areas >2km and acid rain environments; optional UL 50E NEMA Type 4X) |
| Certifications | CE-LVD (EN62368-1), CE-EMC, UL 50E NEMA 4X (optional) |
Physical Structure
| Casing Material | Metal + plastic (anti-corrosion coated) |
|---|---|
| Product Dimensions | Φ280.0 mm × 368.0 mm (Φ11.02" × 14.49") |
| Net Weight / Gross Weight | 8.8 kg (19.40 lb) / 12.2 kg (26.90 lb) |
| AR Functionality | Yes – AR Panorama technology, supports overlay of various AR tags (alarms, location markers, etc.) on panoramic view |
