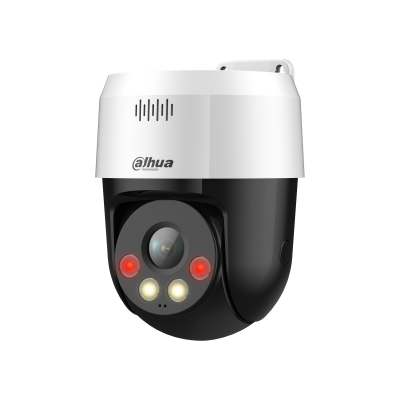

DAHUA SD2A300NB-GNY-A-PV 3MP Smart Dual Light Network PT Camera

In stock
SKU: SD2A300NB-GNY-A-PV
Regular price $1,000.00

Estimated delivery date: 2024-06-16

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
  • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



SD2A300NB-GNY-A-PV new-products

3MP Smart Dual Light Network PT Camera

> 1/2.8" 3Megapixel CMOS.

> Max. 25/30 fps@3MP.

> Human/vehicle detection.

> Tripwire, intrusion.

> H.265 encoding.

> POE.

> Two-way talk.

> Sound and light alarm.

> IR and white light, three night view modes.

> IP66.




********

Camera

Image Sensor

1/2.8" CMOS

Pixel

3 MP

Max. Resolution

2304 (H) × 1296 (V)

ROM

128 MB

RAM

128 MB

Electronic Shutter Speed

1 s–1/100,000 s

Scanning System

Progressive

Min. Illumination

0.05 lux@F2.0 (Color, 30 IRE);
0.005 lux@F2.0 (B/W, 30 IRE)

Illumination Distance

30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR);

Illuminator On/Off Control

Manual; auto; off

Illuminator Number

2 (IR light); 2 (warm light)

Lens

Focal Length

4.0 mm

Max. Aperture

F2.0

Field of View

H: 86.8°; V: 47.1°; D: 102.2°

Close Focus Distance

0.6 m (1.97 ft)

Iris Control

Fixed

DORI Distance

Detect

Observe

Recognize

Identify

53.6 m (175.85 ft)

21.4 m (70.21 ft)

10.7 m

(35.10 ft)

5.4 m

(17.72 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 345°;
Tilt: 0° to +80°

Manual Control Speed

Pan: 0.1°–74°/s;
Tilt: 0.1°–36.4°/s

Preset Speed

Pan: 0.1°–62°/s;
Tilt: 0.1°–36.3°/s

Preset

300

Power-off Memory

Yes

Idle Motion

Preset

Smart Event

IVS

Tripwire; intrusion

Human Detection

Yes

Intelligence

SMD

SMD3.0

Active Deterrence

Light Warning

Warm light warning;
Flash duration: 5 s–30 s;
Flash frequency: high, medium, low

Sound Warning

Offers 1 sound alarm and 10 custom sound alarms can be imported;
Sound can be set from 0%–100%;
Play times can be set from 1-10.

Video

Video Compression

H.264H; H.264B; Smart H.265+; H.265; Smart H.264+; H.264M; MJPEG (Sub Stream 1)

Streaming Capability

2 streams

Resolution

3M (2304 × 1296); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 3M/1080p/1.3M/720p@(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@(1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 88 kbps-8,192 kbps
H265: 35 kbps-8,192 kbps

Day/Night

Auto (ICR); Color/B/W

BLC

Yes

WDR

DWDR

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Defog

Electronic

Image Rotation

180°

S/N Ratio

≥55 dB

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; AAC

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

UDP; FTP; RTMP; IPv6; IPv4; IP Filter; DNS; RTCP; HTTP; NTP; SSL; DHCP; RTP; SMTP; HTTPS; TCP/IP; RTSP; DDNS; ARP

Interoperability

RTMP; CGI; SDK; ONVIF (Profile S & Profile T); P2P

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

Micro SD card (256 GB); FTP

Browser

IE: IE 7 and later versions; Chrome; Firefox; Safari

Management Software

Player; Smart Player; DMSS; ConfigTool; NVR; Smart PSS

Mobile Client

iOS; Android

Certification

Certifications

CE: EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000-
3-2/EN55024/EN55035/EN62368-1
FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014

Port

Audio Input

1 channel (built-in mic)

Audio Output

1 channel (built-in speaker)

Alarm Linkage

Capture; preset; recording; audio; sending email

Alarm Event

Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Power

Power Supply

12 VDC/1.5 A ± 10% PoE (802.3af)

Power Consumption

Basic: 3.5 W;
Max: 9 W (illuminator)

Environment

Operating Temperature

–30 °C to +55 °C (–22 °F to +131 °F)

Operating Humidity

≤95%

Protection

Waterproof and Dustproof; TVS 2000 V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

140.5 mm × Φ111.0 mm (5.53" × Φ4.37")

Net Weight

0.5 kg (1.10 lb)

Gross Weight

1 kg (2.20 lb)

*******
