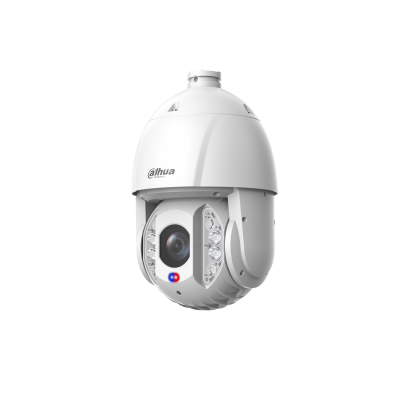

Dahua SD6E825MA-HNR-A-PV1 8MP 25x Smart Dual Illumination Active Deterrence Network PTZ Camera
Regular price
$10,000.00
Couldn't load pickup availability
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
 |
 |
Ask Our Experts
|
Please note the following important details when ordering surveillance products from CCTV-MALL: |
Quality Certifications: |
Dahua SD6E825MA-HNR-A-PV1 8MP 25x Smart Dual Light Active Deterrence PTZ Camera – Xinghan AI, Construction Monitoring
Key Performance Highlights – 8MP + Active Deterrence + Construction Safety AI
- 8MP Ultra-HD & 25× Optical Zoom: 5.4–135 mm motorized zoom lens with 1/1.8" CMOS – exceptional clarity from wide to tele.
- Smart Dual Light for Night: 250 m IR + 100 m warm light – expansive night visibility with intelligent illumination control.
- Active Deterrence – Red/Blue Lights & Siren: Built-in warning lights (adjustable flash) + 11 voice alarms (plus 10 custom imports) for real-time threat intervention.
- Xinghan Large-Scale AI Models: Comprehensive enhancement of target detection and imaging. Includes Construction Monitoring – detects helmet colors (6 colors), work uniform compliance (up to 5 libraries/1000 images), mask/shoe covers, lone worker, and post abandonment.
- Advanced AI & AcuPick: Video metadata (10 vehicle/8 non-motor/6 face/8 body attributes), face detection (6 attributes/8 expressions), SMD 4.0, IVS perimeter protection, WizTracking, Auto Patrol.
- Built-in Dual Mic & Speaker: Secure real-time two-way talk; speaker mutually exclusive with audio line out.
- High-Speed PTZ & Rugged Design: Pan 0–260°/s, tilt 0–140°/s manual; preset speed 300°/s (pan) / 200°/s (tilt). IP67/IK10, TVS 6000V surge protection, –40°C to +70°C operation.
- DORI Distance: Tele end detect range up to 2,700 m (8,858 ft) – long-range identification capability.
Camera Specification
| Image Sensor | 1/1.8" CMOS |
|---|---|
| Max. Resolution | 8MP – 3840 (H) × 2160 (V) – 4K Ultra-HD |
| ROM / RAM | 4 GB / 2 GB |
| Electronic Shutter Speed | 1 s – 1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on) |
| S/N Ratio | ≥55 dB |
| Illumination Distance & Type |
Smart Dual Light: IR 250 m (820.21 ft) + Warm light 100 m (328.08 ft) Illuminator count: 6 (Dual light fusion) |
| Illuminator Control | Zoom Prio; Manual; Auto; Off |
Lens & DORI Optics (25× Optical Zoom)
| Focal Length / Aperture | 5.4 mm – 135 mm (25× zoom) | F1.6–F4.0 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Field of View | H: 61.6°–3.6°; V: 35.7°–2.0°; D: 66.6°–4.0° | |||||||||||||||
| Focus Control / Iris Control | Auto; Semi-auto; Manual | Auto/Manual/Iris Prio | |||||||||||||||
| Close Focus Distance | 0.5 m – 7 m (1.64 ft – 22.97 ft) | |||||||||||||||
| DORI Distance (EN-62676-4) |
|
Elite Intelligence – Xinghan Large-Scale AI Models
| Video Metadata | Motor vehicle (10 attributes), non-motor vehicle (8 attributes), face (6 attributes), human body (8 attributes). Supports snapshot optimization and high-quality face upload. | |||
|---|---|---|---|---|
| IVS Perimeter Protection | Tripwire, intrusion, crossing fence, loitering, abandoned/missing object, fast moving, parking detection, people gathering, human alarm classification, linkage tracking. | |||
| Face Detection | 6 attributes + 8 expressions, face cutout as one-inch photo, real-time/quality priority/optimization snapshot strategies. | Construction Monitoring (PPE) |
Helmet detection: 6 colors (red, orange, yellow, blue, white, black) – alarm on no helmet or wrong color. Work uniform compliance: Up to 5 sample libraries (1000 images total, 1080p JPG). Alarm when similarity below threshold. Additional attributes: Uniform color, mask wearing, shoe covers. Lone worker & post abandonment: Alarm when only one person in zone or no person detected (e.g., worker left post). |
|
| Smart Tracking / SMD / AcuPick | WizTracking; SMD 4.0; AcuPick for fast human/vehicle search through live/recorded video. | |||
| Auto Patrol | After IVS event, PTZ automatically patrols predefined key points to detect unknown threats in real time. | |||
| Active Deterrence – Light & Sound |
Light Warning: Red and blue lights, flash duration 5–30 s, frequency high/medium/low. Sound Warning: 11 built-in voice alarms + 10 custom imports, volume 0–100 adjustable, playback frequency 1–10 times (requires external speaker). |
Video & Audio Specifications
| Compression / Smart Codec | Smart H.265+; H.265; Smart H.264+; H.264; H.264B; H.264H; MJPEG (sub stream 1 only) |
|---|---|
| Streaming Capability | 3 streams |
| Resolution Options | 8M (3840×2160), 4M, 3M, 1080p, 960p, 720p, D1, VGA, CIF |
| Video Frame Rate | Main stream: 8M/4M/1080p/1.3M/720p @ 1–25/30 fps Sub stream 1: D1/VGA/CIF @ 1–25/30 fps Sub stream 2: 1080p/1.3M/720p @ 1–25/30 fps |
| Bit Rate Control / Bit Rate | VBR/CBR. H.264: 128–16384 kbps; H.265: 51–10240 kbps |
| WDR / Image Enhancements | 120 dB True WDR, BLC, HLC, 2D/3D NR, ROI, Electronic Defog, EIS, Digital Zoom (16×), Image Rotation 180° |
| Privacy Masking | Up to 24 areas (max 8 in same view), multiple colors and mosaic available |
| Audio | Built-in dual mic + speaker | Audio compression: PCM, G.711a, G.711Mu, G.726, MPEG2-Layer2, G722.1, G729, G723 Speaker mutually exclusive with audio line out |
PTZ & Mechanical Specifications
| Pan/Tilt Range | Pan: 0°–360° endless; Tilt: –20°–+90°, auto flip 180° |
|---|---|
| Manual Control Speed | Pan: 0–260°/s; Tilt: 0–140°/s |
| Preset Speed | Pan: 300°/s; Tilt: 200°/s |
| Preset / Tour / Pattern / Scan | 300 presets, 8 tours, 5 patterns, 5 scans |
| Idle Motion / Power-off Memory | Preset/Pattern/Tour/Scan; Yes |
| PTZ Protocol | DH-SD; Pelco-P/D (auto recognition) |
Network, Storage & Cybersecurity
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| Network Protocols | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; 802.1x; SSL; QoS; FTP; UPnP; SNMP; PPPoE; RTMP; Bonjour; SMB; NFS |
| Interoperability | ONVIF (Profile S/G/T); CGI; SDK |
| Local Storage | Micro SD card (max 512 GB); FTP/SFTP; NAS |
| User/Host / Bandwidth | 20 users (total bandwidth 64 Mbps) |
| Cybersecurity | WSSE, account lockout, HTTPS, IP/MAC filtering, security logs, trusted upgrade/boot |
| Management Software / Browser | DMSS; DSS Pro; IE9+, Chrome 41+, Firefox 50+, Safari 10+ |
I/O Interfaces & Alarm
| Analog Output | Not specified |
|---|---|
| RS-485 | 1 (baud rate 1200–9600 bps) |
| Audio I/O | 1 audio input (LINE IN, bare wire) + 1 audio output (LINE OUT, bare wire; mutually exclusive with built-in speaker) |
| Alarm I/O | 2 inputs (0–5 VDC) + 1 output (dry contact) |
| Alarm Linkage / Events | Capture, recording, email, preset, tour, pattern, alarm output, audio; events include motion/tampering, audio detection, network/IP conflict, SD card status, etc. |
Power, Environment & Protection
| Power Supply | 24 VDC; 2.5 A ±25% OR PoE+ (802.3at) | |||
|---|---|---|---|---|
| Power Consumption | Basic: 14 W; Max (WDR + IR on + PTZ + alarm): 21 W (24 VDC) | |||
| Operating Temperature / Humidity | –40 °C to +70 °C (–40 °F to +158 °F) | ≤95% RH | |||
| Protection Ratings | IP67 (weatherproof), IK10 (vandal resistant), TVS 6000V lightning/surge/voltage transient protection | |||
| Anti-corrosion Level | Not specified (standard protection) | Certifications | CE: EN55035, EN IEC61000-3-2, EN55032, EN60950, EN62368-1 |
Physical Structure
| Casing Material | Metal + plastic |
|---|---|
| Product Dimensions | 208 mm × 202 mm × 325 mm (8.19" × 7.95" × 12.8") (L×W×H) |
| Net Weight / Gross Weight | 4.45 kg (9.81 lb) / 6.62 kg (14.59 lb) |
| Power Adapter | Included |
