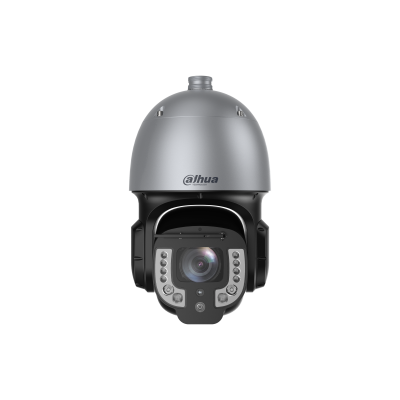

Dahua SD8X842FA-HNF 8MP 42x Starlight Laser Network PTZ Camera

Name: Dahua SD8X842FA-HNF 8MP 42x Starlight Laser Network PTZ Camera
Brand: Dahua
SKU: SD8X842FA-HNF
Price: 10000.00 USD
Availability: InStock

In stock

SKU: SD8X842FA-HNF

$10,000.00

Product variants

Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.

Ask Our Experts

Text Chat | Email |04407548784511

Order and Pricing Information for Surveillance Products

Minimum order amount: Orders must exceed $1000 or equivalent.
The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
Shipping costs: Shipping costs will be calculated separately and added to the total order value.
Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
Technical support: As authorized distributors, we provide official technical support.
Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.

Quality Certifications:

Dahua SD8X842FA-HNF 8MP 42x Starlight Laser PTZ Camera – 600m Laser, Gyro EIS, Smart Wiper

Key Performance Highlights – Ultimate Long-Range Night Vision & AI

42× Optical Zoom & Triple-Light Fusion: 6–252 mm motorized zoom lens with 600 m laser + 120 m IR + 50 m warm light – unbeatable all-weather visibility from wide to ultra-tele.
Smart Pan-Tilt Correction & Gyro EIS: Achieves 0.05° positioning accuracy for long-term reliability; built-in gyroscope ensures stable video even under vibration.
Starlight Ultra-Low Light & WDR: 1/1.8" CMOS, 0.0005 lux B/W, 120dB True WDR, optical defog – crystal clear imaging in extreme low light and backlight.
Xinghan Large-Scale AI Models: Enhanced target detection and imaging. Supports video metadata (10 vehicle attributes, 8 non-motor, 6 face, 8 body), face recognition (up to 10,000 faces, 6 attributes/8 expressions), AcuPick for rapid target search.
Privacy Protection with Mosaic: Real-time auto-masking of detected faces or human bodies using mosaic for privacy compliance in public scenes.
Rugged & Smart Maintenance: IP67/IK10, TVS 6000V surge protection, smart wiper for automatic lens cleaning, operating temperature –40°C to +70°C.
Extreme DORI Distance: Tele end detect range up to 5,040 m (16,535 ft) – industry-leading long-range identification.

Camera Specification

Image Sensor	1/1.8" CMOS
Max. Resolution	8MP – 3840 (H) × 2160 (V)
ROM / RAM	8 GB / 4 GB
Electronic Shutter Speed	1/1 s – 1/100,000 s
Scanning System	Progressive
Min. Illumination	0.005 lux@F1.4 (Color); 0.0005 lux@F1.4 (B/W); 0 lux (illuminator on)
S/N Ratio	≥ 55 dB
Illumination Distance & Type	Triple-Light: Laser 600 m (1968.50 ft) + IR 120 m (393.70 ft) + Warm light 50 m (164.04 ft) Illuminator count: 8 Laser + 4 IR + 1 Warm light
Illuminator Control	Zoom Prio; Manual; Auto; Off
Wiper	Smart wiper (automatic lens cleaning)

Lens & DORI Optics (42× Optical Zoom)

Focal Length / Aperture

6.0 mm – 252 mm (42× zoom) | F1.4–F4.8

Field of View

H: 66.1°–2.2°; V: 39.0°–1.3°; D: 74.1°–2.5°

Focus Control / Iris Control

Auto; Semi-auto; Manual | Auto/Manual/Iris Prio

Close Focus Distance

0.5 m – 2 m (1.64 ft – 6.56 ft)

DORI Distance (EN-62676-4)

Zoom	Detect	Observe	Recognize	Identify
Wide (6 mm)	120 m (393.70 ft)	47.4 m (155.51 ft)	24 m (78.74 ft)	12 m (39.37 ft)
Tele (252 mm)	5040 m (16535.43 ft)	1990.8 m (6531.50 ft)	1008 m (3307.09 ft)	504 m (1653.54 ft)

Note: Optical detection distances per EN-62676-4; intelligent function distances may vary.

Elite Intelligence (Xinghan Large-Scale AI Models)

Video Metadata	Motor vehicle (10 attributes), non-motor vehicle (8 attributes), face (6 attributes), human body (8 attributes). Supports snapshot optimization and high-quality face upload.
IVS Perimeter Protection	Tripwire, intrusion, crossing fence, loitering, abandoned/missing object, fast moving, parking detection, people gathering, human/vehicle classification, cascaded metadata, linkage tracking, privacy protection.
Face Recognition	5 face databases (up to 10,000 faces), 6 attributes + 8 expressions, face cutout as one-inch photo, batch import, similarity threshold setting.
Smart Tracking	WizTracking – automatic tracking of moving targets.
AcuPick	Deep learning with backend devices for accurate target matching (people/vehicles) and fast search through live/recorded video.
Privacy Protection	Real-time mosaic masking – automatically blocks detected human faces or bodies in public scenes to protect privacy.

Video & Audio Specifications

Compression / Smart Codec	Smart H.265+; H.265; Smart H.264+; H.264; H.264B; H.264H; MJPEG (sub stream 1 only)
Streaming Capability	3 streams
Resolution Options	8M (3840×2160), 4M, 3M, 1080p, 1.3M, 720p, D1, VGA, CIF
Video Frame Rate	Main stream: 8M/4M/1080p/1.3M/720p @ 1–25/30 fps; Sub stream 1: D1/VGA/CIF @ 1–25/30 fps; Sub stream 2: 1080p/1.3M/720p/CIF @ 1–25/30 fps
Bit Rate Control / Bit Rate	VBR/CBR. H.264: 128–16384 kbps; H.265: 51–11776 kbps
WDR / Image Enhancements	120 dB True WDR, BLC, HLC, 2D/3D NR, ROI, Optical Defog, Gyroscope EIS, Digital Zoom (16×), Image Rotation 180°
Privacy Masking	Up to 24 areas (max 8 in same view), selectable color block or mosaic
Audio Compression	PCM; G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1; G729; G723

PTZ & Mechanical Specifications

Pan/Tilt Range	Pan: 0°–360° endless, smart pan-tilt correction; Tilt: –20°–+90°, auto flip 180°, smart pan-tilt correction (0.05° accuracy)
Manual Control Speed	Pan: 0.1–240°/s; Tilt: 0.1–100°/s
Preset Speed	Pan: 240°/s; Tilt: 100°/s
Preset / Tour / Pattern / Scan	300 presets, 8 tours (32 presets each), 5 patterns, 5 scans
Idle Motion / Power-off Memory	Preset/Pattern/Tour/Scan; Yes
PTZ Protocol	DH-SD; Pelco-P/D (auto recognition)

Network, Storage & Cybersecurity

Network Port	RJ-45 (10/100 Base-T)
Network Protocols	HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; 802.1x; SSL; QoS; FTP; UPnP; SNMP; PPPoE; RTMP; Bonjour; NFS
Interoperability	ONVIF (Profile S/G/T); CGI; SDK
Local Storage	Micro SD card (max 512 GB); FTP; NAS
User/Host / Bandwidth	20 users (total bandwidth 64 Mbps)
Cybersecurity	WSSE, account lockout, HTTPS, IP/MAC filtering, security logs, trusted upgrade/boot
Management Software / Browser	DMSS; NVR; DSS Pro; IE9+, Chrome 41+, Firefox 50+, Safari 10+

I/O Interfaces & Alarm

Analog Output	1 channel CVBS (BNC)
RS-485	1 (baud rate 1200–9600 bps)
Audio I/O	1 audio input (LINE IN, bare wire) + 1 audio output (LINE OUT, bare wire)
Alarm I/O	7 inputs (0–5 VDC) + 2 outputs (dry contact)
Alarm Linkage / Events	Capture, preset, tour, pattern, recording, alarm output, email, audio; events include motion/tampering, audio detection, network/IP conflict, SD card status, etc.

Power, Environment & Protection

Power Supply	36 VDC; 2.23 A (±25%) OR PoE (802.3bt)
Power Consumption	Basic: 17 W; Max (illuminator + PTZ + wiper): 41 W
Operating Temperature / Humidity	–40 °C to +70 °C (–40 °F to +158 °F) \| ≤95% RH
Protection Ratings	IP67 (weatherproof), IK10 (vandal resistant), TVS 6000V lightning/surge/voltage transient protection
Anti-corrosion Level	Basic Protection – designed for general use without specific anti-corrosion requirements
Certifications	CE: EN55035, EN IEC61000-3-2, EN55032, EN60950, EN62368-1

Physical Structure

Casing Material	Metal + plastic
Product Dimensions	262 mm × 262 mm × 442 mm (10.31" × 10.31" × 17.40") (L×W×H)
Net Weight / Gross Weight	10.38 kg (22.88 lb) / 13.83 kg (30.49 lb)
Power Adapter	Included
